USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611-0904)

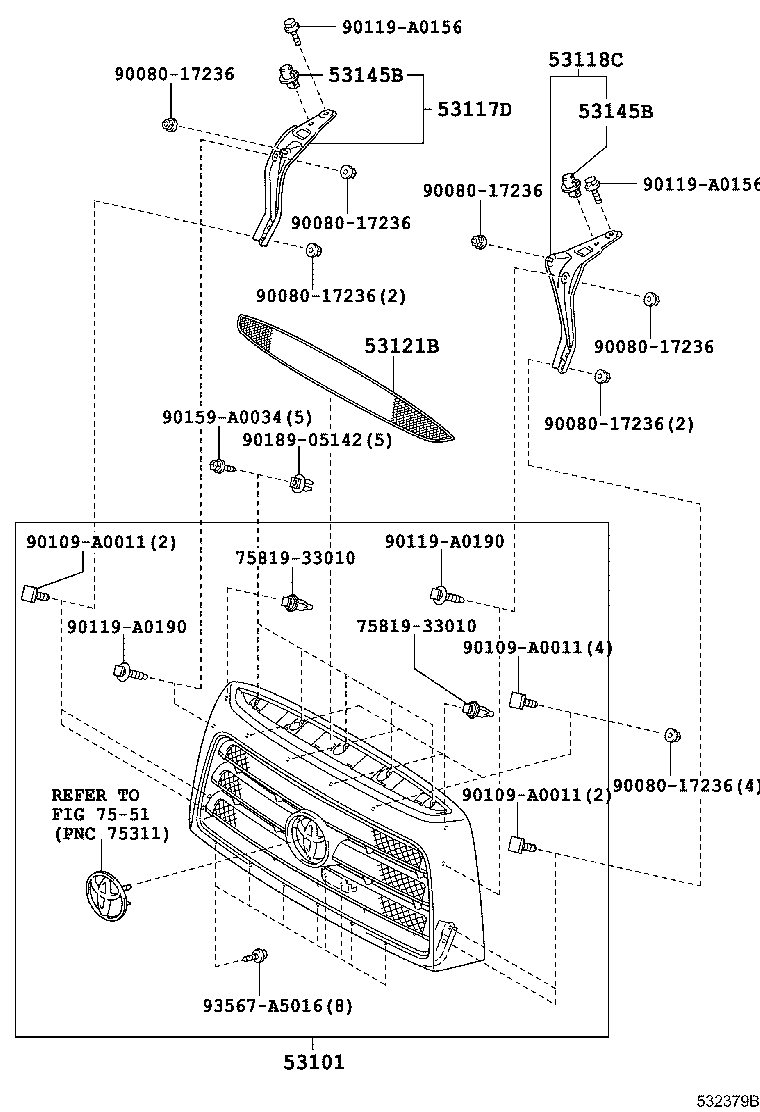

Click highlighted areas on diagram

diagram 53101 53117D 53118C 53121B 53145B 53145B 7551 7581933010 7581933010 9008017236 9008017236 9008017236 9008017236 9008017236 9008017236 9008017236 90109A0011 90109A0011 90109A0011 90119A0156 90119A0156 90119A0190 90119A0190 90159A0034 9018905142 93567A5016
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-0C180

UCK51,56,USK51,56..L

PLATED

 1
53100-0C151

GSK5#,UCK50,51,55,56,USK50,51,55,56..D

NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)

 1
53100-0C170B1

UCK50,55,USK50,55;UCK51,56,USK51,56..S

SPORT APPEARANCE PACKAGE,GRAY ME.,1F9

 1
53100-0C170C0

UCK50,55,USK50,55;UCK51,56,USK51,56..S

SPORT APPEARANCE PACKAGE,BLACK,202

 1
53100-0C151

GSK51,UCK51,52,56,57,USK51,52,56,57..DCB..S

NO PAINT REQ.,C-CAB DX GRADE PACKAGE

 1
53100-0C170J1

UCK50,55,USK50,55;UCK51,56,USK51,56..S

SPORT APPEARANCE PACKAGE,BLUE ME.,8T7

 1
53100-0C170A0

UCK50,55,USK50,55;UCK51,56,USK51,56..S

SPORT APPEARANCE PACKAGE,SUPER WHITE 2,040

 1
53100-0C170A0

USK56..S

ROCK WARRIOR PACKAGE,SUPER WHITE 2,040

 1
53100-0C170J1

USK56..S

ROCK WARRIOR PACKAGE,BLUE ME.,8T7

 1
53100-0C170D0

USK56..S

ROCK WARRIOR PACKAGE,RED,3L5

 1
53100-0C170B1

USK56..S

ROCK WARRIOR PACKAGE,GRAY ME.,1F9

 1
53100-0C170D0

UCK50,55,USK50,55;UCK51,56,USK51,56..S

SPORT APPEARANCE PACKAGE,RED,3L5

 1
53100-0C170C0

USK56..S

ROCK WARRIOR PACKAGE,BLACK,202

 1
53117D - BRACKET, RADIATOR GRILLE, LOWER RH
53117-0C020

GSK5#,UCK5#,USK5#

 1
53118C - BRACKET, RADIATOR GRILLE, LOWER LH
53118-0C020

GSK5#,UCK5#,USK5#

 1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-0C050

GSK5#,UCK5#,USK5#

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-0C020

GSK5#,UCK5#,USK5#

 2
53145-0C010

GSK5#,UCK5#,USK5#

 2
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-0C020

GSK5#,UCK5#,USK5#

 2
53145-0C010

GSK5#,UCK5#,USK5#

 2
Common parts
75819-33010
90080-17236
90109-A0011
90119-A0156
90119-A0190
90159-A0034
90189-05142
93567-A5016
Linked diagrams
7551
