USK56L-CRTLKA (2007)
Toyota Tundra
(0611-1308)

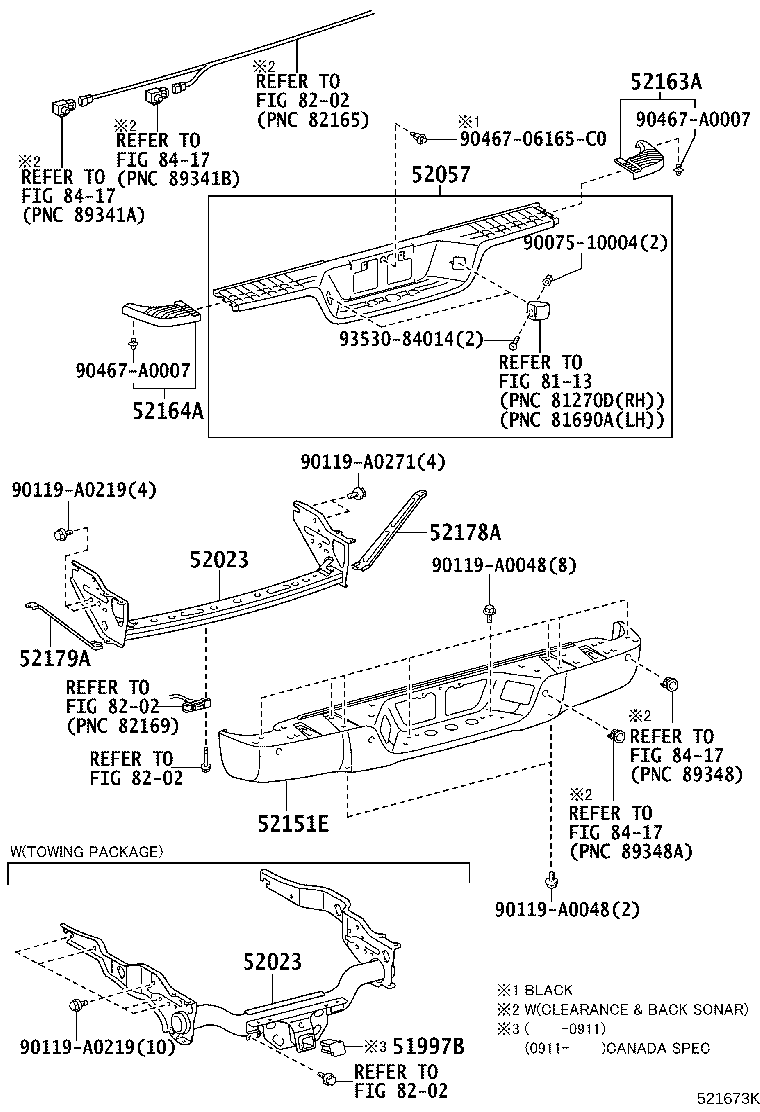

STEEL BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51997B - CAP, RECEIVER HITCH | ||||
| 51997-0C040 |
UCK50,51,55,56,USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-0C130 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52023-0C120 |
GSK5#,UCK50,51,55,56,USK50,51,55,56 |
1 | ||
| 52023-0C130 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 51908-0C040 |
UCK50,51,55,56,USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-0C130 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52023-0C120 |
GSK5#,UCK50,51,55,56,USK50,51,55,56 |
1 | ||
| 52023-0C130 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 51908-0C040 |
UCK50,51,55,56,USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 52057 - PAD SUB-ASSY, REAR BUMPER, LH | ||||
| 52057-0C030 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C030 |
UCK51,56,USK51,56..S;GSK50,UCK50,55,USK50,55 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C040 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52057-0C030 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TOWING PACKAGE-WITH |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE&TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE |
1 | ||
| 52057-0C040 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE&TOWING PACKAGE-WITH |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-0C080 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE) |
1 | ||
| 52151-0C060 |
GSK5#,UCK5#,USK5# PLATED |
1 | ||
| 52151-0C070 |
USK56..S NO PAINT REQ.,ROCK WARRIOR PACKAGE&TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52151-0C090 |
UCK50,51,55,56,USK50,51,55,56 PLATED,TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52151-0C080 |
UCK50,51,55,56,USK50,51,55,56..D NO PAINT REQ.,WITHOUT(SR-5 PACKAGE)&TOWING PACKAGE-WITH |
1 | ||
| 52151-0C081 |
USK56..S NO PAINT REQ.,ROCK WARRIOR PACKAGE |
1 | ||
| 52151-0C060 |
UCK50,51,55,56,USK50,51,55,56 PLATED,TOWING PACKAGE-WITH |
1 | ||
| 52151-0C070 |
USK56..S NO PAINT REQ.,ROCK WARRIOR PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52151-0C090 |
GSK5#,UCK5#,USK5# PLATED,CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52151-0C081 |
USK56..S NO PAINT REQ.,ROCK WARRIOR PACKAGE&TOWING PACKAGE-WITH |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 52178A - REINFORCEMENT, REAR BUMPER BAR CORNER, RH | ||||
| 52178-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 52179A - REINFORCEMENT, REAR BUMPER BAR CORNER, LH | ||||
| 52178-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90075-10004 | ||||
| 90119-A0048 | ||||
| 90119-A0219 | ||||
| 90119-A0271 | ||||
| 90467-06165C0 | ||||
| 90467-A0007 | ||||
| 93530-84014 | ||||
| Linked diagrams | ||||
| 8113 | ||||
| 8202 | ||||
| 8417 | ||||
(0611-1308)

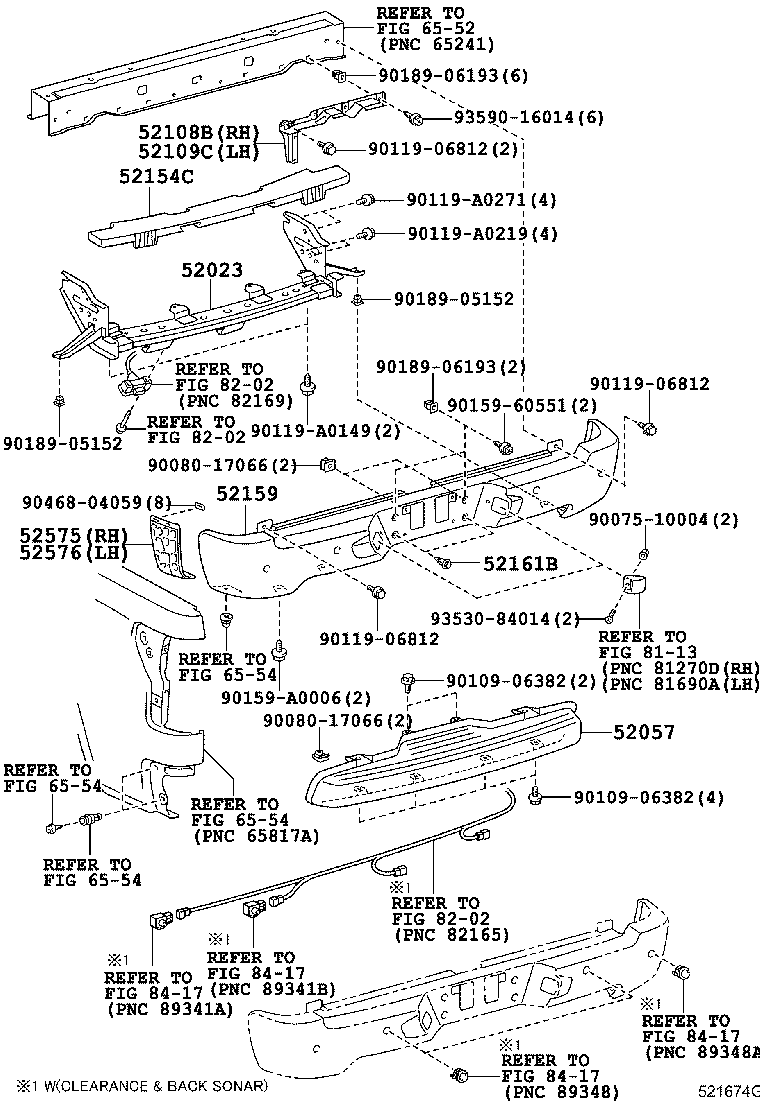

RESIN BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-0C130 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52023-0C120 |
GSK5#,UCK50,51,55,56,USK50,51,55,56 |
1 | ||
| 52023-0C130 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 51908-0C040 |
UCK50,51,55,56,USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 52057 - PAD SUB-ASSY, REAR BUMPER, LH | ||||
| 52057-0C030 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C030 |
UCK51,56,USK51,56..S;GSK50,UCK50,55,USK50,55 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C040 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52057-0C030 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TOWING PACKAGE-WITH |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE&TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE |
1 | ||
| 52057-0C040 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52057-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE&TOWING PACKAGE-WITH |
1 | ||
| 52057-0C030 |
USK56..S ROCK WARRIOR PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52108B - EXTENSION SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52108-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52108-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52109C - EXTENSION SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52109-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52109-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52154C - SUPPORT, REAR BUMPER, NO.1 | ||||
| 52154-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52154-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0C903 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S PAINT REQ.,SPORT APPEARANCE PACKAGE |
1 | ||
| 52159-0C904 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S PAINT REQ.,SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
2 | ||
| 52161-02020 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52575-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE |
1 | ||
| 52576-0C010 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S SPORT APPEARANCE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| Common parts | ||||
| 90075-10004 | ||||
| 90080-17066 | ||||
| 90109-06382 | ||||
| 90119-06812 | ||||
| 90119-A0149 | ||||
| 90119-A0219 | ||||
| 90119-A0271 | ||||
| 90159-60551 | ||||
| 90159-A0006 | ||||
| 90189-05152 | ||||
| 90189-06193 | ||||
| 90468-04059 | ||||
| 93530-84014 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 6552 | ||||
| 6554 | ||||
| 8113 | ||||
| 8202 | ||||
| 8417 | ||||
