USK56L-CRTLKA (2007)
Toyota Tundra

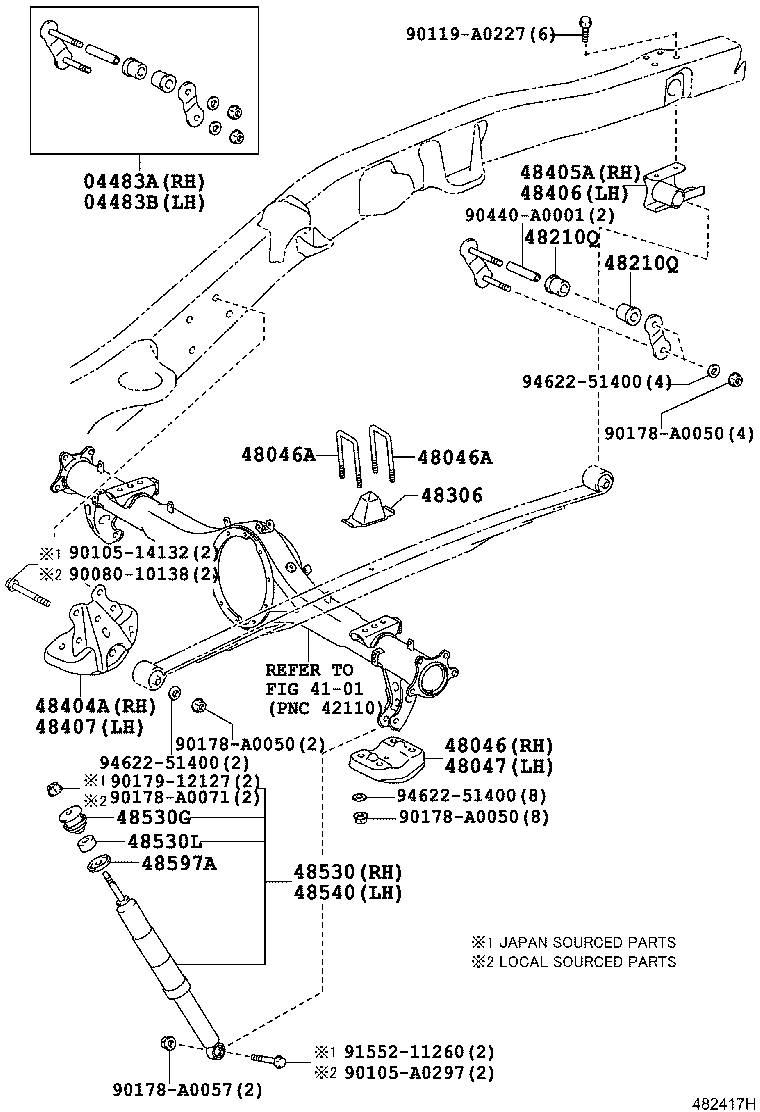

ILLUST NO. 1 OF 2(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-A0003 |
GSK51,UCK51,56..D L=185,MEXICO SPEC |
4 | ||
| 90117-A0004 |
GSK5#,UCK5#,USK5# L=170 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-A0003 |
GSK51,UCK51,56..D L=185,MEXICO SPEC |
4 | ||
| 90117-A0004 |
GSK5#,UCK5#,USK5# L=170 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48474-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-A0001 |
GSK5#,UCK5#,USK5# |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-A0001 |
GSK5#,UCK5#,USK5# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-0C010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 48405A - BRACKET SUB-ASSY, SPRING, NO.4 RH | ||||
| 48405-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 48406 - BRACKET SUB-ASSY, SPRING, NO.4 LH | ||||
| 48406-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-09N10 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D MARK 48530-0C060 |
1 | ||
| 48530-09M80 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S MARK 48530-0C080 |
1 | ||
| 48530-09N40 |
UCK55,USK55;UCK56,USK56..DCB MARK 48530-0C030,OFFROAD PACKAGE |
1 | ||
| 48530-09N40 |
USK56..DCB..S MARK 48530-0C030,ROCK WARRIOR PACKAGE |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-0C020 |
UCK50,55,USK50,55;UCK51,56,USK51,56..L,S OFFROAD PACKAGE |
2 | ||
| 48505-0C020 |
USK56..S ROCK WARRIOR PACKAGE |
2 | ||
| 48505-0C010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 48530L - CUSHION, REAR SHOCK ABSORBER, NO.3 | ||||
| 47131-0C040 |
UCK50,55,USK50,55;UCK51,56,USK51,56..L,S OFFROAD PACKAGE |
2 | ||
| 47131-0C040 |
USK56..S ROCK WARRIOR PACKAGE |
2 | ||
| 47131-0C010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-09N10 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..D MARK 48530-0C060 |
1 | ||
| 48530-09M80 |
GSK51,UCK51,52,56,57,USK51,52,56,57..L,S MARK 48530-0C080 |
1 | ||
| 48530-09N40 |
USK56..DCB..S MARK 48530-0C030,ROCK WARRIOR PACKAGE |
1 | ||
| 48530-09N40 |
UCK55,USK55;UCK56,USK56..DCB MARK 48530-0C030,OFFROAD PACKAGE |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-0C010 |
GSK5#,UCK5#,USK5# |
2 | ||
| Common parts | ||||
| 90080-10138 | ||||
| 90105-14132 | ||||
| 90105-A0297 | ||||
| 90119-A0227 | ||||
| 90178-A0050 | ||||
| 90178-A0057 | ||||
| 90178-A0071 | ||||
| 90179-12127 | ||||
| 90440-A0001 | ||||
| 91552-11260 | ||||
| 94622-51400 | ||||
| Linked diagrams | ||||
| 4101 | ||||

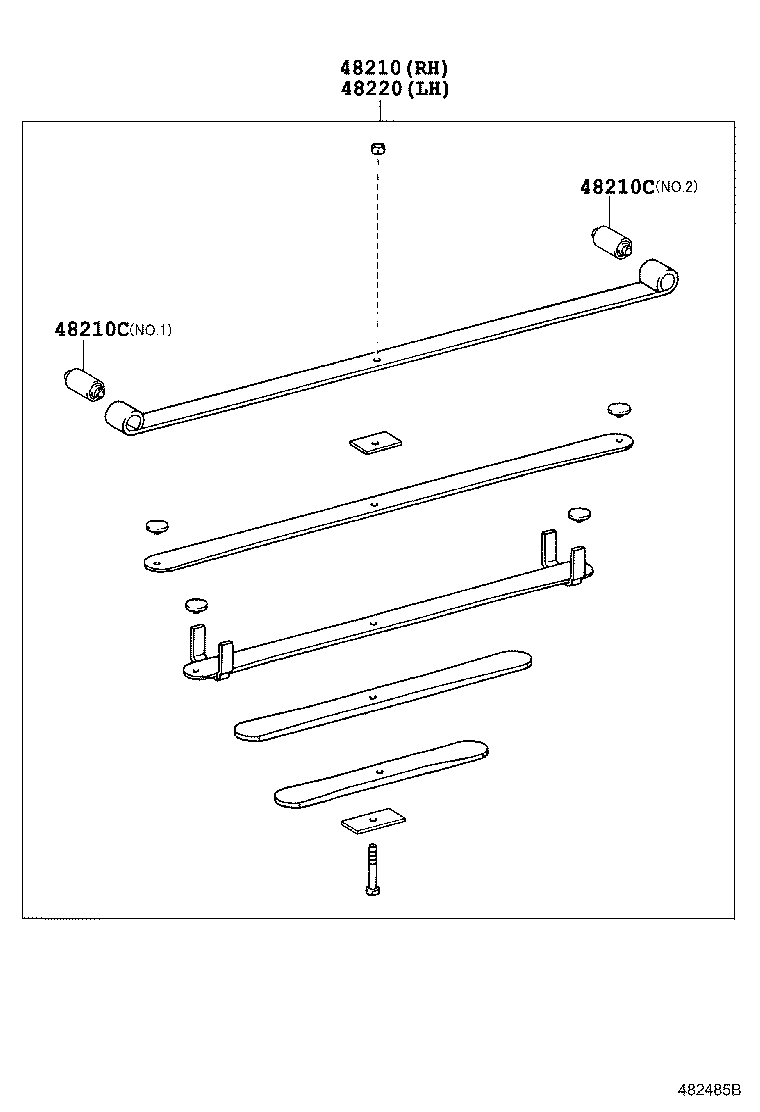

ILLUST NO. 2 OF 2(0611-0904)GSK51,UCK51,56..D
MAIN 3+HELPER 2-LEAF MEXICO SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-0C220 |
GSK51,UCK51,56..D MAIN 3+HELPER 2-LEAF,MEXICO SPEC |
1 | ||
| 48210-0C300 |
USK56,57..DCB MAIN 3+HELPER 1-LEAF |
1 | ||
| 48210-0C230 |
UCK55,56,USK55..D MAIN 3+HELPER 1-LEAF |
1 | ||
| 48210-0C260 |
USK56..D MAIN 3+HELPER 1-LEAF |
1 | ||
| 48210-0C340 |
USK56..DCB MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE |
1 | ||
| 48210-0C340 |
USK56..DCB..S MAIN 3+HELPER 1-LEAF,ROCK WARRIOR PACKAGE |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-A0004 |
GSK5#,UCK5#,USK5# NO.2 |
2 | ||
| 90389-A0008 |
GSK5#,UCK5#,USK5# NO.1 |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-A0004 |
GSK5#,UCK5#,USK5# NO.2 |
2 | ||
| 90389-A0008 |
GSK5#,UCK5#,USK5# NO.1 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-0C220 |
GSK51,UCK51,56..D MAIN 3+HELPER 2-LEAF,MEXICO SPEC |
1 | ||
| 48220-0C260 |
USK56..D MAIN 3+HELPER 1-LEAF |
1 | ||
| 48220-0C300 |
USK56,57..DCB MAIN 3+HELPER 1-LEAF |
1 | ||
| 48220-0C230 |
UCK55,56,USK55..D MAIN 3+HELPER 1-LEAF |
1 | ||
| 48220-0C340 |
USK56..DCB MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE |
1 | ||
| 48220-0C340 |
USK56..DCB..S MAIN 3+HELPER 1-LEAF,ROCK WARRIOR PACKAGE |
1 | ||
