USK56L-CRTLKA (2007)
Toyota Tundra

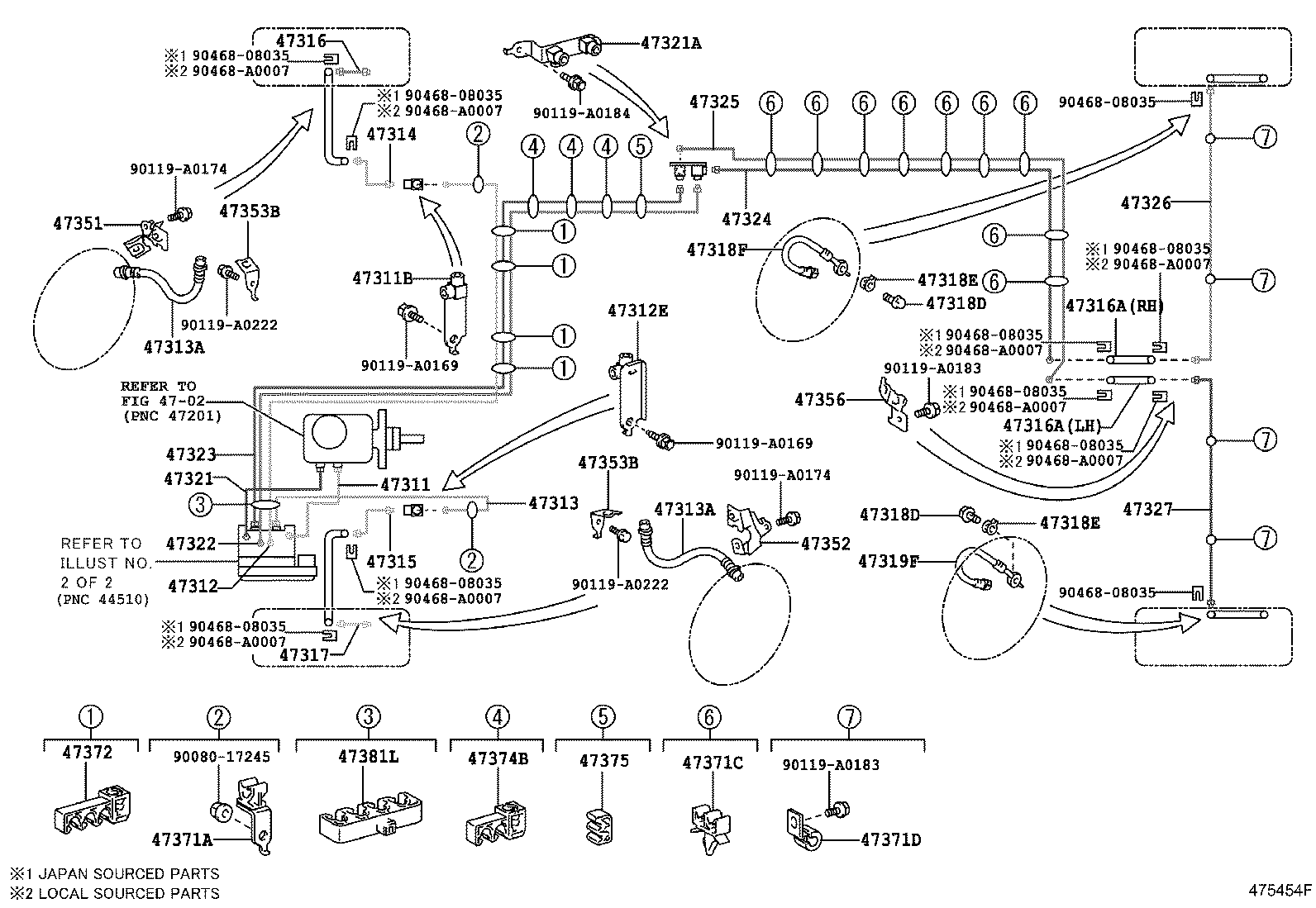

ILLUST NO. 1 OF 2(0611-1708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10266 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0C080 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10267 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0C090 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2016 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2016 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0C090 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-A2014 |
GSK5#,UCK5#,USK5# RH |
1 | ||
| 90947-A2015 |
GSK5#,UCK5#,USK5# LH |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-A2014 |
GSK5#,UCK5#,USK5# RH |
1 | ||
| 90947-A2015 |
GSK5#,UCK5#,USK5# LH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0C030 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47389-50021 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47389-50021 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2013 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2013 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0C090 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90412-10268 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0C110 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0C090 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0C080 |
GSK51,UCK51,56,USK51,56 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0C100 |
GSK51,UCK51,56,USK51,56 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-0C090 |
USK5# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0C060 |
USK5# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-0C020 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-0C020 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-A4008 |
GSK5#,UCK5#,USK5# |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90469-A0004 |
GSK51,UCK51,56,USK51,56 |
8 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08639 |
GSK5#,UCK5#,USK5# |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-A1010 |
GSK5#,UCK5#,USK5# |
4 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-A1011 |
GSK5#,UCK5#,USK5# |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-A0004 |
GSK5#,UCK5#,USK5# |
1 | ||
| 47381L - BRACKET, BRAKE TUBE CLAMP, NO.3 | ||||
| 90949-A1012 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90080-17245 | ||||
| 90119-A0169 | ||||
| 90119-A0174 | ||||
| 90119-A0183 | ||||
| 90119-A0184 | ||||
| 90119-A0222 | ||||
| 90468-08035 | ||||
| 90468-A0007 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 2(0611-1708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0C181 |
GSK51,UCK51,56,USK51,56..D |
1 | ||
| 44050-0C162 |
GSK51,UCK51,56,USK51,56..DCB |
1 | ||
| 44050-0C182 |
GSK51,UCK51,56,USK51,56..D |
1 | ||
| 44050-0C161 |
GSK51,UCK51,56,USK51,56..DCB |
1 | ||
| 44050-0C180 |
GSK51,UCK51,56,USK51,56..D |
1 | ||
| 44050-0C160 |
GSK51,UCK51,56,USK51,56..DCB |
1 | ||
| 44548A - BOLT, BRAKE ACTUATOR PROTECTOR | ||||
| 44548-0C010 |
GSK5#,UCK5#,USK5# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0C050 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90179-08237 | ||||
