USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )UPK5#,USK5#

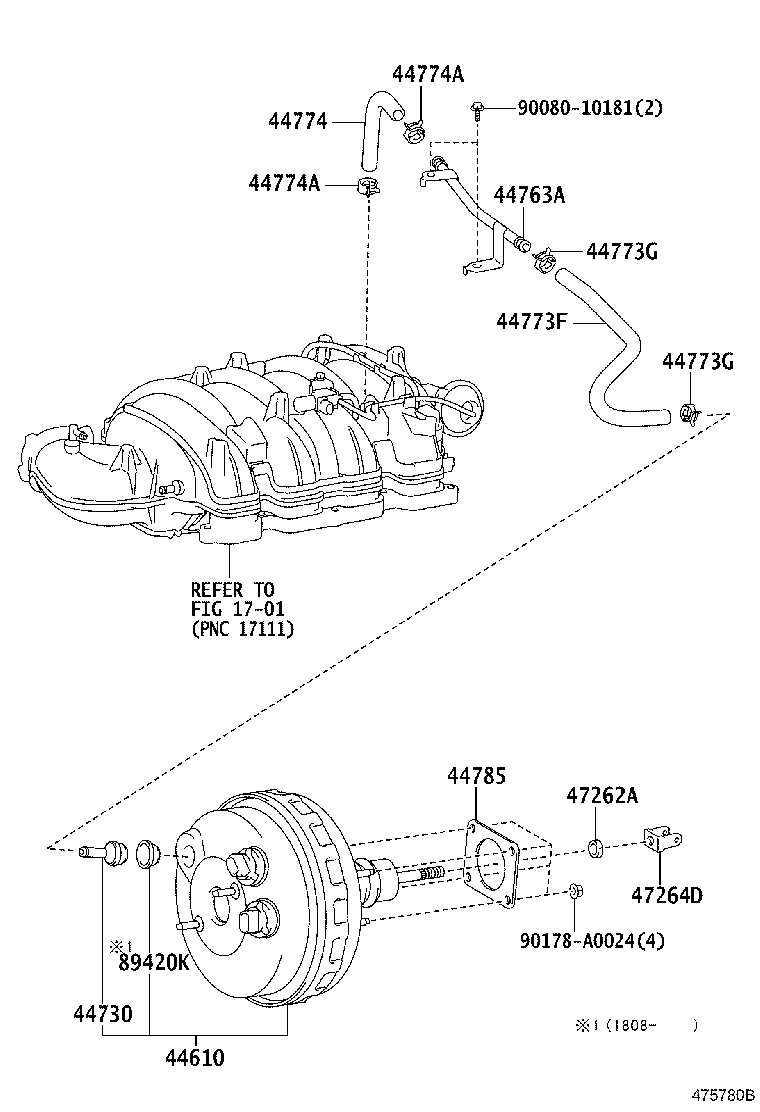

Click highlighted areas on diagram

diagram 1701 44610 44730 44763A 44773F 44773G 44773G 44774 44774A 44774A 44785 47262A 47264D 89420K 9008010181 90178A0024
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0C091

USK51..L,S;UCK51..CMAX;UCK52,56,57,USK52,56,57

 1
44610-0C090

USK51..L,S;UCK51..CMAX;UCK52,56,57,USK52,56,57

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-0C010

GSK5#,UCK5#,USK5#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0C031

USK5#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0C090

USK5#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

GSK5#,UCK5#,USK5#

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

GSK5#,UCK5#,USK5#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0C030

USK5#

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

UCK5#,USK5#

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

UCK5#,USK5#

 2
44785 - GASKET, BRAKE BOOSTER
44785-04020

GSK5#,UCK5#,USK5#

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

GSK5#,UCK5#,USK5#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020

GSK5#,UCK5#,USK5#

 1
Common parts
90080-10181
90178-A0024
Linked diagrams
1701
