USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )UPK5#,USK5#

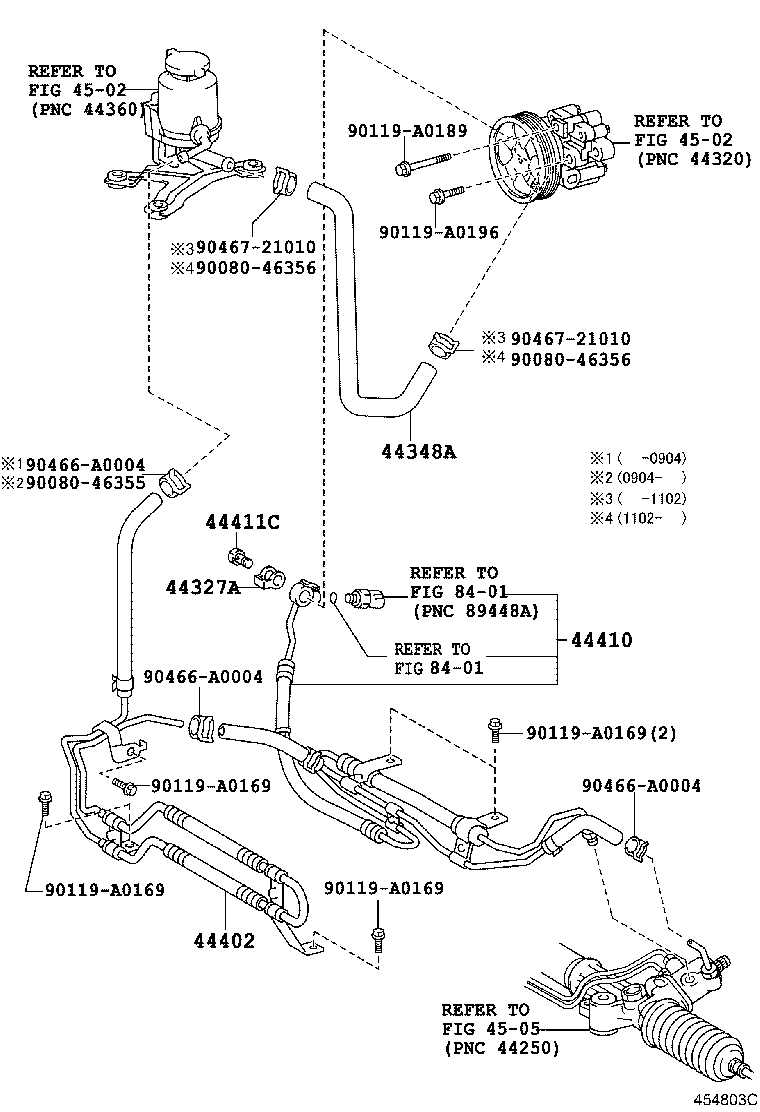

Click highlighted areas on diagram

diagram 44327A 44348A 44402 44410 44411C 4502 4502 4505 8401 8401 9008046355 9008046356 9008046356 90119A0169 90119A0169 90119A0169 90119A0169 90119A0189 90119A0196 90466A0004 90466A0004 90466A0004 9046721010 9046721010
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

GSK5#,UCK5#,USK5#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0C060

USK5#

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-0C010

GSK5#,USK5#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-0C111

USK5#

 1
44410-0C110

USK5#

 1
44410-0C180

USK5#

 1
44410-0C112

USK5#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

GSK5#,UCK5#,USK5#

 1
Common parts
90080-46355
90080-46356
90119-A0169
90119-A0189
90119-A0196
90466-A0004
90467-21010
Linked diagrams
4502
4505
8401
