USK56L-CRTLKA (2007)
Toyota Tundra

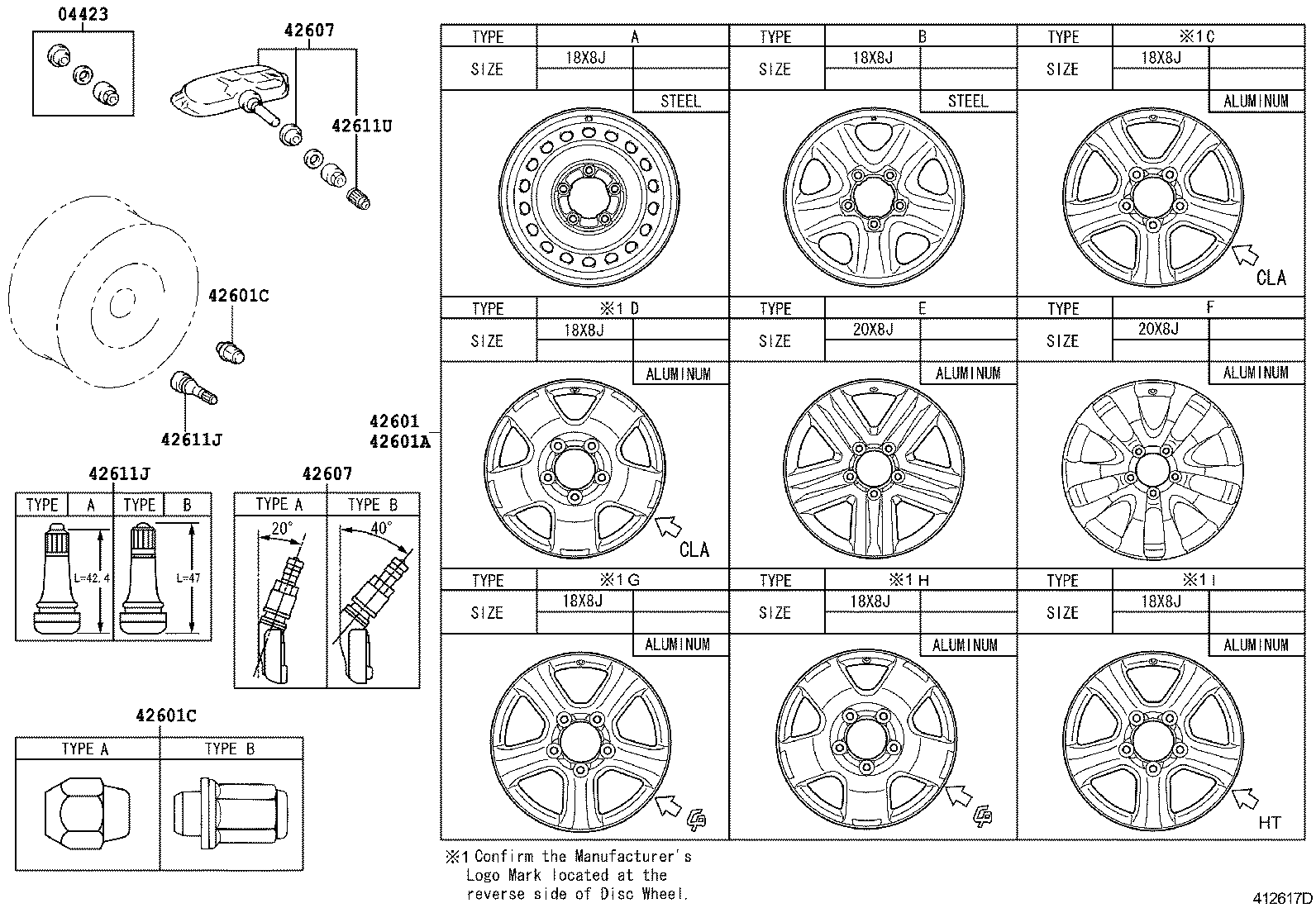

ILLUST NO. 1 OF 2(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-0C170 |
GSK5#,UCK5#,USK5# |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-0C060 |
UCK50,55,USK50,55;UCK51,56,USK51,56..L,S 20X8J, #,TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0C050 |
UCK51,56,USK51,56..L,S;UCK50,55,USK50,55..HTWC 18X8J,#,OFFROAD PACKAGE&TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0C040 |
UCK51,56,USK51,56..L 18X8J, #,TYPE C:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-0C060 |
GSK5#,UCK5#,USK5# 18X8J,#,TYPE A:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01103 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE B:REFER ILLUST. |
20 | ||
| 90942-01103 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE B:REFER ILLUST. |
20 | ||
| 90942-01103 |
UCK51,56,USK51,56..L TYPE B:REFER ILLUST. |
20 | ||
| 90942-01103 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TIRE & DISC WHEEL-P275/55R20 8J AL ACC,TYPE B:REFER ILLUST. |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01103 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE B:REFER ILLUST. |
20 | ||
| 90942-01103 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE B:REFER ILLUST. |
20 | ||
| 90942-01103 |
UCK51,56,USK51,56..L TYPE B:REFER ILLUST. |
20 | ||
| 90942-01103 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S TIRE & DISC WHEEL-P275/55R20 8J AL ACC,TYPE B:REFER ILLUST. |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-0C050 |
UCK51,56,USK51,56..L TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C050 |
GSK5#,UCK5#,USK5# TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C030 |
GSK5#,UCK5#,USK5# TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C050 |
UCK51,56,USK51,56..L OFFROAD PACKAGE&TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C030 |
UCK51,56,USK51,56..L OFFROAD PACKAGE&TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C030 |
UCK51,56,USK51,56..L TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE A:REFER ILLUST. |
4 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-0C050 |
UCK51,56,USK51,56..L TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C050 |
GSK5#,UCK5#,USK5# TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C030 |
GSK5#,UCK5#,USK5# TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C050 |
UCK51,56,USK51,56..L OFFROAD PACKAGE&TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C030 |
UCK51,56,USK51,56..L OFFROAD PACKAGE&TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE A:REFER ILLUST. |
4 | ||
| 42607-0C030 |
UCK51,56,USK51,56..L TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE A:REFER ILLUST. |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45001 |
GSK5#,UCK5#,USK5# TYPE A:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSK5#,UCK5#,USK5# TYPE B:REFER ILLUST. |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45001 |
GSK5#,UCK5#,USK5# TYPE A:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSK5#,UCK5#,USK5# TYPE B:REFER ILLUST. |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-A5004 |
GSK5#,UCK5#,USK5# |
4 | ||

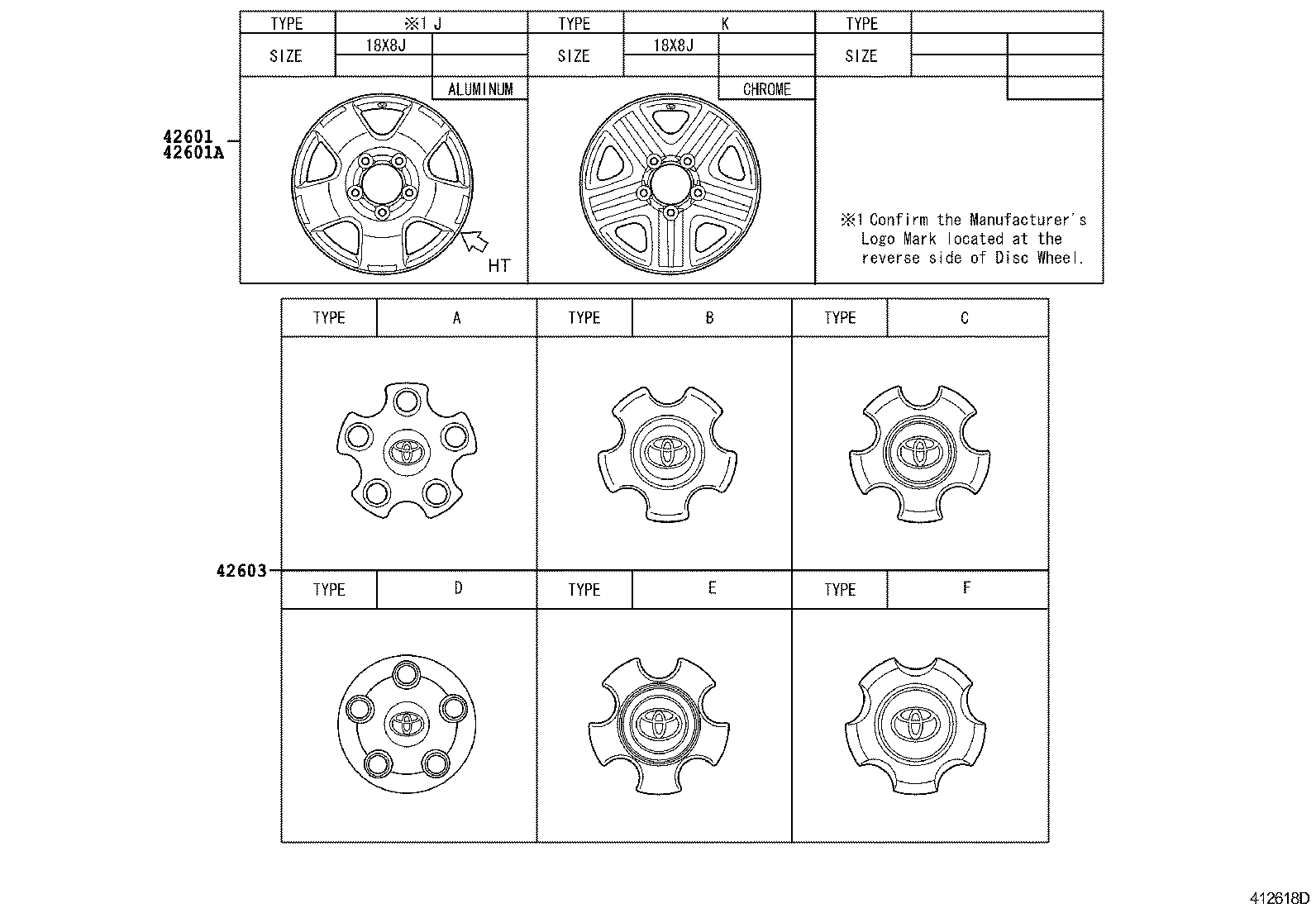

ILLUST NO. 2 OF 2(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0C060 |
UCK50,55,USK50,55;UCK51,56,USK51,56..L,S 20X8J, #,TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0C050 |
UCK51,56,USK51,56..L,S;UCK50,55,USK50,55..HTWC 18X8J,#,OFFROAD PACKAGE&TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0C040 |
UCK51,56,USK51,56..L 18X8J, #,TYPE C:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-0C060 |
GSK5#,UCK5#,USK5# 18X8J,#,TYPE A:REFER ILLUST. |
1 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-0C070 |
UCK51,56,USK51,56..L *ALU,TYPE B:REFER ILLUST. |
4 | ||
| 42603-0C080 |
UCK51,56,USK51,56..L *ALU,TIRE & DISC WHEEL-P275/65R18 8J OFFROAD,TYPE C:REFER ILLUST. |
4 | ||
| 42603-0C090 |
UCK51,56,USK51,56..L *ALU,TIRE & DISC WHEEL-P275/55R20 8J ALMINUM,TYPE B:REFER ILLUST. |
4 | ||
| 42603-0C080 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S *ALU,TIRE & DISC WHEEL-P275/65R18 8J OFFROAD&WHEEL CAP-ORNAMENT FOR 18 INCH ALM OFFROAD,TYPE C:REFER ILLUST. |
4 | ||
| 42603-0C090 |
UCK50,55,USK50,55;UCK51,56,USK51,56..S *ALU,TIRE & DISC WHEEL-P275/55R20 8J ALMINUM&WHEEL CAP-ORNAMENT FOR 20 INCH ALM,TYPE B:REFER ILLUST. |
4 | ||
