USK56L-CRTLKA (2007)
Toyota Tundra
(0611-1308)UCK56,57,UPK56,57,USK56,57

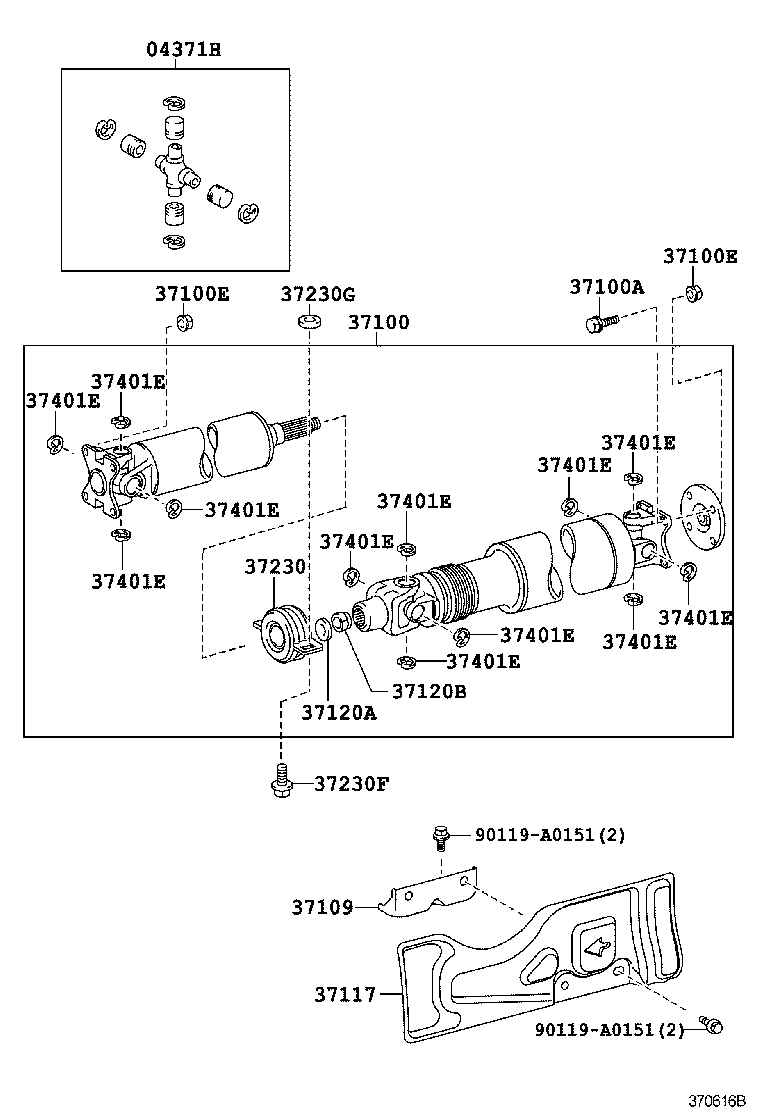

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0C090 |
UCK55,56,57,USK55,56,57 |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0C150 |
USK56 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-A0187 |
GSK5#,UCK5#,USK5# |
4 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-A0087 |
UCK55,56,57,USK55,56,57 |
8 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-A0087 |
UCK55,56,57,USK55,56,57 |
8 | ||
| 37109 - BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1 | ||||
| 37109-0C010 |
UCK55,56,57,USK55,56,57 |
1 | ||
| 37117 - INSULATOR, PROPELLER SHAFT HEAT | ||||
| 37117-0C020 |
UCK55,56,57,USK55,56,57 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90560-A0001 |
GSK51,UCK51,52,56,57,USK51,52,56,57 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-A0015 |
GSK51,UCK51,52,56,57,USK51,52,56,57 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-34050 |
UCK56,57,USK56,57 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-A0269 |
GSK51,UCK51,52,56,57,USK51,52,56,57 *10-1.25PX50-6 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10017 |
GSK51,UCK51,52,56,57,USK51,52,56,57 T=9.0 |
2 | ||
| 90201-10008 |
GSK51,UCK51,52,56,57,USK51,52,56,57 T=4.5 |
2 | ||
| 90201-10035 |
GSK51,UCK51,52,56,57,USK51,52,56,57 T=13.5 |
2 | ||
| 90201-10106 |
GSK51,UCK51,52,56,57,USK51,52,56,57 T=2.0 |
2 | ||
| 90201-10033 |
GSK51,UCK51,52,56,57,USK51,52,56,57 T=6.5 |
2 | ||
| 90201-10034 |
GSK51,UCK51,52,56,57,USK51,52,56,57 T=11.0 |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90521-A0007 |
UCK56,57,USK56,57 T=1.46,PURPLE |
9 | ||
| 90521-A0003 |
UCK56,57,USK56,57 T=1.49 |
3 | ||
| 90521-A0004 |
UCK56,57,USK56,57 T=1.56 |
3 | ||
| 90521-A0005 |
UCK56,57,USK56,57 T=1.59 |
3 | ||
| 90521-A0008 |
UCK56,57,USK56,57 T=1.52,BLACK |
9 | ||
| 90521-A0006 |
UCK56,57,USK56,57 T=1.51 |
3 | ||
| 90521-A0009 |
UCK56,57,USK56,57 T=1.59,YELLOW |
9 | ||
| 90521-A0010 |
UCK56,57,USK56,57 T=1.64,BLUE |
9 | ||
| 90521-A0011 |
UCK56,57,USK56,57 T=1.54,BLACK |
9 | ||
| 90521-A0012 |
UCK56,57,USK56,57 T=1.57,BLACK |
9 | ||
| 90521-A0016 |
UCK56,57,USK56,57 T=1.56,SILVER |
9 | ||
| 90521-A0013 |
UCK56,57,USK56,57 T=1.62,BLACK |
9 | ||
| 90521-A0015 |
UCK56,57,USK56,57 T=1.51,COPPER |
9 | ||
| 90521-A0014 |
UCK56,57,USK56,57 T=1.49,BLACK |
9 | ||
| Common parts | ||||
| 90119-A0151 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
