USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )USK52..HTWCF ; (0701- )USK50,51,55,56 ; (1308- )USK57 ; (1308-

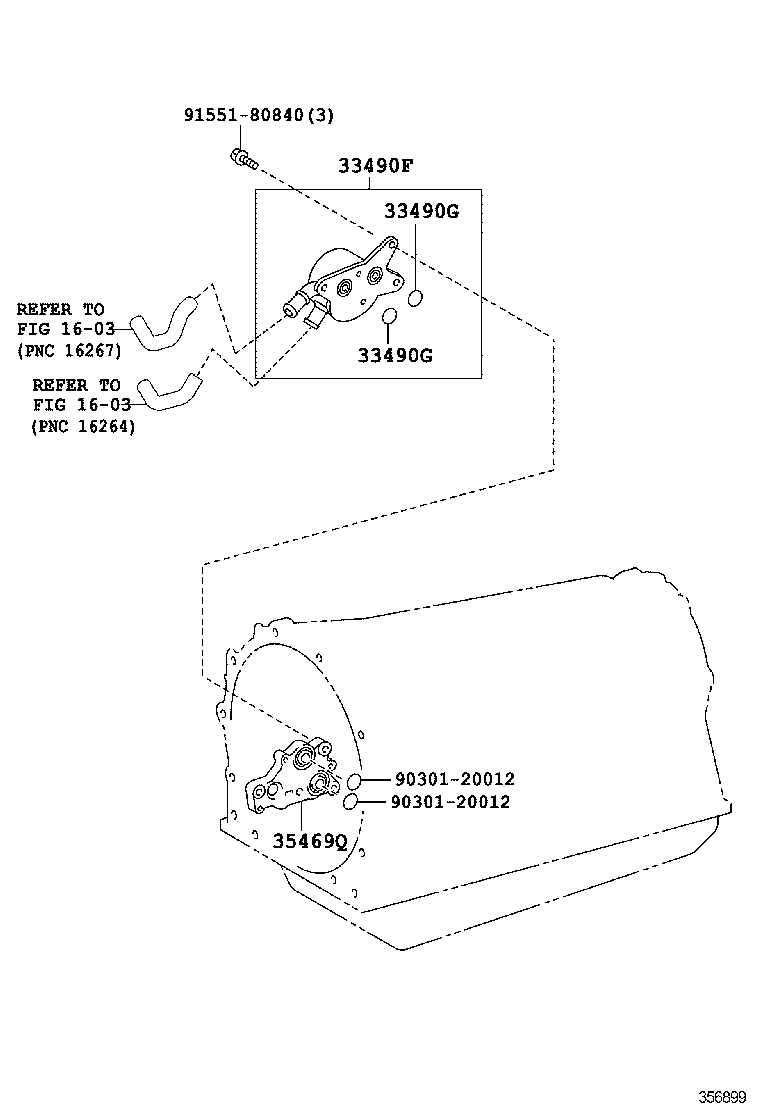

Click highlighted areas on diagram

AB60E,AB60F

diagram 1603 1603 33490F 33490G 33490G 35469Q 9030120012 9030120012 9155180840
Part # Description Qty Price
33490F - COOLER ASSY, TRANSMISSION OIL
33490-34010

USK5#

 1
33490G - RING, O (FOR TRANSMISSION OIL COOLER)
90301-19020

GSK5#,UCK5#,USK5#

 2
33490G - RING, O (FOR TRANSMISSION OIL COOLER)
90301-19020

GSK5#,UCK5#,USK5#

 2
35469Q - SPACER (FOR TRANSMISSION OIL COOLER)
35469-34020

GSK5#,UCK50,51,55,56

 1
35469-34010

USK50,51,55,56

 1
Common parts
90301-20012
91551-80840
Linked diagrams
1603
