USK56L-CRTLKA (2007)
Toyota Tundra
Production
Jan 2007
-
Apr 2009
Engine
3URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0701- )USK5#

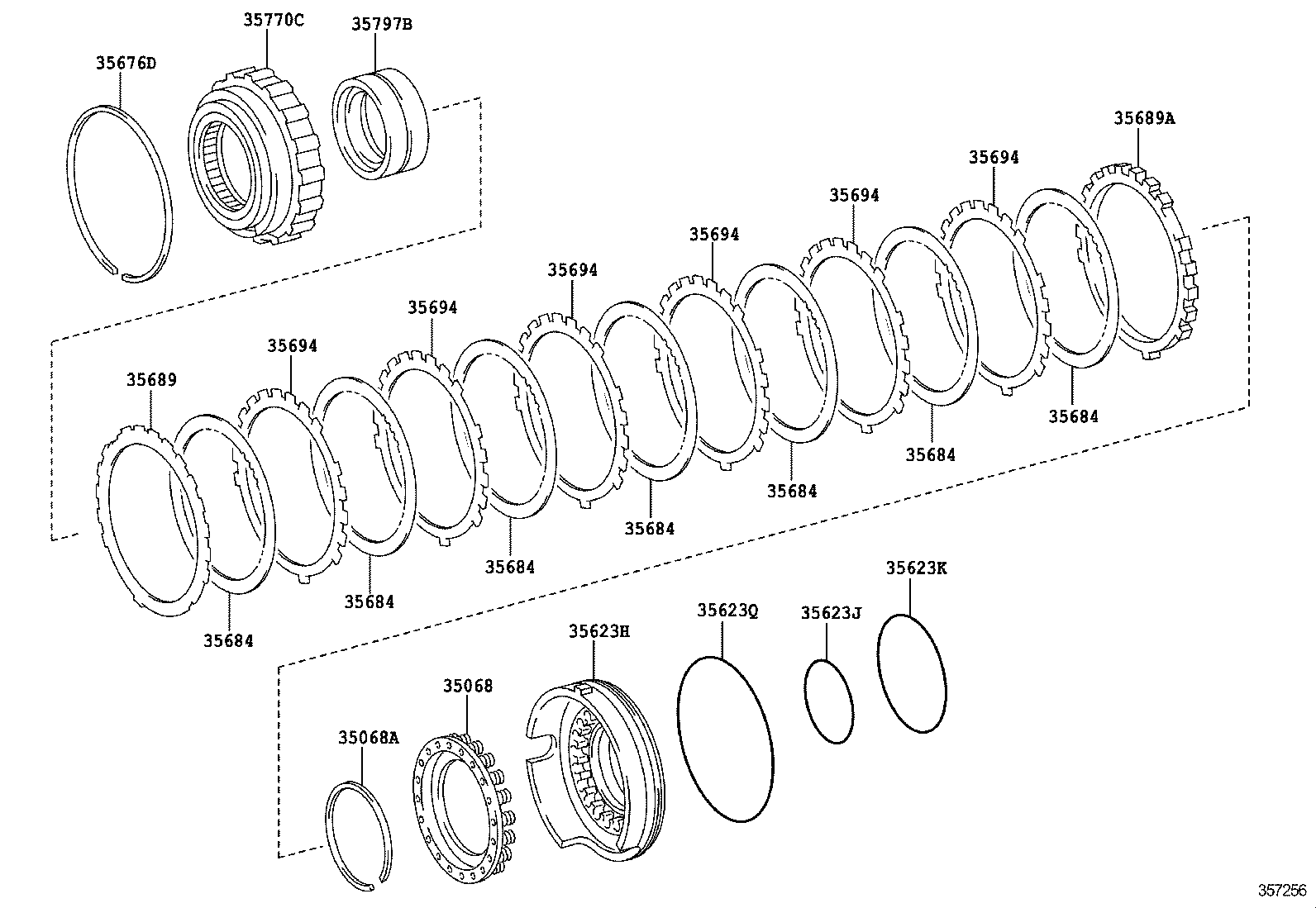

Click highlighted areas on diagram
AB60E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-0C020 |
USK5# |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-61001 |
GSK5#,UCK5#,USK5# |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-34010 |
USK5# |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-67006 |
USK5# |
1 | ||
| 35623K - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99118 |
USK5# |
1 | ||
| 35623Q - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2) | ||||
| 90301-99090 |
USK5# |
1 | ||
| 35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE) | ||||
| 90521-99130 |
USK5# |
1 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-34020 |
USK5# |
7 | ||
| 35684-0C030 |
USK5# |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-34020 |
USK5# |
7 | ||
| 35684-0C030 |
USK5# |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-34020 |
USK5# |
7 | ||
| 35684-0C030 |
USK5# |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-34020 |
USK5# |
7 | ||
| 35684-0C030 |
USK5# |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-34020 |
USK5# |
7 | ||
| 35684-0C030 |
USK5# |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-34020 |
USK5# |
7 | ||
| 35684-0C030 |
USK5# |
7 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-34020 |
USK5# |
7 | ||
| 35684-0C030 |
USK5# |
7 | ||
| 35689 - FLANGE, BRAKE, NO.4 | ||||
| 35689-0C120 |
USK5# T=2.0,MARK 2 |
1 | ||
| 35689-0C150 |
USK5# T=2.6,MARK 8 |
1 | ||
| 35689-0C110 |
USK5# T=1.8,MARK 0 |
1 | ||
| 35689-0C140 |
USK5# T=2.4,MARK 6 |
1 | ||
| 35689-0C160 |
USK5# T=2.8,MARK 10 |
1 | ||
| 35689-0C130 |
USK5# T=2.2,MARK 4 |
1 | ||
| 35689A - FLANGE, BRAKE, NO.4 | ||||
| 35689-0C100 |
USK5# |
1 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-0C020 |
USK5# |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-0C020 |
USK5# |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-0C020 |
USK5# |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-0C020 |
USK5# |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-0C020 |
USK5# |
6 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-0C020 |
USK5# |
6 | ||
| 35770C - CLUTCH ASSY, 1WAY NO.3 | ||||
| 35770-0C030 |
USK5# |
1 | ||
| 35797B - RACE, 1 WAY CLUTCH, INNER | ||||
| 35797-34030 |
USK5# |
1 | ||
