USK56L-CRTLKA (2007)
Toyota Tundra
Production
Jan 2007
-
Apr 2009
Engine
3URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0701- )USK5#

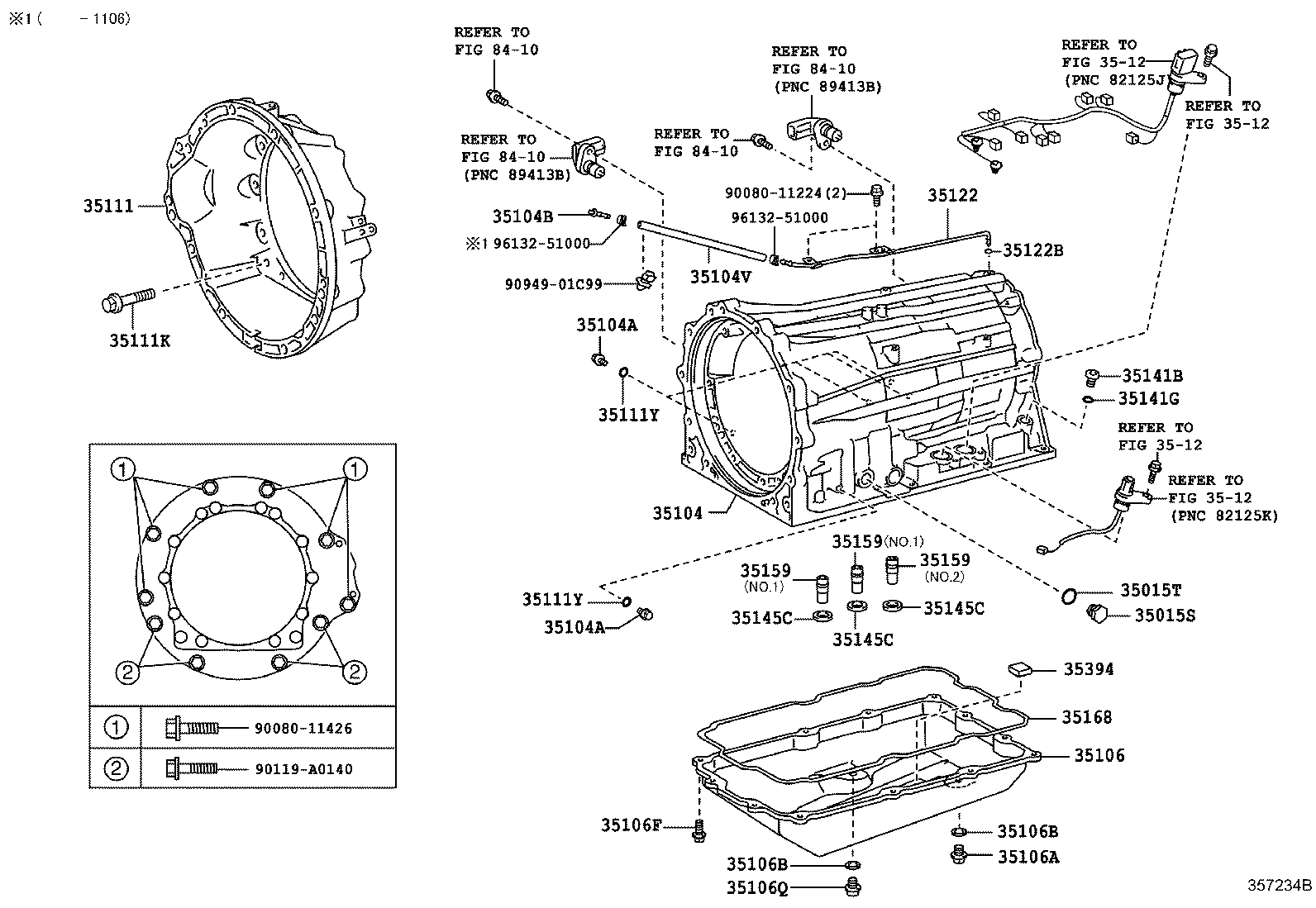

Click highlighted areas on diagram
AB60E,AB60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35015S - PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90341-18059 |
USK5# |
1 | ||
| 35015T - RING, O(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90301-15004 |
USK5# |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-0C030 |
USK5# |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-A0001 |
GSK5#,UCK5#,USK5# |
5 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-A0001 |
GSK5#,UCK5#,USK5# |
5 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03188 |
USK5# |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-10020 |
UCK5#,USK5# |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-0C020 |
USK5# |
1 | ||
| 35106-0C030 |
USK5# |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GSK5#,UCK5#,USK5# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GSK5#,UCK5#,USK5# |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 91611-B0625 |
USK5# |
12 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GSK5#,UCK5#,USK5# |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-0C050 |
USK5# |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-A0272 |
USK5# *10-1.5PX35-29.3 |
14 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GSK5#,UCK5#,USK5# |
5 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GSK5#,UCK5#,USK5# |
5 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-34020 |
USK5# |
1 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-04014 |
GSK5#,UCK5#,USK5# |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GSK5#,UCK5#,USK5# |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
USK5# |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSK5#,UCK5#,USK5# |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSK5#,UCK5#,USK5# |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSK5#,UCK5#,USK5# |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-0C020 |
USK5# NO.2 |
1 | ||
| 35159-0C030 |
USK5# NO.1 |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-0C020 |
USK5# NO.2 |
1 | ||
| 35159-0C030 |
USK5# NO.1 |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-0C020 |
USK5# NO.2 |
1 | ||
| 35159-0C030 |
USK5# NO.1 |
2 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-34010 |
USK5# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GSK5#,UCK5#,USK5# |
4 | ||
| Common parts | ||||
| 90080-11224 | ||||
| 90080-11426 | ||||
| 90119-A0140 | ||||
| 90949-01C99 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8410 | ||||
