USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0701-0903)3URFE

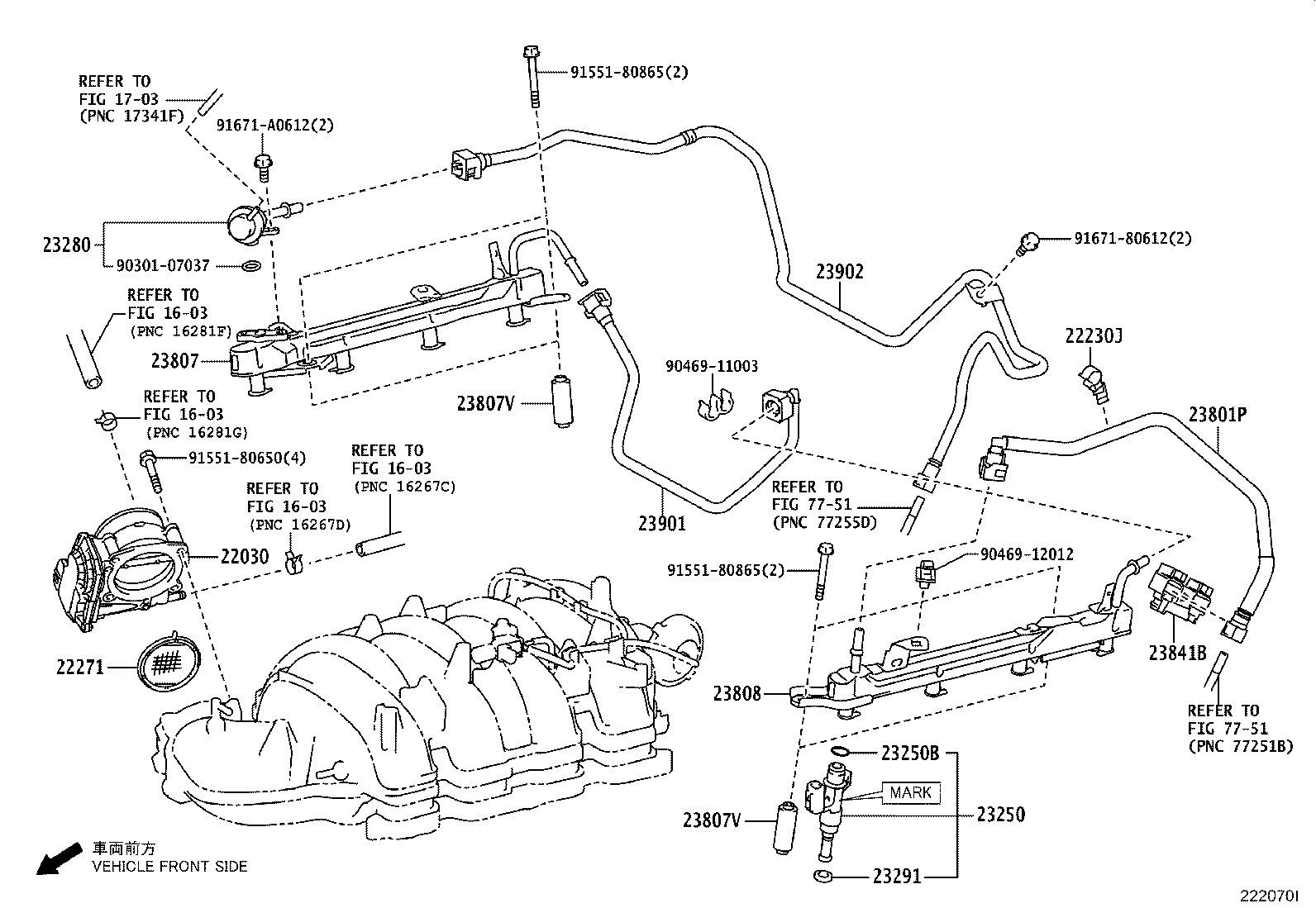

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1703 22030 22230J 22271 23250 23250B 23280 23291 23801P 23807 23807V 23807V 23808 23841B 23901 23902 7751 7751 9030107037 9046911003 9046912012 9155180650 9155180865 9155180865 9167180612 91671A0612
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0S010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
22030-38020

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
22230J - CLAMP
90464-00817

3UR#..USK5#

 1
22271 - GASKET, THROTTLE BODY
22271-0S010

3URFE..USK5#

E/G NO.=5XXXXXX,(L)

 1
22271-38010

3URFE..USK5#

E/G NO.=5XXXXXX,(J)

 1
22271-0S010

3URFE..USK5#

ENGINE NO.=5XXXXXX

 1
22271-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
23250 - INJECTOR ASSY, FUEL
23209-39135

3URFE..USK5#

MARK=23250-38010

 8
23209-09110

3URFE..USK5#

MARK=23250-0S010

 8
23209-39165

3URFE..USK5#

ENGINE NO.=3XXXXXX

 8
23209-09151

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 8
23209-09150

3URFE..USK5#

MARK=23250-0S020

 8
23209-39165

3URFE..USK5#

E/G NO.=5XXXXXX,(J)

 8
23209-39165

3URFE..USK5#

MARK=23250-38040

 8
23209-39165

3URFE..USK5#

E/G NO.=5XXXXXX,(J)

 8
23209-39185

3URFE..USK5#

E/G NO.=5XXXXXX,(J)

 8
23209-09150

3URFE..USK5#

E/G NO.=5XXXXXX,(L)

 8
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

3UR#..USK5#

ENGINE NO.=5XXXXXX

 8
90301-07037

3URFE..USK5#

ENGINE NO.=3XXXXXX

 8
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-38010

3URFE..USK5#

ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

3URFE..USK5#

ENGINE NO.=5XXXXXX

 8
23291-28020

3URFE..USK5#

ENGINE NO.=5XXXXXX

 8
23291-23010

3URFE..USK5#

ENGINE NO.=5XXXXXX

 8
23291-23010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 8
23801P - PIPE SUB-ASSY, FUEL, NO.1
23271-0S011

3UR#..USK5#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-38030

3URFE..USK5#

ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX

 1
23814-38031

3URFE..USK5#

ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3URFE..USK5#

ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-38020

3URFE..USK5#

ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX

 4
23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23815-38010

3URFE..USK5#

ENGINE NO.=5XXXXXX,ENGINE NO.=3XXXXXX

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0F010

2UZFE,3UR#..UCK5#,USK5#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
23901-38011

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
23901-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
23901-38011

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
23902 - TUBE SUB-ASSY, FUEL
23902-38021

3URFE..USK5#

 1
23902-38020

3URFE..USK5#

 1
23902-38010

3URFE..USK5#

 1
Common parts
90301-07037
90469-11003
90469-12012
91551-80650
91551-80865
91671-80612
91671-A0612
Linked diagrams
1603
1703
7751
