USK56L-CRTLKA (2007)
Toyota Tundra
(0701- )3URFE..USK51,56..CMAX,DCB..S ; (0701-)1URFE,3URFE..UPK5#,USK50,52,55
12V 100A,130A,150A

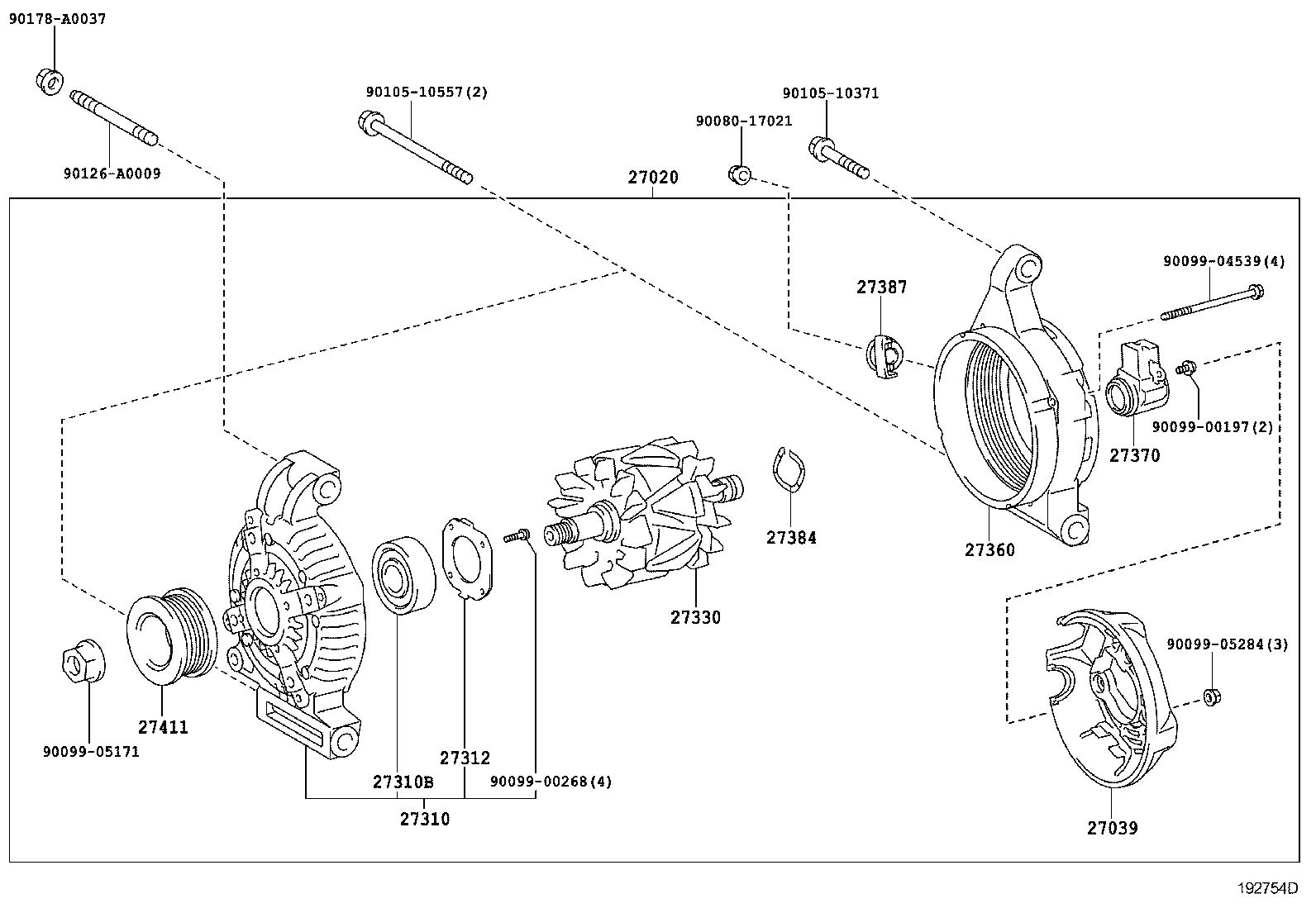

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0S010 |
3UR#..USK51,56..L 12V 130A |
1 | ||
| 27060-0S010 |
3UR#..USK51,56..L 12V 130A |
1 | ||
| 27060-0S020 |
3UR#..USK50,51,55,56 12V 150A,TOWING PACKAGE-WITH |
1 | ||
| 27060-0S020 |
3UR#..USK50,51,55,56 12V 150A,TOWING PACKAGE-WITH |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0A110 |
3UR#..USK5# |
1 | ||
| 27039-0A110 |
3UR#..USK5# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0S010 |
3UR#..USK5# |
1 | ||
| 27310-0S010 |
3UR#..USK5# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10142 |
1GRFE,2UZFE,3URFE..GSK5#,UCK5#,USK5# |
1 | ||
| 90068-10142 |
1GRFE,2UZFE,3URFE..GSK5#,UCK5#,USK5# |
1 | ||
| 90068-10033 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 90068-10033 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 27312-72100 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0A100 |
2UZFE..UCK52,57;3UR#..USK51,56..L |
1 | ||
| 27330-0A100 |
2UZFE..UCK52,57;3UR#..USK51,56..L |
1 | ||
| 27330-0A110 |
3UR#..USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 27330-0A110 |
3UR#..USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 27330-0F060 |
3UR#..USK51,56..SR5;1GRFE,2UZFE,3UR#..GSK5#,UCK50,51,55,56,USK50,55 |
1 | ||
| 27330-0F060 |
3UR#..USK51,56..SR5;1GRFE,2UZFE,3UR#..GSK5#,UCK50,51,55,56,USK50,55 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0S010 |
3UR#..USK51,56..L |
1 | ||
| 27360-0S010 |
3UR#..USK51,56..L |
1 | ||
| 27360-0S020 |
3UR#..USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 27360-0S020 |
3UR#..USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0S010 |
3UR#..USK5# |
1 | ||
| 27370-0S010 |
3UR#..USK5# |
1 | ||
| 27384 - WASHER | ||||
| 27384-0A020 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 27384-0A020 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 27387-20130 |
1GRFE,2UZFE,3UR#..GSK5#,UCK5#,USK5# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0S010 |
3UR#..USK5# |
1 | ||
| 27411-0S010 |
3UR#..USK5# |
1 | ||
| Common parts | ||||
| 90080-17021 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90105-10371 | ||||
| 90105-10557 | ||||
| 90126-A0009 | ||||
| 90178-A0037 | ||||
