USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )3UR#

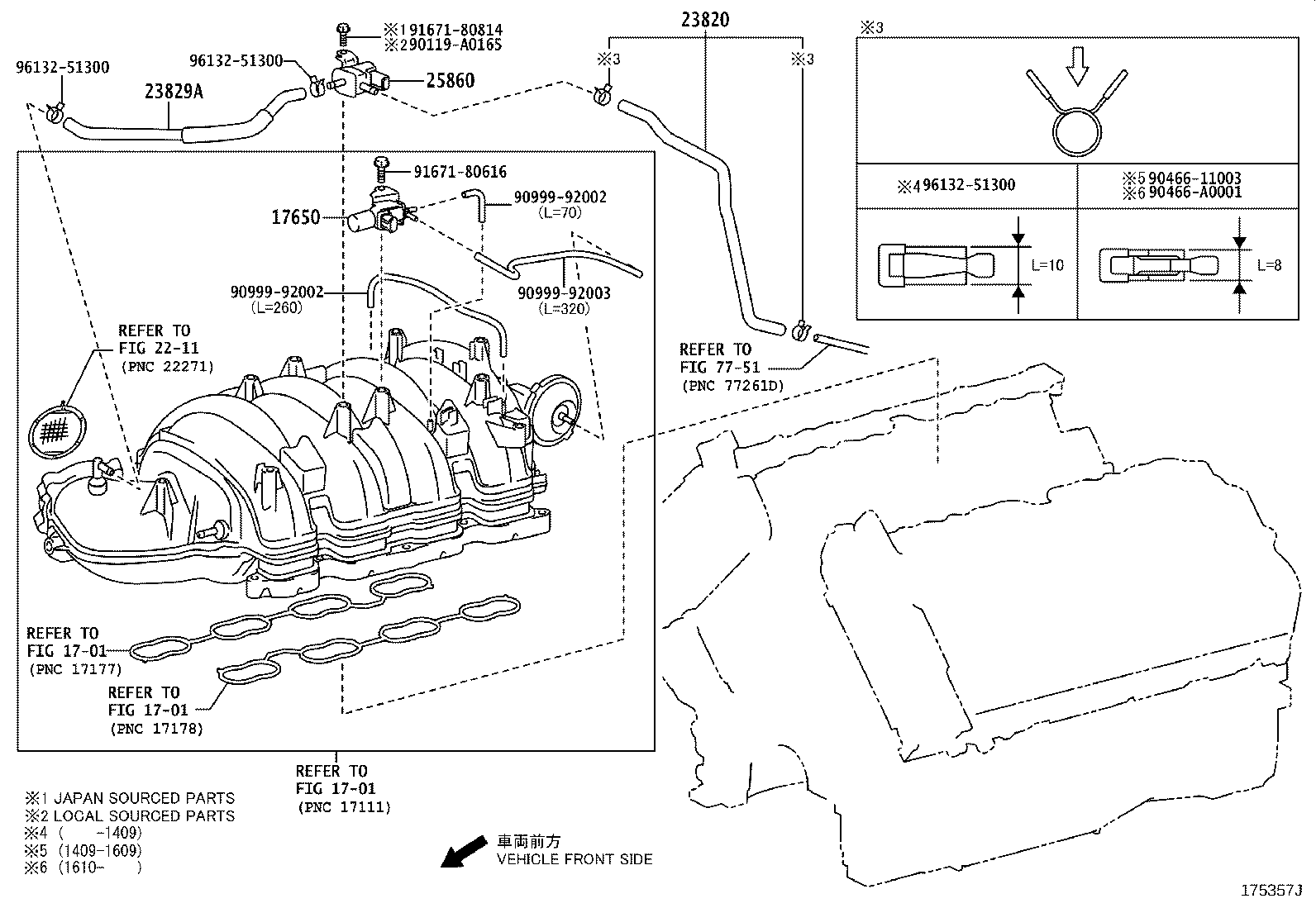

Click highlighted areas on diagram

diagram 1701 1701 1701 17650 2211 23820 23829A 25860 7751 90119A0165 9046611003 90466A0001 9099992002 9099992002 9099992003 9167180616 9167180814 9613251300 9613251300 9613251300
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-38010

3URFE..USK5#

E/G NO.=5XXXXXX,(J)

 1
25860-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
25860-0S010

3URFE..USK5#

E/G NO.=5XXXXXX,(L)

 1
25860-0S010

3URFE..USK5#

ENGINE NO.=5XXXXXX

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0S010

3UR#..USK5#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
23829-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31060

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
25860-0S020

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 1
25860-31060

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
25860-31060

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 1
Common parts
90119-A0165
90466-11003
90466-A0001
90999-92002
90999-92003
91671-80616
91671-80814
96132-51300
Linked diagrams
1701
2211
7751
