USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611-1308)1URFE,2UZFE,3UR#

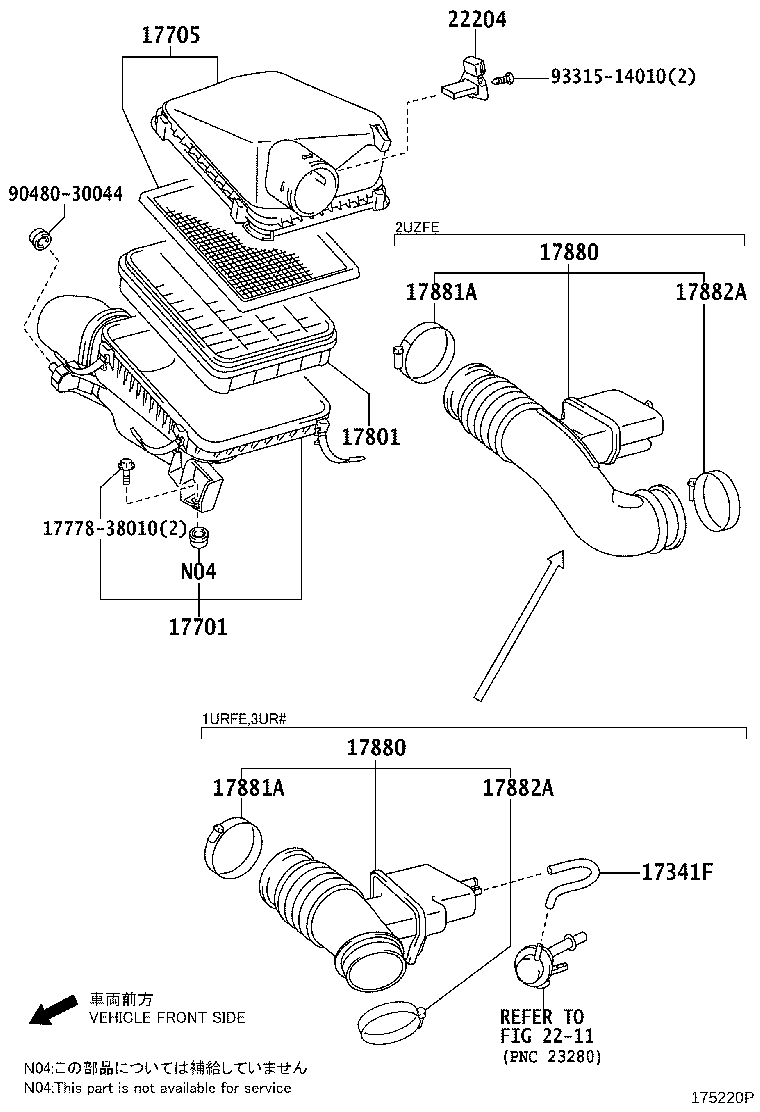

Click highlighted areas on diagram

diagram 17341F 17701 17705 1777838010 17801 17880 17880 17881A 17881A 17882A 17882A 2211 22204 9048030044 9331514010
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17341-38060

3UR#..USK5#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0S010

2UZFE,3UR#..UCK5#,USK5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0S010

2UZFE,3UR#..UCK5#,USK5#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0S010

2UZFE,3UR#..UCK5#,USK5#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-0S010

3UR#..USK5#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-0S010

3UR#..USK5#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-A0001

2UZFE,3UR#..UCK5#,USK5#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-A0001

2UZFE,3UR#..UCK5#,USK5#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-A0001

2UZFE,3UR#..UCK5#,USK5#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-A0001

2UZFE,3UR#..UCK5#,USK5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0F030

2UZFE,3UR#..UCK5#,USK5#

 1
Common parts
17778-38010
90480-30044
93315-14010
Linked diagrams
2211
