USK56L-CRTLKA (2007)
Toyota Tundra

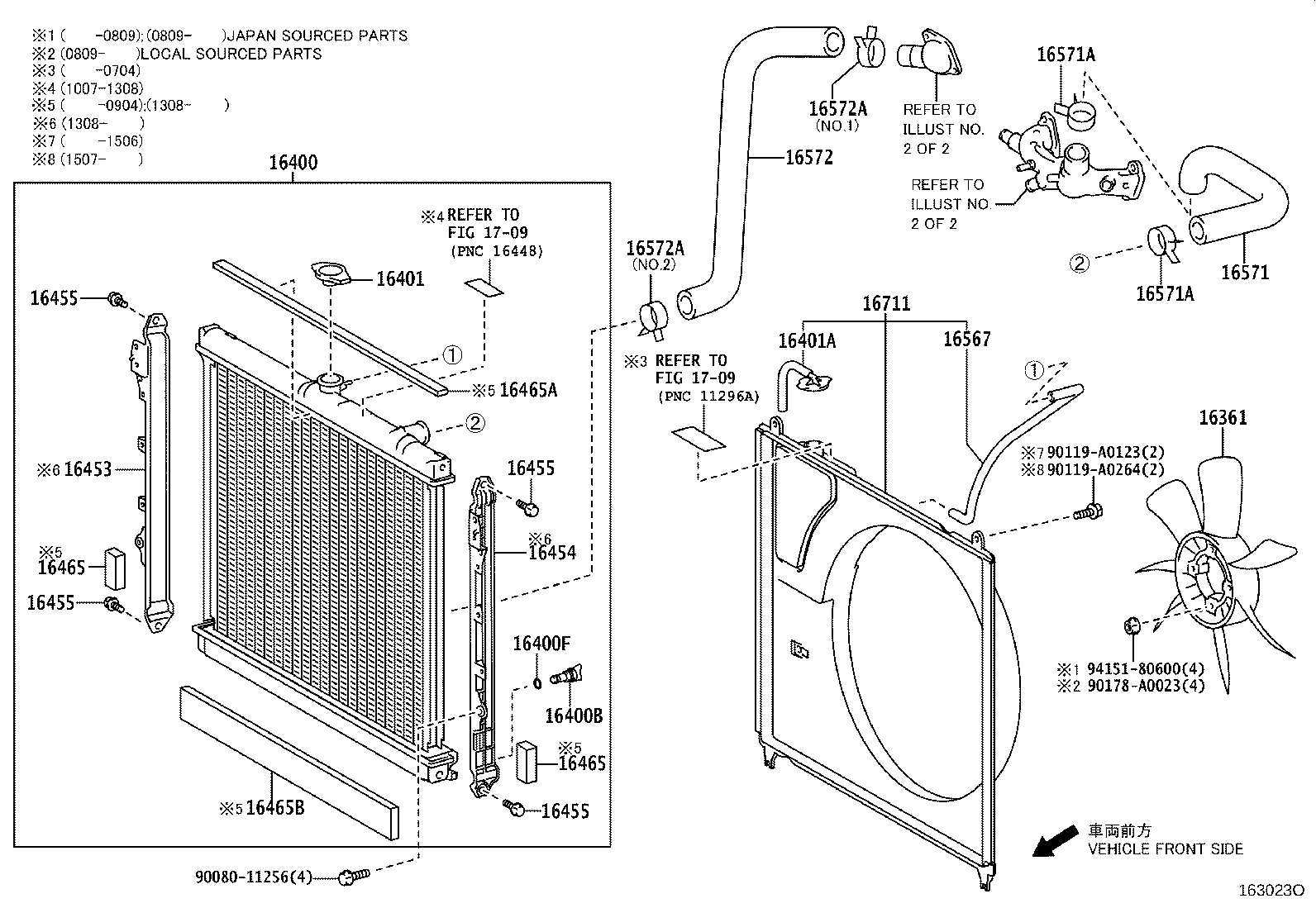

ILLUST NO. 1 OF 2(0701- )1URFE,3UR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-38020 |
3UR#..USK5# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0S010 |
3UR#..USK5# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-0P100 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-0F060 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-0F060 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16465A - PACKING, RADIATOR, NO.1 | ||||
| 16465-0P170 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16465B - PACKING, RADIATOR, NO.2 | ||||
| 16465-0S010 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-0P100 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0S010 |
3UR#..USK5# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2UZFE,3URFE..UCK5#,USK5# |
2 | ||
| 96136-54801 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2UZFE,3URFE..UCK5#,USK5# |
2 | ||
| 96136-54801 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0S010 |
3UR#..USK5# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
3URFE..USK5# NO.1 & NO.2 |
2 | ||
| 96136-54801 |
3UR#..USK5# NO.1 & NO.2 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
3URFE..USK5# NO.1 & NO.2 |
2 | ||
| 96136-54801 |
3UR#..USK5# NO.1 & NO.2 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0S010 |
3UR#..USK5# |
1 | ||
| Common parts | ||||
| 90080-11256 | ||||
| 90119-A0123 | ||||
| 90119-A0264 | ||||
| 90178-A0023 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
