USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )3UR#

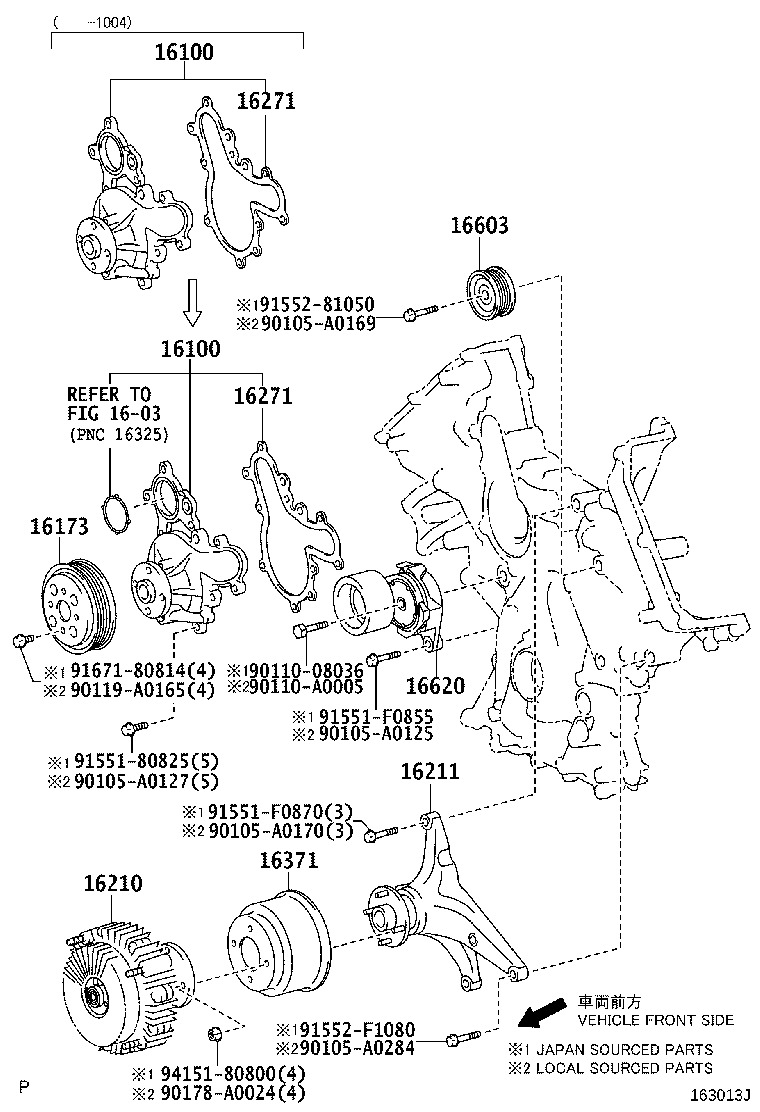

Click highlighted areas on diagram

diagram 1603 16100 16100 16173 16210 16211 16271 16271 16371 16603 16620 90105A0125 90105A0127 90105A0169 90105A0170 90105A0284 9011008036 90110A0005 90119A0165 90178A0024 9155180825 91551F0855 91551F0870 9155281050 91552F1080 9167180814 9415180800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09490

3URFE..USK5#

(L)

 1
16100-39495

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16100-39495

3URFE..USK5#

(J)

 1
16100-09490

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 1
16100-39495

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 1
16100 - PUMP ASSY, ENGINE WATER
16100-09490

3URFE..USK5#

(L)

 1
16100-39495

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16100-39495

3URFE..USK5#

(J)

 1
16100-09490

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 1
16100-39495

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 1
16173 - PULLEY, WATER PUMP
16173-38030

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
16173-38030

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16210 - COUPLING ASSY, FLUID
16210-38070

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16210-38070

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
16211 - BRACKET, FLUID COUPLING
16380-38010

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 1
16380-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16380-0S010

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 1
16271 - GASKET, WATER PUMP
16271-38020

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
16271-38020

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16271 - GASKET, WATER PUMP
16271-38020

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
16271-38020

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16371 - PULLEY, FAN
16371-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
16371-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
16603-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0S010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
16620-0S010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
Common parts
90105-A0125
90105-A0127
90105-A0169
90105-A0170
90105-A0284
90110-08036
90110-A0005
90119-A0165
90178-A0024
91551-80825
91551-F0855
91551-F0870
91552-81050
91552-F1080
91671-80814
94151-80800
Linked diagrams
1603
