USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0701-0904)3UR#

Click highlighted areas on diagram

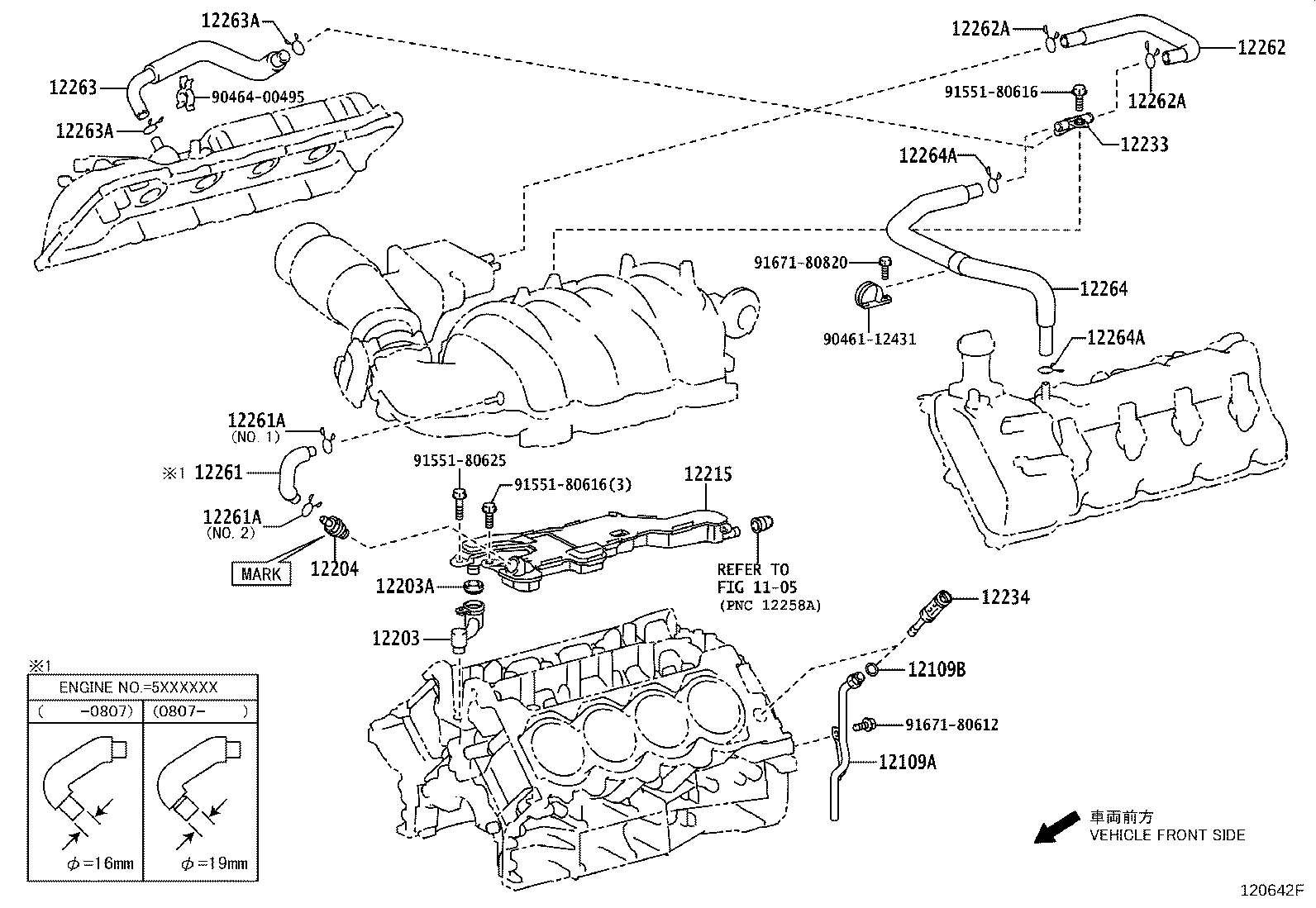

diagram 1105 12109A 12109B 12203 12203A 12204 12215 12233 12234 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 12264 12264A 12264A 9046112431 9046400495 9155180616 9155180616 9155180625 9167180612 9167180820
Part # Description Qty Price
12109A - PIPE SUB-ASSY, OIL DRAIN
12109-38020

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12109-38020

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12109B - RING, O(FOR OIL DRAIN PIPE)
90301-A0029

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 1
96723-19010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
96723-19010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
96723-19010

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 1
12203 - PIPE SUB-ASSY, VENTILATION
12203-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12203-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12203A - GASKET(FOR VENTILATION PIPE)
12273-38020

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12273-38020

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-38010

3URFE..USK5#

MARK 38010,*163

 1
12204-38030

3UR#..USK5#

MARK12204-38030,*163

 1
12204-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12215 - SEPARATOR, CASE
12215-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12215-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12233 - CONNECTOR, VENTILATION NO.1
12233-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12233-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12234 - CONNECTOR, VENTILATION NO.2
12233-38030

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12233-38030

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12261 - HOSE, VENTILATION
12261-38020

3URFE..USK5#

ENGINE NO.=5XXXXXX

 1
12261-38020

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12261-38070

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15006

3UR#..USK5#

E/G NO.=5XXXXXX,NO.2

 1
90467-14017

3URFE..USK5#

*166,NO.1 & NO.2

 2
90467-16035

3UR#..USK5#

E/G NO.=5XXXXXX,NO.1

 1
90467-14017

3URFE..USK5#

*163,NO.1 & NO.2

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15006

3UR#..USK5#

E/G NO.=5XXXXXX,NO.2

 1
90467-14017

3URFE..USK5#

*166,NO.1 & NO.2

 2
90467-16035

3UR#..USK5#

E/G NO.=5XXXXXX,NO.1

 1
90467-14017

3URFE..USK5#

*163,NO.1 & NO.2

 2
12262 - HOSE, VENTILATION, NO.2
12262-0S010

3UR#..USK5#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003

2UZFE,3UR#..UCK5#,USK5#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003

2UZFE,3UR#..UCK5#,USK5#

 2
12263 - HOSE, VENTILATION, NO.3
12263-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12263-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-19003

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
90467-19003

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-19003

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
90467-19003

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
12264 - HOSE, VENTILATION, NO.4
12262-38020

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12262-38020

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12264A - CLIP(FOR VENTILATION HOSE)
90467-19003

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
90467-19003

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
12264A - CLIP(FOR VENTILATION HOSE)
90467-19003

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
90467-19003

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
Common parts
90461-12431
90464-00495
91551-80616
91551-80625
91671-80612
91671-80820
Linked diagrams
1105
