USK56L-CRTLKA (2007)

Toyota Tundra

Production Jan 2007 - Apr 2009
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

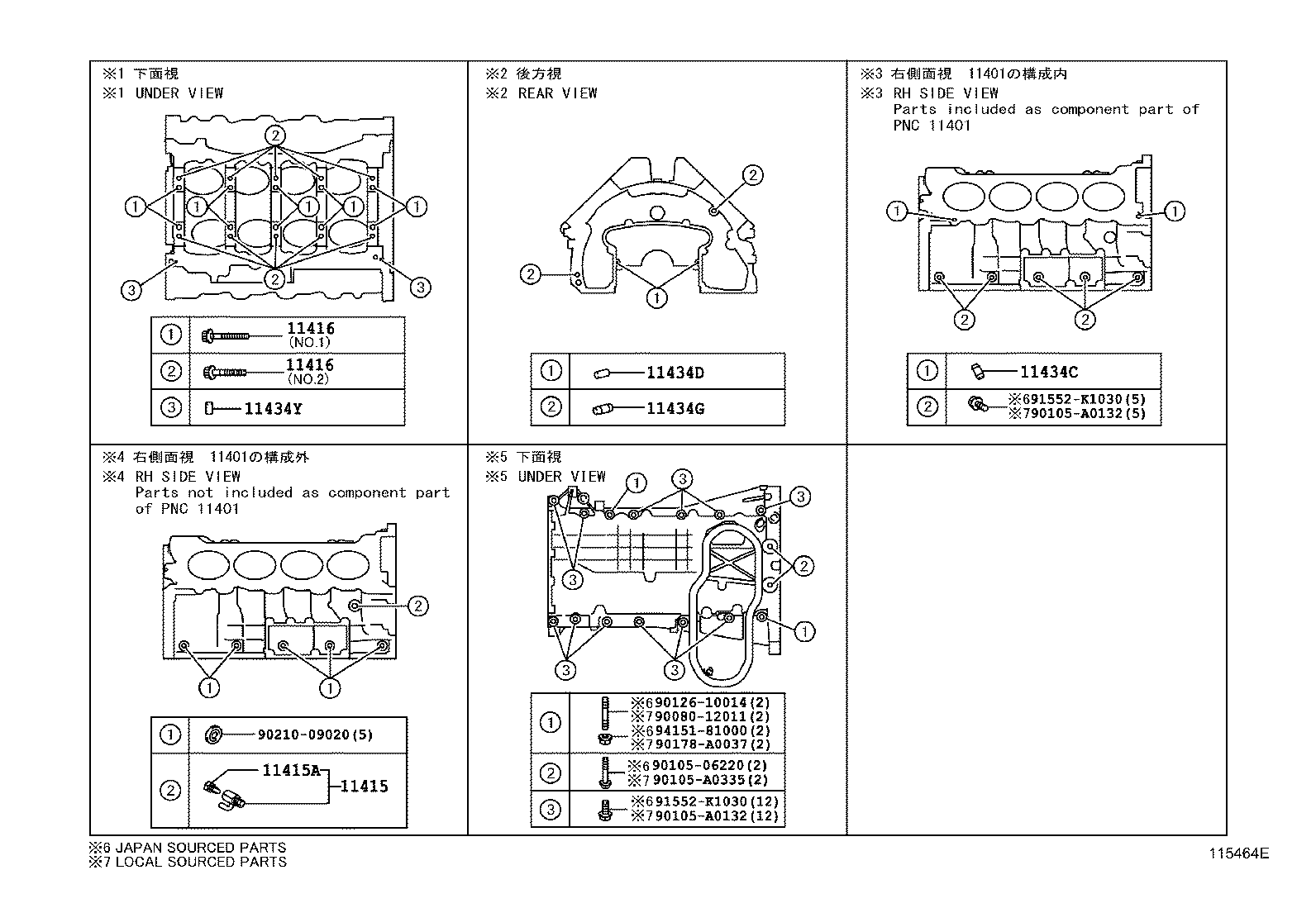

ILLUST NO. 2 OF 2(0701- )1URFE,3UR#

Click highlighted areas on diagram

diagram 11415 11415A 11416 11416 11434C 11434D 11434G 11434Y 9008012011 9010506220 90105A0132 90105A0132 90105A0335 9012610014 90178A0037 9021009020 91552K1030 91552K1030 9415181000
Part # Description Qty Price
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
90910-09129

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
90910-09087

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02165

3UR#..USK5#

E/G NO.=5XXXXXX,NO.2

 10
90910-02154

3UR#..USK5#

E/G NO.=5XXXXXX,NO.1

 10
90910-02154

3URFE..USK5#

E/G NO.=3XXXXXX,NO.1

 10
90910-02165

3URFE..USK5#

E/G NO.=3XXXXXX,NO.2

 10
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02165

3UR#..USK5#

E/G NO.=5XXXXXX,NO.2

 10
90910-02154

3UR#..USK5#

E/G NO.=5XXXXXX,NO.1

 10
90910-02154

3URFE..USK5#

E/G NO.=3XXXXXX,NO.1

 10
90910-02165

3URFE..USK5#

E/G NO.=3XXXXXX,NO.2

 10
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

3URFE..USK5#

L=18,OD=8,ENGINE NO.=3XXXXXX

 4
90250-08120

3UR#..USK5#

L=18,OD=8,ENGINE NO.=5XXXXXX

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-A0008

3UR#..USK5#

L=12,OD=4.0,E/G NO.=5XXXXXX,(L)

 2
90250-04097

3URFE..USK5#

L=12,OD=4.0,ENGINE NO.=3XXXXXX

 2
90250-04097

3UR#..USK5#

L=12,OD=4.0,E/G NO.=5XXXXXX,(J)

 2
90250-04097

3UR#..USK5#

L=12,OD=4.0,ENGINE NO.=5XXXXXX

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
90250-10113

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 2
90250-A0018

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 2
90250-10113

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
90250-A0008

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 2
90250-04097

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 2
90250-04097

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
Common parts
90080-12011
90105-06220
90105-A0132
90105-A0335
90126-10014
90178-A0037
90210-09020
91552-K1030
94151-81000

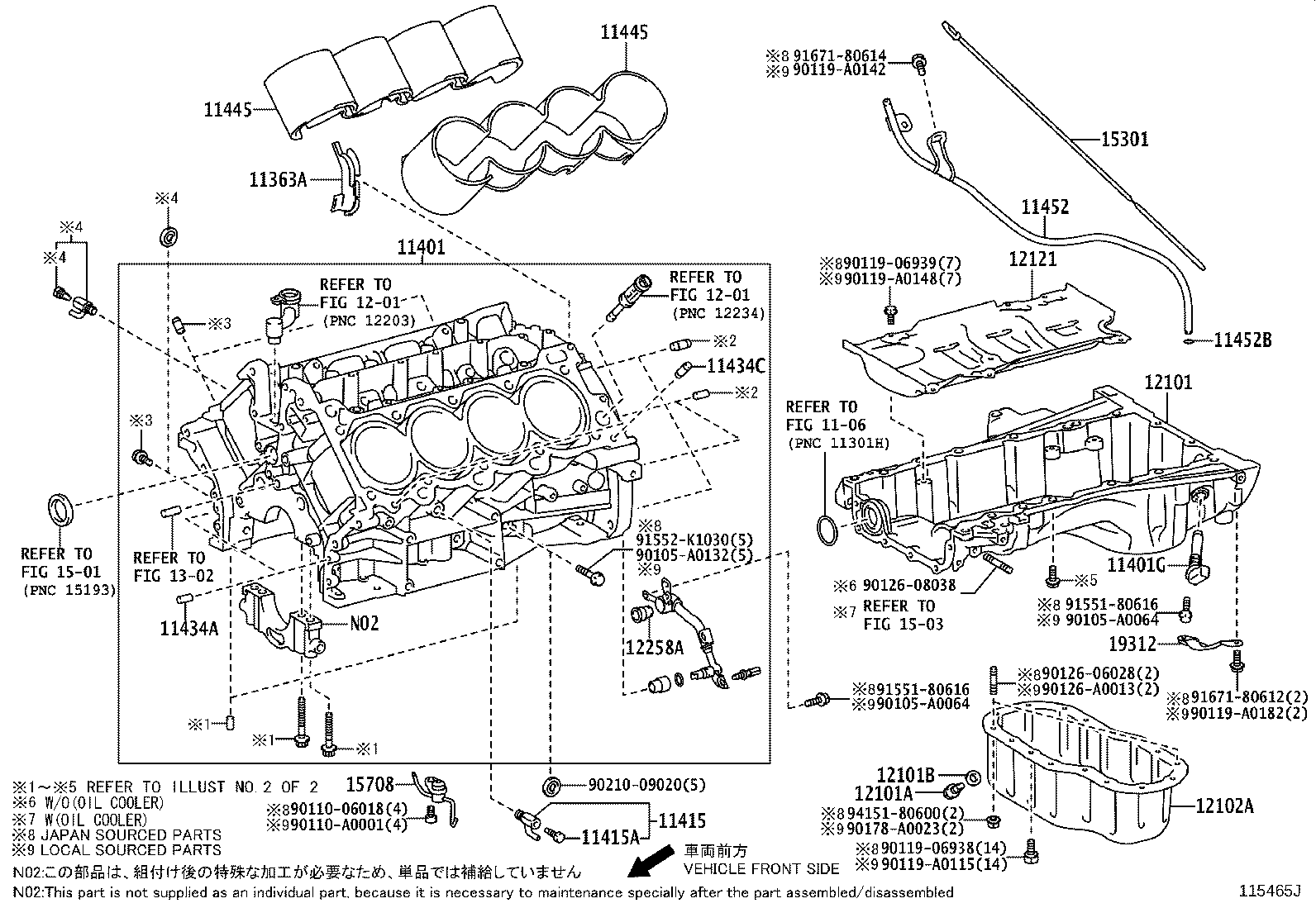

ILLUST NO. 1 OF 2(0701- )3UR#

Click highlighted areas on diagram

diagram 1106 11363A 11401 11401G 11415 11415A 11434A 11434C 11445 11445 11452 11452B 1201 1201 12101 12101A 12101B 12102A 12121 12258A 1302 1501 1503 15301 15708 19312 90105A0064 90105A0064 90105A0132 9011006018 90110A0001 9011906938 9011906939 90119A0115 90119A0142 90119A0148 90119A0182 9012606028 9012608038 90126A0013 90178A0023 9021009020 9155180616 9155180616 91552K1030 9167180612 9167180614 9415180600
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-38010

3UR#..USK5#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39815

3UR#..USK5#

E/G NO.=5XXXXXX,(J)

 1
11401-39815

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
11401-39815

3URFE..USK5#

(J)

 1
11401-09660

3URFE..USK5#

(L)

 1
11401-09660

3UR#..USK5#

E/G NO.=5XXXXXX,(L)

 1
11401G - SENSOR, CRANK POSITION
90919-05071

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
90919-05071

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
90910-09129

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
90910-09087

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-A0008

3UR#..USK5#

L=12,OD=4.0,E/G NO.=5XXXXXX,(L)

 2
90250-04097

3URFE..USK5#

L=12,OD=4.0,ENGINE NO.=3XXXXXX

 2
90250-04097

3UR#..USK5#

L=12,OD=4.0,ENGINE NO.=5XXXXXX

 2
90250-04097

3UR#..USK5#

L=12,OD=4.0,E/G NO.=5XXXXXX,(J)

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

3URFE..USK5#

L=18,OD=8,ENGINE NO.=3XXXXXX

 4
90250-08120

3UR#..USK5#

L=18,OD=8,ENGINE NO.=5XXXXXX

 4
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0S010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
11445-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0S010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 2
11445-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-0S010

3UR#..USK5#

 1
11452-0S011

3UR#..USK5#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

2UZFE,3UR#..UCK5#,USK5#

 1
12101 - PAN SUB-ASSY, OIL
12111-0S010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12111-0S011

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12111-0S010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12111-0S011

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
90341-12012

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
90430-12031

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12102-0S010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-38070

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
12121-38070

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12258A - GASKET, OIL RETURN PIPE
12269-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
12269-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-38060

3UR#..USK5#

 1
15301-38061

3UR#..USK5#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 4
15708-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 4
19312 - PROTECTOR, CRANK POSITION SENSOR
19312-38010

3UR#..USK5#

ENGINE NO.=5XXXXXX

 1
19312-38010

3URFE..USK5#

ENGINE NO.=3XXXXXX

 1
Common parts
90105-A0064
90105-A0132
90110-06018
90110-A0001
90119-06938
90119-06939
90119-A0115
90119-A0142
90119-A0148
90119-A0182
90126-06028
90126-08038
90126-A0013
90178-A0023
90210-09020
91551-80616
91552-K1030
91671-80612
91671-80614
94151-80600
