USK56L-CRTLKA (2007)
Toyota Tundra

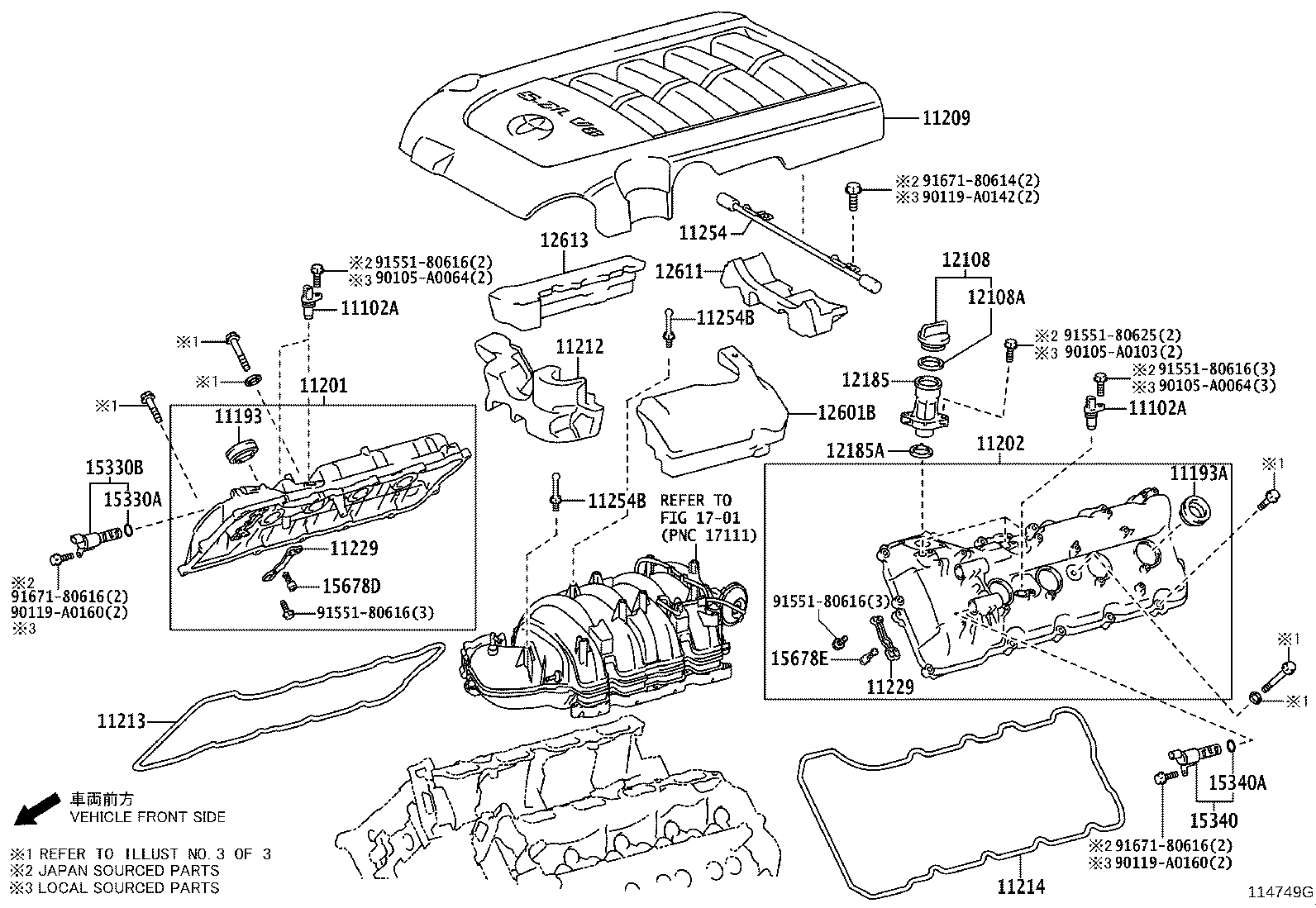

ILLUST NO. 2 OF 3(0701- )3UR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
5 | ||
| 90919-05060 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
5 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05060 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
5 | ||
| 90919-05060 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
5 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-70010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
4 | ||
| 11193-70010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
4 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-70010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
4 | ||
| 11193-70010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-38040 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11201-38040 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-38011 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11202-38011 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-0S010 |
3UR#..USK5# |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 12612-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12612-0S010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-38020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11213-38020 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-38010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11214-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 11229-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 11229-38010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 11229-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 11229-38010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-38010 |
3UR#..USK5# |
1 | ||
| 11254B - BOLT, V-BANK COVER | ||||
| 11254-38020 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11254-38020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 11254B - BOLT, V-BANK COVER | ||||
| 11254-38020 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11254-38020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H031 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 12180-38020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12180-38020 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 90080-43025 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 90430-35001 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12185 - HOUSING, OIL FILLER CAP | ||||
| 12185-38011 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12185-38011 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 12185A - GASKET, OIL FILLER CAP HOUSING | ||||
| 12196-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12196-38010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-0S010 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 12601-38020 |
3URFE..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 12601-38020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0S010 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 12611-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 12611-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12613 - COVER, ENGINE, NO.3 | ||||
| 12613-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12613-0S010 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 12613-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 90099-14137 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 15330-0S010 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
2 | ||
| 15330-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
2 | ||
| 15330-38010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15330-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 15330-38010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 15330-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
2 | ||
| 15330-0S010 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
2 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 90099-14137 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 15678D - FILTER, OIL CONTROL VALVE, RH | ||||
| 15678-46020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 15678-46020 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 15678E - FILTER, OIL CONTROL VALVE, LH | ||||
| 15678-46020 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 15678-46020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| Common parts | ||||
| 90105-A0064 | ||||
| 90105-A0103 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||

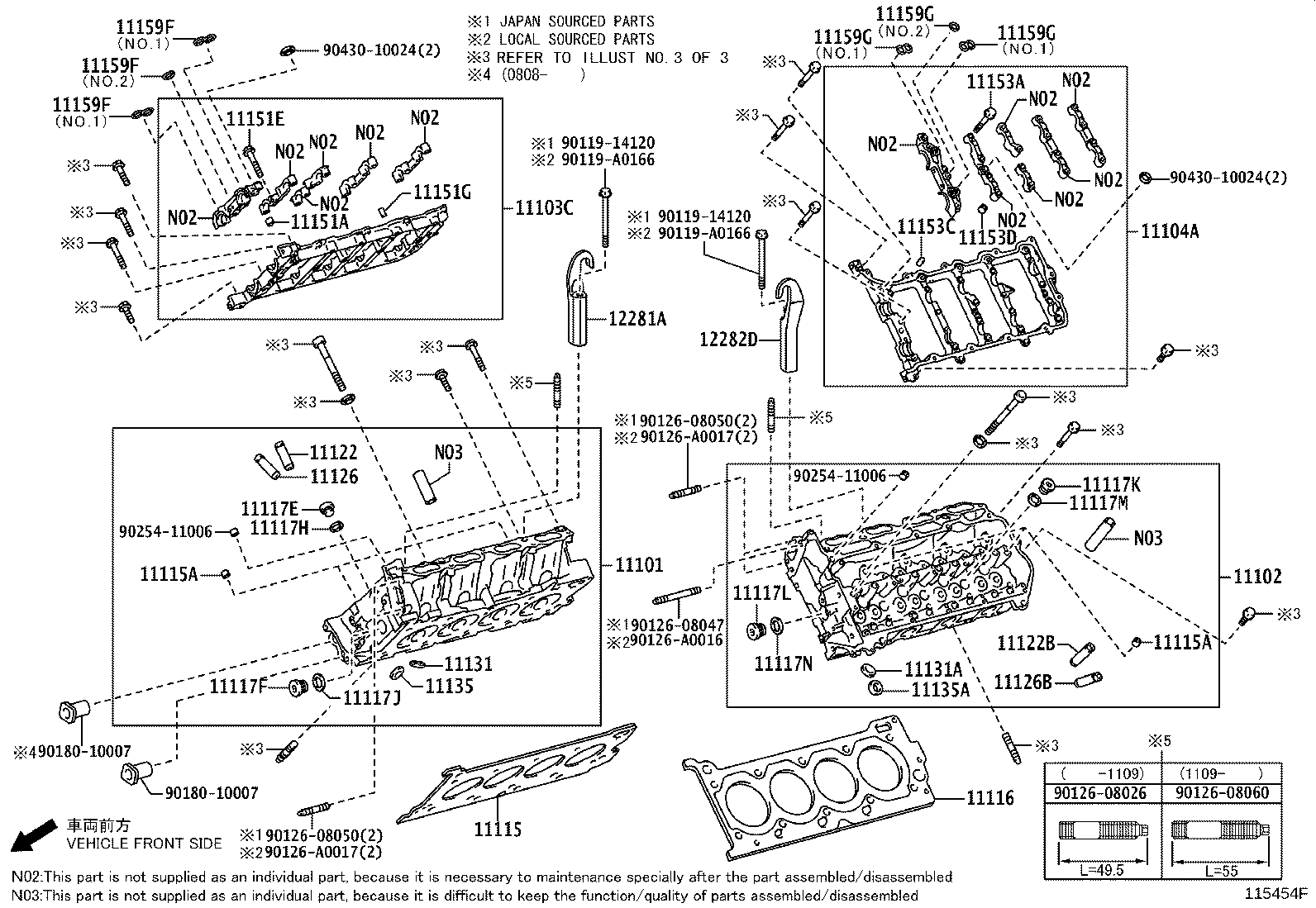

ILLUST NO. 1 OF 3(0701- )1URFE,3UR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39645 |
3URFE..USK5# (J) |
1 | ||
| 11101-09270 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 11101-09270 |
3URFE..USK5# (L) |
1 | ||
| 11101-39645 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11101-39645 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-09150 |
3URFE..USK5# (L) |
1 | ||
| 11102-39175 |
3URFE..USK5# (J) |
1 | ||
| 11102-39175 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11102-39175 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 11102-09150 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 11103C - HOUSING SUB-ASSY, CAMSHAFT, RH | ||||
| 11103-38011 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11103-38011 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 11103-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX,E/G NO.=5XXXXXX,(J) |
1 | ||
| 11103-0S010 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 11104A - HOUSING SUB-ASSY, CAMSHAFT, LH | ||||
| 11104-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
1 | ||
| 11104-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11104-0S010 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-38020 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11115-38020 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-11004 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
4 | ||
| 90253-11004 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
4 | ||
| 11115A - PIN, RING | ||||
| 90253-11004 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
4 | ||
| 90253-11004 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
4 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-38010 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11116-38010 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20012 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
3 | ||
| 90341-20012 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27006 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 90341-27006 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
3 | ||
| 90430-20004 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
3 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 90430-27005 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-20012 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
3 | ||
| 90341-20012 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
3 | ||
| 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||||
| 90341-27006 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 90341-27006 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 11117M - GASKET(FOR WATER HOLE NO.2) | ||||
| 90430-20004 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
3 | ||
| 90430-20004 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
3 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-27005 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 90430-27005 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31050 |
3UR#..USK5# STD |
8 | ||
| 11123-31050 |
3UR#..USK5# O/S 0.05 |
8 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11122-31050 |
3UR#..USK5# STD |
8 | ||
| 11123-31050 |
3UR#..USK5# O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-31030 |
3UR#..USK5# STD |
8 | ||
| 11127-31030 |
3UR#..USK5# O/S 0.05 |
8 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11127-31030 |
3UR#..USK5# O/S 0.05 |
8 | ||
| 11126-31030 |
3UR#..USK5# STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-31040 |
3URFE..USK5# O/S 0.03 |
8 | ||
| 11131-0P020 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11131-31040 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11132-31040 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11132-0P020 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11131-31040 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11131-31050 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11132-31050 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11131-31050 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-31040 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11132-31040 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11131-31050 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11131-0P020 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11132-0P020 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11131-31050 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11132-31050 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11131-31040 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11132-31040 |
3URFE..USK5# O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-31060 |
3URFE..USK5# O/S 0.03 |
8 | ||
| 11136-31060 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11135-31060 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11136-0P020 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11136-31080 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11135-31080 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11135-0P020 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11135-31080 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11135-31060 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-0P020 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11135-31080 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11136-31060 |
3URFE..USK5# O/S 0.03 |
8 | ||
| 11135-31060 |
3UR#..USK5# STD,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11136-0P020 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(L) |
8 | ||
| 11136-31080 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11135-31080 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11136-31060 |
3UR#..USK5# O/S 0.03,E/G NO.=5XXXXXX,(J) |
8 | ||
| 11135-31060 |
3URFE..USK5# STD,ENGINE NO.=3XXXXXX |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
3UR#..USK5# L=8,OD=11,ENGINE NO.=5XXXXXX |
12 | ||
| 90253-11021 |
3URFE..USK5# L=8,OD=11,ENGINE NO.=3XXXXXX |
12 | ||
| 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-A0302 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
10 | ||
| 90119-07009 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
10 | ||
| 90119-07009 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
10 | ||
| 11151G - PIN, STRAIGHT(FOR CAMSHAFT HOUSING RH) | ||||
| 90250-05021 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 90250-05021 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07009 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
10 | ||
| 90119-07009 |
3UR#..USK5# E/G NO.=5XXXXXX,(J) |
10 | ||
| 90119-A0302 |
3UR#..USK5# E/G NO.=5XXXXXX,(L) |
10 | ||
| 11153C - PIN, STRAIGHT(FOR CAMSHAFT HOUSING LH) | ||||
| 90250-05021 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 90250-05021 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11153D - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH) | ||||
| 90253-11021 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
12 | ||
| 90253-11021 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
12 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-38010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11159-31010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
2 | ||
| 11159-31010 |
3UR#..USK5# *165,NO.1 |
2 | ||
| 11159-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# *165,NO.2 |
1 | ||
| 11159-0S010 |
3UR#..USK5# *164,NO.2 |
1 | ||
| 11159-0P010 |
3UR#..USK5# *164,NO.1 |
2 | ||
| 11159-31010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
2 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-38010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11159-31010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
2 | ||
| 11159-31010 |
3UR#..USK5# *165,NO.1 |
2 | ||
| 11159-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# *165,NO.2 |
1 | ||
| 11159-0S010 |
3UR#..USK5# *164,NO.2 |
1 | ||
| 11159-0P010 |
3UR#..USK5# *164,NO.1 |
2 | ||
| 11159-31010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
2 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-38010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11159-31010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
2 | ||
| 11159-31010 |
3UR#..USK5# *165,NO.1 |
2 | ||
| 11159-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# *165,NO.2 |
1 | ||
| 11159-0S010 |
3UR#..USK5# *164,NO.2 |
1 | ||
| 11159-0P010 |
3UR#..USK5# *164,NO.1 |
2 | ||
| 11159-31010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
2 | ||
| 11159-31010 |
3UR#..USK5# *165,NO.1 |
2 | ||
| 11159-31010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
2 | ||
| 11159-0S010 |
3UR#..USK5# *164,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# *165,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11159-38010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11159-0P010 |
3UR#..USK5# *164,NO.1 |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
2 | ||
| 11159-31010 |
3UR#..USK5# *165,NO.1 |
2 | ||
| 11159-31010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
2 | ||
| 11159-0S010 |
3UR#..USK5# *164,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# *165,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11159-38010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11159-0P010 |
3UR#..USK5# *164,NO.1 |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
2 | ||
| 11159-31010 |
3UR#..USK5# *165,NO.1 |
2 | ||
| 11159-31010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
2 | ||
| 11159-0S010 |
3UR#..USK5# *164,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# *165,NO.2 |
1 | ||
| 11159-38010 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11159-38010 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11159-0P010 |
3UR#..USK5# *164,NO.1 |
2 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-38150 |
3URFE..USK5# *163,WHITE PAINTED |
1 | ||
| 12281-38030 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12281-38060 |
3URFE..USK5# *163,GREEN PAINTED |
1 | ||
| 12281-38150 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 12281-38150 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12281-38030 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 12281-38060 |
3URFE..USK5# *163,GREEN PAINTED |
1 | ||
| 12281-38150 |
3URFE..USK5# *163,WHITE PAINTED |
1 | ||
| 12281-38150 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 12281-38150 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| Common parts | ||||
| 90119-14120 | ||||
| 90119-A0166 | ||||
| 90126-08026 | ||||
| 90126-08047 | ||||
| 90126-08050 | ||||
| 90126-08060 | ||||
| 90126-A0016 | ||||
| 90126-A0017 | ||||
| 90180-10007 | ||||
| 90254-11006 | ||||
| 90430-10024 | ||||

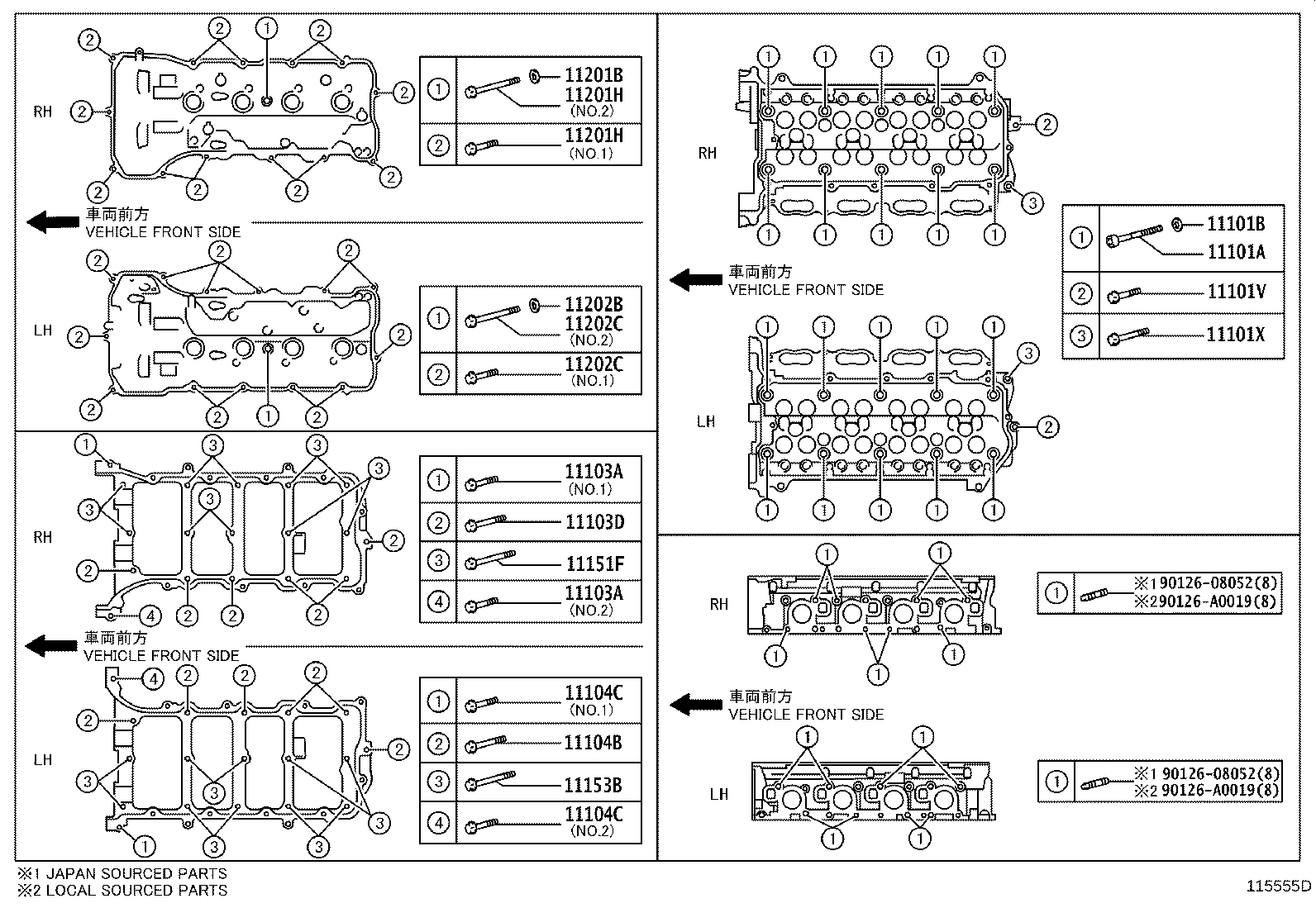

ILLUST NO. 3 OF 3(0701- )3UR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02164 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
20 | ||
| 90910-02164 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
20 | ||
| 90201-11034 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
20 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91551-80825 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 91551-80825 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11101X - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91551-F0855 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
2 | ||
| 91551-F0855 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
2 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-80625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
1 | ||
| 91551-80625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
1 | ||
| 91551-L0830 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 91551-L0830 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-80625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
1 | ||
| 91551-80625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
1 | ||
| 91551-L0830 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 91551-L0830 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11103D - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) | ||||
| 91551-G0845 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
6 | ||
| 91551-G0845 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
6 | ||
| 11104B - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) | ||||
| 91551-G0845 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
6 | ||
| 91551-G0845 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
6 | ||
| 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) | ||||
| 91551-80625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
1 | ||
| 91551-L0830 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 91551-80625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
1 | ||
| 91551-L0830 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11104C - BOLT(FOR CAMSHAFT HOUSING SET LH) | ||||
| 91551-80625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
1 | ||
| 91551-L0830 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 91551-80625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
1 | ||
| 91551-L0830 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 91551-G0865 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
10 | ||
| 91551-G0865 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
10 | ||
| 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 91551-G0865 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
10 | ||
| 91551-G0865 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
10 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08045 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 90210-08045 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-80870 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 91551-A0625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
13 | ||
| 91551-A0625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
13 | ||
| 91551-80870 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-80870 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 91551-A0625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
13 | ||
| 91551-A0625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
13 | ||
| 91551-80870 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) | ||||
| 90210-08045 |
3URFE..USK5# ENGINE NO.=3XXXXXX |
1 | ||
| 90210-08045 |
3UR#..USK5# ENGINE NO.=5XXXXXX |
1 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 91551-A0625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
13 | ||
| 91551-A0625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
13 | ||
| 91551-80870 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 91551-80870 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 91551-A0625 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.1 |
13 | ||
| 91551-A0625 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.1 |
13 | ||
| 91551-80870 |
3UR#..USK5# E/G NO.=5XXXXXX,NO.2 |
1 | ||
| 91551-80870 |
3URFE..USK5# E/G NO.=3XXXXXX,NO.2 |
1 | ||
| Common parts | ||||
| 90126-08052 | ||||
| 90126-A0019 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
