USK55L-TRTDKA (2009)
Toyota Tundra
ILLUST NO. 3 OF 3(0611-1308)
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
UPK52,57;UPK51,55,56,USK50..D,L |
2 | ||
| 90980-04177 |
USK51,52,55,56,57 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
UPK52,57;UPK51,55,56,USK50..D,L |
2 | ||
| 90980-04177 |
USK51,52,55,56,57 |
2 | ||
| Common parts | ||||
| 90080-11545 | ||||

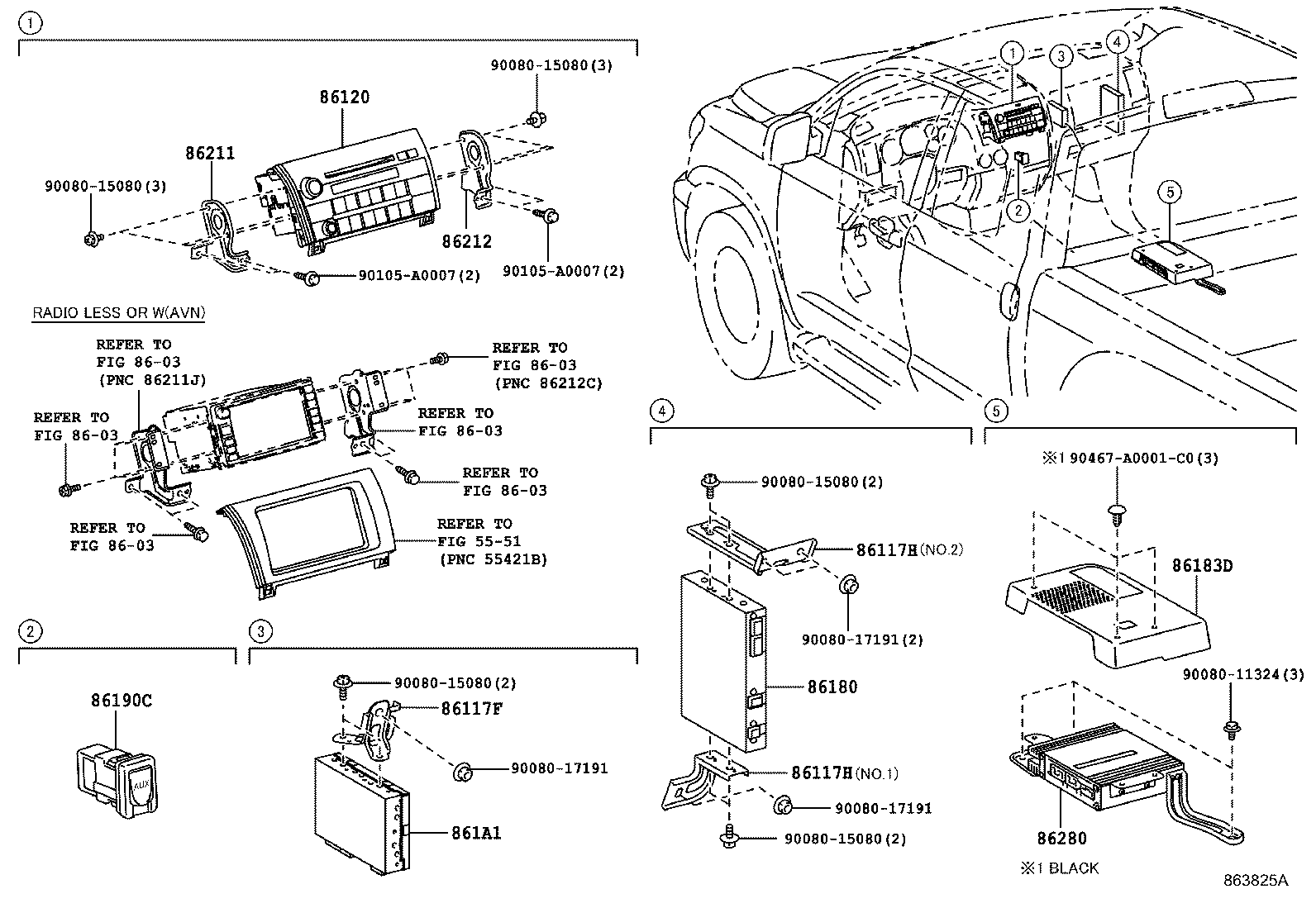

ILLUST NO. 1 OF 3(0904-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86117F - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-0C040 |
UPK51,55,56,USK50..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86117-0C040 |
GSK5#,UPK50,USK51,55,56..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-0C270 |
UPK52,57;UPK51,55,56,USK50..D DELPHI,ID=AD1812,AUDIO-RADIO LESS |
1 | ||
| 86120-0C270 |
UPK52,57;UPK51,55,56,USK50..D DELPHI,ID=AD1812 |
1 | ||
| 86120-0C300 |
UPK51,55,56..D PANASONIC,ID=A51894,CANADA SPEC&AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C290 |
UPK51,55,56,USK50..D PANASONIC,ID=A51893,AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C290 |
GSK5#,UPK50,USK51,55,56..D PANASONIC,ID=A51893,AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C270 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 DELPHI,ID=AD1812,AUDIO-RADIO LESS |
1 | ||
| 86120-0C300 |
USK51,55,56..HTWC..D PANASONIC,ID=A51894,CANADA SPEC&AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C270 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 DELPHI,ID=AD1812 |
1 | ||
| 86120-0C270 |
UPK52,57;UPK51,55,56,USK50..D DELPHI,ID=AD1812,TYPE B:REFER ILLUST. |
1 | ||
| 86120-0C300 |
UPK51,55,56..D PANASONIC,ID=A51894,TYPE C:REFER ILLUST. |
1 | ||
| 86120-0C290 |
UPK51,55,56,USK50..D PANASONIC,ID=A51893,TYPE C:REFER ILLUST. |
1 | ||
| 86120-0C270 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 DELPHI,ID=AD1812,TYPE B:REFER ILLUST. |
1 | ||
| 86120-0C270 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 DELPHI,ID=AD1812,TYPE B:REFER ILLUST. |
1 | ||
| 86120-0C300 |
USK51,55,56..HTWC..D PANASONIC,ID=A51894,TYPE C:REFER ILLUST. |
1 | ||
| 86120-0C290 |
GSK5#,UPK50,USK51,55,56..D PANASONIC,ID=A51893,TYPE C:REFER ILLUST. |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-02010 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 86190-02010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 86190-0C020 |
GSK5#,UPK50,USK51,55,56..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86190-0C020 |
UPK51,55,56,USK50..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86190-0C020 |
GSK5#,UPK50,USK51,55,56..D AUDIO-ACCESSORY AUDIO & 4SPEAKER |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A1-0E020 |
UPK51,55,56,USK50..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 861A1-0E020 |
GSK5#,UPK50,USK51,55,56..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 861A1-0E040 |
GSK5#,UPK50,USK51,55,56..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 86211-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 86212-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| Common parts | ||||
| 90080-11324 | ||||
| 90080-15080 | ||||
| 90080-17191 | ||||
| 90105-A0007 | ||||
| 90467-A0001C0 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8603 | ||||
ILLUST NO. 2 OF 3(0611-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-0C270 |
UPK52,57;UPK51,55,56,USK50..D DELPHI,ID=AD1812,AUDIO-RADIO LESS |
1 | ||
| 86120-0C270 |
UPK52,57;UPK51,55,56,USK50..D DELPHI,ID=AD1812 |
1 | ||
| 86120-0C300 |
UPK51,55,56..D PANASONIC,ID=A51894,CANADA SPEC&AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C290 |
UPK51,55,56,USK50..D PANASONIC,ID=A51893,AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C290 |
GSK5#,UPK50,USK51,55,56..D PANASONIC,ID=A51893,AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C270 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 DELPHI,ID=AD1812,AUDIO-RADIO LESS |
1 | ||
| 86120-0C300 |
USK51,55,56..HTWC..D PANASONIC,ID=A51894,CANADA SPEC&AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER |
1 | ||
| 86120-0C270 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 DELPHI,ID=AD1812 |
1 | ||
| 86120-0C270 |
UPK52,57;UPK51,55,56,USK50..D DELPHI,ID=AD1812,TYPE B:REFER ILLUST. |
1 | ||
| 86120-0C300 |
UPK51,55,56..D PANASONIC,ID=A51894,TYPE C:REFER ILLUST. |
1 | ||
| 86120-0C290 |
UPK51,55,56,USK50..D PANASONIC,ID=A51893,TYPE C:REFER ILLUST. |
1 | ||
| 86120-0C270 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 DELPHI,ID=AD1812,TYPE B:REFER ILLUST. |
1 | ||
| 86120-0C270 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 DELPHI,ID=AD1812,TYPE B:REFER ILLUST. |
1 | ||
| 86120-0C300 |
USK51,55,56..HTWC..D PANASONIC,ID=A51894,TYPE C:REFER ILLUST. |
1 | ||
| 86120-0C290 |
GSK5#,UPK50,USK51,55,56..D PANASONIC,ID=A51893,TYPE C:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90011-25161 | ||||
| 90011-25162 | ||||
| 90011-25163 | ||||
| 90011-25164 | ||||
| 90011-25171 | ||||
| 90011-25172 | ||||
