USK55L-TRTDKA (2009)
Toyota Tundra
ILLUST NO. 5 OF 9(0611-1008)GSK51,UCK51,56,UPK51,56,USK51,56..L,S; (0611-1008)GSK50,UCK50,52,55,57,

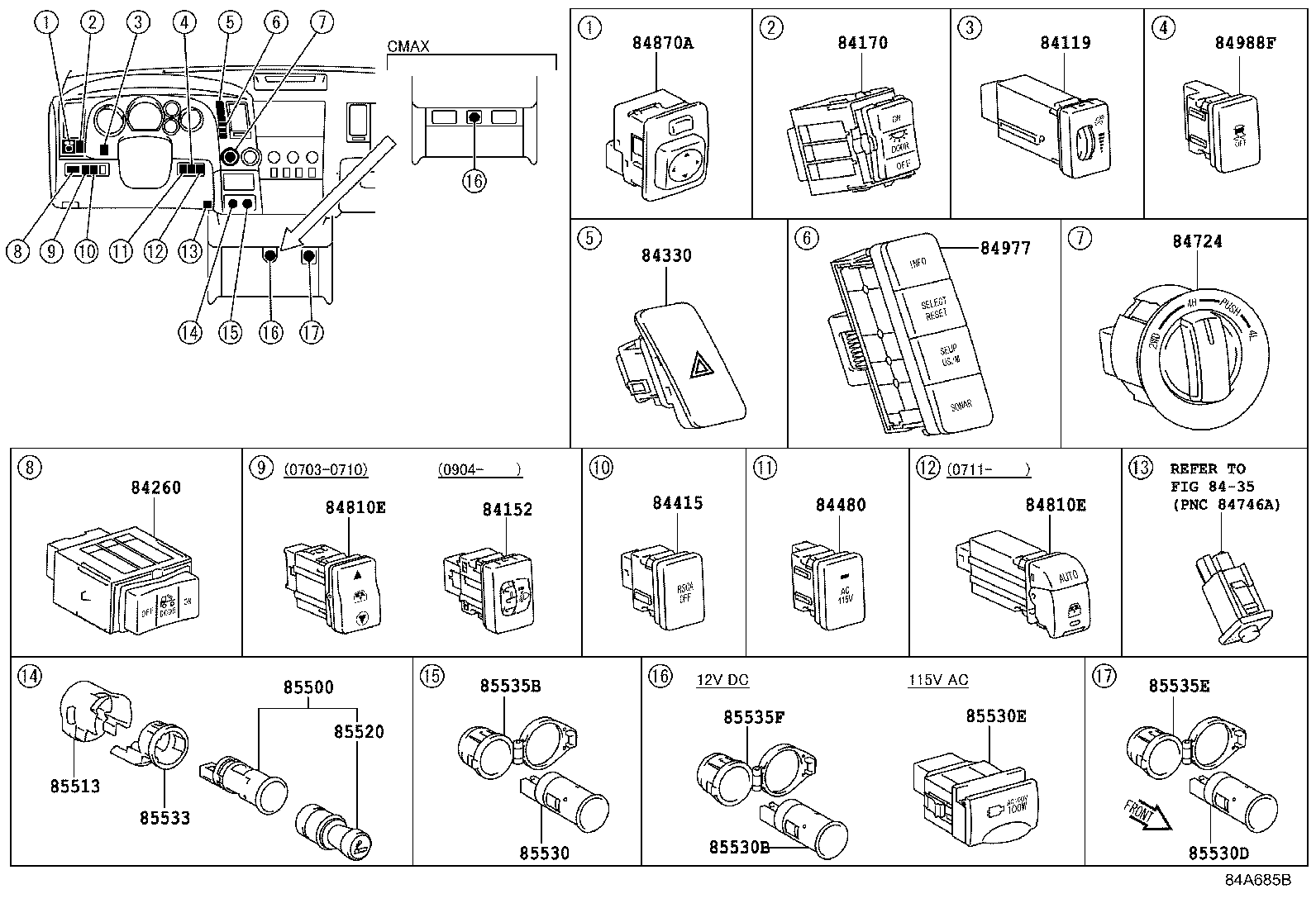

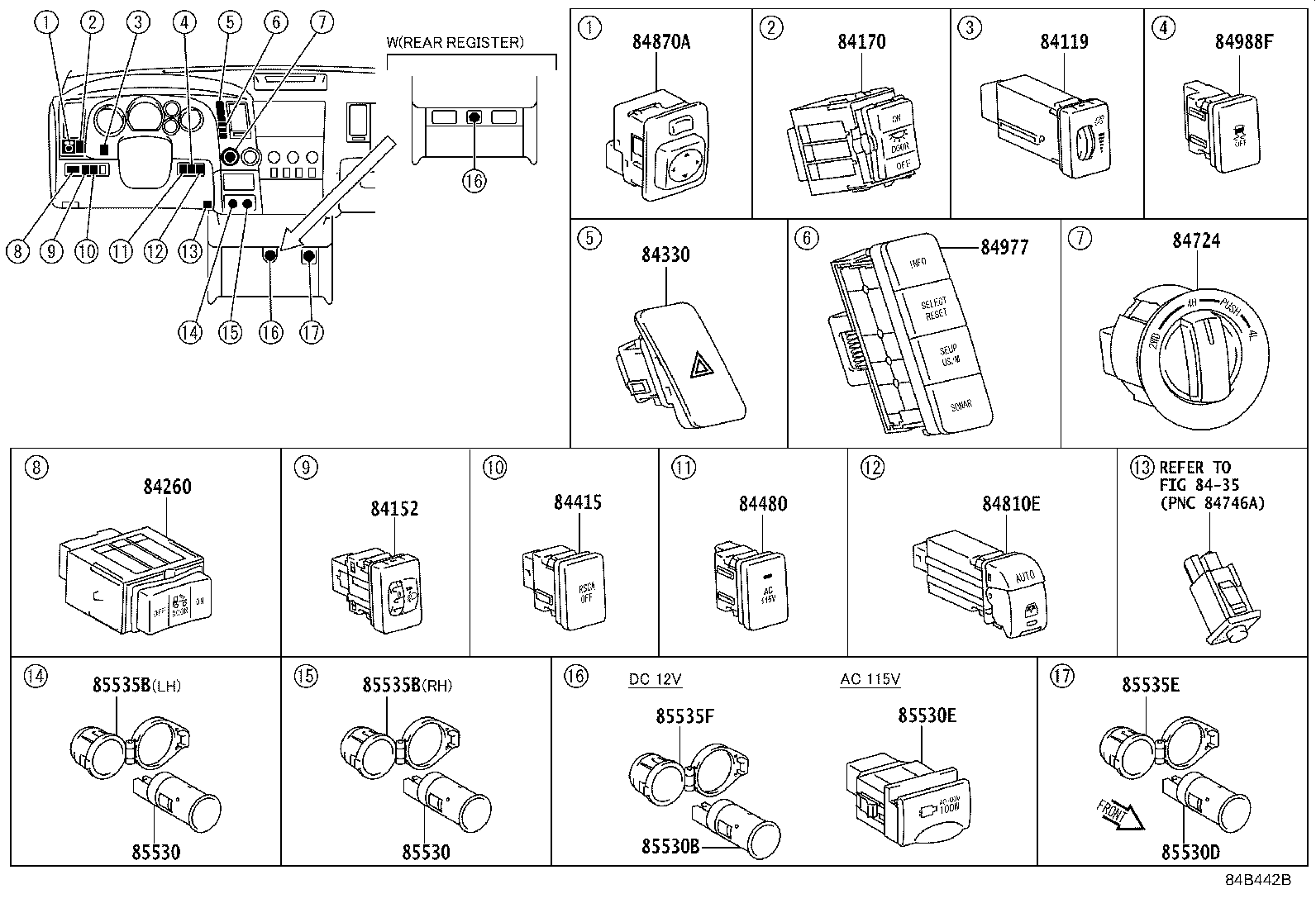

INSTRUMENT PANEL(SEPARATE SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0C030 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84119-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84170-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84260 - SWITCH ASSY, DECK LAMP | ||||
| 84267-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84267-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84332-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-0C020 |
UPK56..DCB..S;USK55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE |
1 | ||
| 84724-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724-0C020 |
USK55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-08010 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84870-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84977 - SWITCH, DRIVE MONITOR | ||||
| 84977-0C080 |
UPK52,57;UPK51,55,56,USK50..D CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84977-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84988-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85500-28080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-02010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85513-02010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85520-28010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530-AE010 |
GSK5#,UPK5#,USK5# |
2 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-AE010 |
GSK5#,UPK5#,USK5#..SR5 |
1 | ||
| 85530-AE010 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85533-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C060 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-0C050 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-AE010 |
GSK5#,UPK5#,USK5# LH |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0C060 |
GSK50,UPK50,55,USK50,55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85535-AE020C0 |
GSK5#,UPK5#,USK5#..SR5 BLACK,TRIM1#,2# |
1 | ||
| 85535-0C050 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
| 8435 | ||||
ILLUST NO. 6 OF 9(0611-1308)
INTEGRATION PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55912D - HOUSING, HEATER CONTROL | ||||
| 55912-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 55912-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 55912D - HOUSING, HEATER CONTROL | ||||
| 55912-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 55912-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0CC40 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84010-0CC80 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD50 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84010-0CC80 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC90 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CD00 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD60 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL&AIR CONDITIONER-WITHOUT |
1 | ||
| 84010-0CD00 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD50 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84010-0CC90 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC80 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC90 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC40 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 |
1 | ||
| 84010-0CC80 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC81 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC90 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC41 |
GSK5#,UPK5#,USK5#..(DCB,RCB)..SR5 |
1 | ||
| 84010-0CC91 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CD01 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD01 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC91 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC81 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD01 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC82 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC42 |
GSK5#,UPK5#,USK5#..(DCB,RCB)..SR5 |
1 | ||
| 84010-0CD01 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC82 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD02 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD02 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD02 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC92 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC82 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & *MIH |
1 | ||
| 84010-0CC92 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CD02 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0CC40 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84010-0CC80 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD50 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84010-0CC80 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC90 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CD00 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD60 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL&AIR CONDITIONER-WITHOUT |
1 | ||
| 84010-0CD00 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD50 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84010-0CC90 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC80 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC90 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC40 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 |
1 | ||
| 84010-0CC80 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC81 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD00 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC90 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC41 |
GSK5#,UPK5#,USK5#..(DCB,RCB)..SR5 |
1 | ||
| 84010-0CC91 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CD01 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD01 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC91 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC81 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD01 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC82 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CC42 |
GSK5#,UPK5#,USK5#..(DCB,RCB)..SR5 |
1 | ||
| 84010-0CD01 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC82 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD02 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CD02 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84010-0CD02 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84010-0CC92 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CC82 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & *MIH |
1 | ||
| 84010-0CC92 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84010-0CD02 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-0C650 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84013-0C710 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84013-0C660 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84013-0C660 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84013-0C710 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84013-0C660 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C650 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84013-0C660 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C710 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL&AIR CONDITIONER-WITHOUT |
1 | ||
| 84013-0C660 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84013-0C660 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-0C650 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84013-0C710 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84013-0C660 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84013-0C660 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84013-0C710 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84013-0C660 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C650 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84013-0C660 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C710 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL&AIR CONDITIONER-WITHOUT |
1 | ||
| 84013-0C660 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84013-0C660 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84013-0C660 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-0C721 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84014-0C741 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C610 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84014-0C760 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C750 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C750 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C760 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C741 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C610 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84014-0C741 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C620 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL&AIR CONDITIONER-WITHOUT |
1 | ||
| 84014-0C721 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 |
1 | ||
| 84014-0C760 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C750 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C741 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C750 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C742 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C761 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C722 |
GSK5#,UPK5#,USK5#..(DCB,RCB)..SR5 |
1 | ||
| 84014-0C742 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C742 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & *MIH |
1 | ||
| 84014-0C751 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C761 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C761 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C751 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C761 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-0C721 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84014-0C741 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C610 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84014-0C760 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C750 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C750 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C760 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C741 |
UPK52,57;UPK51,55,56,USK50..D OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C610 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&AIR CONDITIONER-WITHOUT |
1 | ||
| 84014-0C741 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C620 |
UPK50,51,55,56,USK50,51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL&AIR CONDITIONER-WITHOUT |
1 | ||
| 84014-0C721 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 |
1 | ||
| 84014-0C760 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C750 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C741 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C760 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C750 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C742 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C761 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C722 |
GSK5#,UPK5#,USK5#..(DCB,RCB)..SR5 |
1 | ||
| 84014-0C742 |
UPK5#,USK5#..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C742 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & *MIH |
1 | ||
| 84014-0C751 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C761 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH |
1 | ||
| 84014-0C761 |
UPK5#,USK5#..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| 84014-0C751 |
GSK51,UPK51,56,USK52,57..DCB;UPK50,USK51,55,56..(DCB,RCB)..SR5 WORK TRUCK PACKAGE&OUTSIDE REAR VIEW MIRROR-MANUAL |
1 | ||
| 84014-0C761 |
UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&OUTSIDE REAR VIEW MIRROR-EXTENDED TYPE & *RCM & *MIH |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90467-A0011 | ||||
ILLUST NO. 7 OF 9(0611-1308)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84052-71010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02660 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84140-02670 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 FRONT FOG LAMP-WITH(CLEAR) |
1 | ||
| 84140-02670 |
UPK52,57;UPK51,55,56,USK50..D FRONT FOG LAMP-WITH(CLEAR) |
1 | ||
| 84140-02660 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0C010C0 |
UPK51,55,56,USK50..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 84250-0C010E0 |
UPK51,55,56,USK50..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,DK. BROWN,TRIM4# |
1 | ||
| 84250-0C010C0 |
GSK5#,UPK50,USK51,55,56..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM1#,2#,44 |
1 | ||
| 84250-0C010E0 |
GSK5#,UPK50,USK51,55,56..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,DK. BROWN,TRIM44 |
1 | ||
| 84250-0C010C0 |
GSK5#,UPK50,USK51,55,56..D AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 84250-0C010C0 |
GSK5#,UPK50,USK51,55,56..D AUDIO-ACCESSORY AUDIO & 4SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84306-0E010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84306-0E010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84450-71010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02610 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84652-02610 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84652-04132 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 84652-04132 |
UPK52,57;UPK51,55,56,USK50..D WORK TRUCK PACKAGE |
1 | ||
| 84652-04132 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE |
1 | ||
| 84652-04132 |
GSK5#,UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-34020 |
UPK52,57;UPK51,55,56,USK50..D NO.1 |
1 | ||
| 84722-34020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 NO.1 |
1 | ||
| 84722-34030 |
UPK52,57;UPK51,55,56,USK50..D NO.2 |
1 | ||
| 84722-34030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 NO.2 |
1 | ||
| 84722-34021 |
GSK5#,UPK5#,USK5#..SR5 NO.1 |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-34020 |
UPK52,57;UPK51,55,56,USK50..D NO.1 |
1 | ||
| 84722-34020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 NO.1 |
1 | ||
| 84722-34030 |
UPK52,57;UPK51,55,56,USK50..D NO.2 |
1 | ||
| 84722-34030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 NO.2 |
1 | ||
| 84722-34021 |
GSK5#,UPK5#,USK5#..SR5 NO.1 |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-34010 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 85431-34010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85432-71010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-06040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 89245-06040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16107 | ||||
| 93315-13014 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 4501 | ||||
ILLUST NO. 8 OF 9(0611-1308)
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-16099 | ||||
| 90157-A0004 | ||||
| Linked diagrams | ||||
| 8421 | ||||
ILLUST NO. 9 OF 9(0611-1308)
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0C023 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 83320-0C080 |
GSK5#,UPK5#,USK5#..HTWC |
1 | ||
| 83320-0C023 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
UPK51,55,56,USK50..D |
2 | ||
| 84231-0C010 |
GSK5#,UPK50,USK51,55,56..D |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
UPK51,55,56,USK50..D |
2 | ||
| 84231-0C010 |
GSK5#,UPK50,USK51,55,56..D |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
UPK51,55,56,USK50..D |
2 | ||
| 84231-0C010 |
GSK5#,UPK50,USK51,55,56..D |
2 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-0C010 |
UPK51,55,56,USK50..D |
2 | ||
| 84231-0C010 |
GSK5#,UPK50,USK51,55,56..D |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84810-06030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0C010 |
UPK51,55,56,USK50..D |
1 | ||
| 84820-0C010 |
GSK5#,UPK50,USK51,55,56..D |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84930-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-16098 | ||||
| 90159-A0007 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||

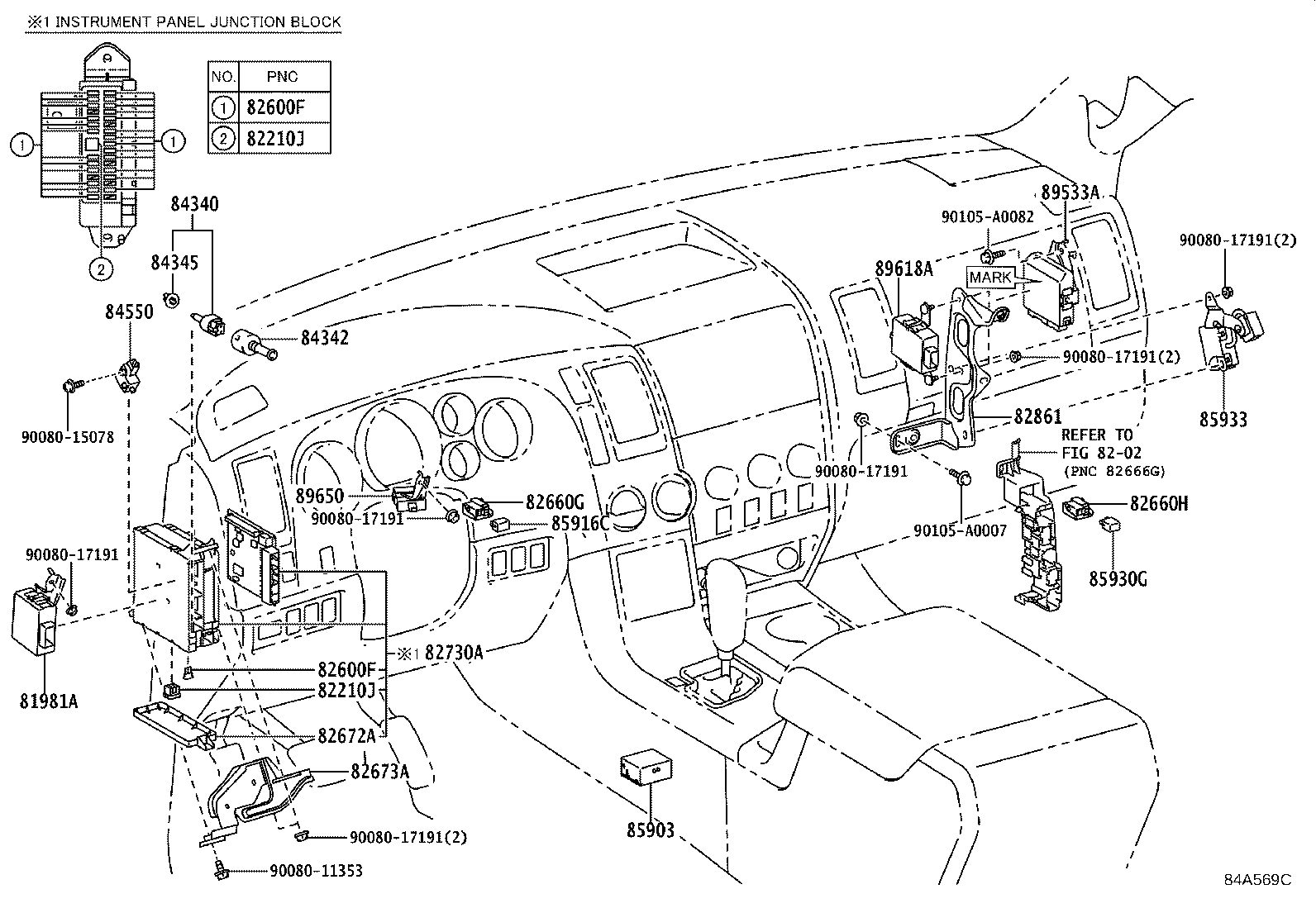

ILLUST NO. 4 OF 9(0904-1308)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81981A - FLASHER, TURN SIGNAL | ||||
| 81980-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 81980-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 81980-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 81980-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08294 |
UPK52,57;UPK51,55,56,USK50..D,L 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UPK52,57;UPK51,55,56,USK50..D,L 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08298 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08296 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08298 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08294 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08294 |
UPK52,57;UPK51,55,56,USK50..D,L 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UPK52,57;UPK51,55,56,USK50..D,L 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08298 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08296 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08298 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08294 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82051 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82052 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82050 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09020 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90080-82054 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90982-09021 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82055 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(L) |
1 | ||
| 90982-09023 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09025 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82053 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82052 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09022 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(J) |
1 | ||
| 90080-82053 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-A9001 |
UPK52,57;UPK51,55,56,USK50..D,L 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90982-09021 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82054 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82051 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09025 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-A9001 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82050 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09022 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 25A,MINI FUSE |
1 | ||
| 90982-09024 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(J) |
1 | ||
| 90080-82055 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82051 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82052 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82050 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09020 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90080-82054 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90982-09021 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82055 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(L) |
1 | ||
| 90982-09023 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09025 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82053 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82052 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09022 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(J) |
1 | ||
| 90080-82053 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-A9001 |
UPK52,57;UPK51,55,56,USK50..D,L 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90982-09021 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82054 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82051 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09025 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-A9001 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82050 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09022 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 25A,MINI FUSE |
1 | ||
| 90982-09024 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(J) |
1 | ||
| 90080-82055 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(L) |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 82660-20340 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-53010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82660-53010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0C090 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82672-0C090 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82673-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0C241 |
UPK52,57;UPK51,55,56,USK50..D ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C241 |
UPK52,57;UPK51,55,56,USK50..D ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C281 |
UPK52,57;UPK51,55,56,USK50..D ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82730-0C271 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C301 |
UPK51,55,56,USK50..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 82730-0C261 |
UPK52,57;UPK51,55,56,USK50..D DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C301 |
UPK51,55,56,USK50..D WORK TRUCK PACKAGE |
1 | ||
| 82730-0C291 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 82730-0C271 |
UPK51,55,56,USK50..D WORK TRUCK PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C241 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C241 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C281 |
UPK52,57;UPK51,55,56,USK50..D ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 82730-0C301 |
GSK5#,UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 82730-0C281 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 82730-0C281 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82730-0C271 |
GSK5#,UPK50,USK51,55,56..D WORK TRUCK PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C271 |
GSK5#,UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C242 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C291 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 82730-0C261 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C242 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C301 |
GSK5#,UPK50,USK51,55,56..D WORK TRUCK PACKAGE |
1 | ||
| 82730-0C262 |
GSK5#,UPK5#,USK5#..SR5 DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C282 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82730-0C282 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 82730-0C272 |
GSK5#,UPK50,USK51,55,56..D WORK TRUCK PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C272 |
GSK5#,UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C302 |
GSK5#,UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 82730-0C302 |
GSK5#,UPK50,USK51,55,56..D WORK TRUCK PACKAGE |
1 | ||
| 82730-0C550 |
GSK5#,UPK50,USK51,55,56..D WORK TRUCK PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C292 |
GSK5#,UPK5#,USK5#..SR5 |
1 | ||
| 82730-0C520 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C560 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 82730-0C560 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82730-0C550 |
GSK5#,UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C540 |
GSK5#,UPK5#,USK5#..SR5 DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C520 |
UPK5#,USK5#..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82730-0C580 |
GSK5#,UPK50,USK51,55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 82730-0C580 |
GSK5#,UPK50,USK51,55,56..D WORK TRUCK PACKAGE |
1 | ||
| 82730-0C570 |
GSK5#,UPK5#,USK5#..SR5 |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-0C013 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82861-0C013 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82861-0C014 |
GSK5#,UPK5#,USK5# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09070 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84340-09070 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84342 - COVER, STOP LAMP SWITCH | ||||
| 84342-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84342-08010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84345-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-04030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84550-04030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-06010 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90080-87026 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 (L) |
1 | ||
| 90987-02027 |
UPK52,57;UPK51,55,56,USK50..D (J) |
1 | ||
| 90987-02027 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 (J) |
1 | ||
| 90080-87026 |
UPK52,57;UPK51,55,56,USK50..D (L) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90084-98032 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 90084-98032 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-0C010 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 85933-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-0C031 |
UPK55,56,57,USK55,56,57 MARK=89533-0C031 |
1 | ||
| 89533-0C032 |
UPK56,USK55,56,57 MARK=89533-0C032 |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89670-0C011 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 89670-0C011 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-34020 |
UPK52,57;UPK51,55,56..D,L |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-15078 | ||||
| 90080-17191 | ||||
| 90105-A0007 | ||||
| 90105-A0082 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 9(0611-1008)SR5
INSTRUMENT PANEL(BENCH SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0C030 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84119-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84170-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84260 - SWITCH ASSY, DECK LAMP | ||||
| 84267-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84267-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84332-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-0C020 |
UPK56..DCB..S;USK55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE |
1 | ||
| 84724-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724-0C020 |
USK55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-08010 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84870-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84977 - SWITCH, DRIVE MONITOR | ||||
| 84977-0C080 |
UPK52,57;UPK51,55,56,USK50..D CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84977-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84988-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85500-28080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-02010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85513-02010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85520-28010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530-AE010 |
GSK5#,UPK5#,USK5# |
2 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-AE010 |
GSK5#,UPK5#,USK5#..SR5 |
1 | ||
| 85530-AE010 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85533-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C060 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-0C050 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-AE010 |
GSK5#,UPK5#,USK5# LH |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0C060 |
GSK50,UPK50,55,USK50,55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85535-AE020C0 |
GSK5#,UPK5#,USK5#..SR5 BLACK,TRIM1#,2# |
1 | ||
| 85535-0C050 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
ILLUST NO. 5 OF 9(1008-1308)SR5
INSTRUMENT PANEL(BENCH SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0C030 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84119-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84170-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84260 - SWITCH ASSY, DECK LAMP | ||||
| 84267-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84267-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84332-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-0C020 |
UPK56..DCB..S;USK55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE |
1 | ||
| 84724-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724-0C020 |
USK55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-08010 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84870-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84977 - SWITCH, DRIVE MONITOR | ||||
| 84977-0C080 |
UPK52,57;UPK51,55,56,USK50..D CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84977-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84988-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530-AE010 |
GSK5#,UPK5#,USK5# |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530-AE010 |
GSK5#,UPK5#,USK5# |
2 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-AE010 |
GSK5#,UPK5#,USK5#..SR5 |
1 | ||
| 85530-AE010 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C060 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-0C050 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-AE010 |
GSK5#,UPK5#,USK5# LH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C060 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-0C050 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-AE010 |
GSK5#,UPK5#,USK5# LH |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0C060 |
GSK50,UPK50,55,USK50,55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85535-AE020C0 |
GSK5#,UPK5#,USK5#..SR5 BLACK,TRIM1#,2# |
1 | ||
| 85535-0C050 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
ILLUST NO. 5 OF 9(1008-1308)GSK51,USK51,56..L,S ; (1008-1308)GSK50,UPK5#,USK52,55,57
INSTRUMENT PANEL(SEPARATE SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0C030 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84119-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84152-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
1 | ||
| 84170 - SWITCH ASSY, INTERIOR DOME LAMP | ||||
| 84170-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84170-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84260 - SWITCH ASSY, DECK LAMP | ||||
| 84267-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84267-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 84332-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-0C020 |
UPK56..DCB..S;USK55,56,57..(DCB,RCB)..SR5 WORK TRUCK PACKAGE |
1 | ||
| 84724-0C030 |
USK55,56;UPK56,USK57..S |
1 | ||
| 84724-0C020 |
USK55,56..D WITHOUT(PACKAGE OPTION 2) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-08010 |
UPK52,57;UPK51,55,56,USK50..D |
1 | ||
| 84870-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 |
1 | ||
| 84977 - SWITCH, DRIVE MONITOR | ||||
| 84977-0C080 |
UPK52,57;UPK51,55,56,USK50..D CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84977-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 84988-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530-AE010 |
GSK5#,UPK5#,USK5# |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85530-AE010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 85530-AE010 |
GSK5#,UPK5#,USK5# |
2 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-AE010 |
GSK5#,UPK5#,USK5#..SR5 |
1 | ||
| 85530-AE010 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C060 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-0C050 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-AE010 |
GSK5#,UPK5#,USK5# LH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C060 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-0C050 |
GSK5#,UPK5#,USK5# RH |
1 | ||
| 85535-AE010 |
GSK5#,UPK5#,USK5# LH |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0C060 |
GSK50,UPK50,55,USK50,55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| 85535-AE020C0 |
GSK5#,UPK5#,USK5#..SR5 BLACK,TRIM1#,2# |
1 | ||
| 85535-0C050 |
GSK50,UPK50,USK55 NUMBER OF PASSENGER-FRONT:2 |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
| 8435 | ||||
ILLUST NO. 3 OF 9(0611-1308)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A010 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L |
1 | ||
| 28300-0A010 |
1URFE..UPK51,56..S;1GRFE,1URFE,3UR#..GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 28800L - RELAY, SUB BATTERY | ||||
| 90987-02027 |
1URFE,3URFE..UPK51,55,56,USK50..D,L TOWING PACKAGE-WITH,(J) |
1 | ||
| 90987-02027 |
1URFE..UPK51,56..S;1URFE,3UR#..UPK50,USK51,55,56 TOWING PACKAGE-WITH,(J) |
1 | ||
| 90080-87026 |
1URFE,3URFE..UPK51,55,56,USK50..D,L TOWING PACKAGE-WITH,(L) |
1 | ||
| 90080-87026 |
1URFE..UPK51,56..S;1URFE,3UR#..UPK50,USK51,55,56 TOWING PACKAGE-WITH,(L) |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08294 |
UPK52,57;UPK51,55,56,USK50..D,L 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UPK52,57;UPK51,55,56,USK50..D,L 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08298 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08296 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08298 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08294 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08294 |
UPK52,57;UPK51,55,56,USK50..D,L 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
UPK52,57;UPK51,55,56,USK50..D,L 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08298 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08296 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08298 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08294 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82051 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82052 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82050 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09020 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90080-82054 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90982-09021 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82055 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(L) |
1 | ||
| 90982-09023 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09025 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82053 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82052 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09022 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(J) |
1 | ||
| 90080-82053 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-A9001 |
UPK52,57;UPK51,55,56,USK50..D,L 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90982-09021 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82054 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82051 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09025 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-A9001 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82050 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09022 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 25A,MINI FUSE |
1 | ||
| 90982-09024 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(J) |
1 | ||
| 90080-82055 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82051 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(L) |
1 | ||
| 90080-82052 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90080-82050 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09020 |
UPK52,57;UPK51,55,56,USK50..D,L 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90080-82054 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90982-09021 |
UPK52,57;UPK51,55,56,USK50..D,L 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82055 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(L) |
1 | ||
| 90982-09023 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90982-09025 |
UPK52,57;UPK51,55,56,USK50..D,L 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90080-82053 |
UPK52,57;UPK51,55,56,USK50..D,L 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90080-82052 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(L) |
1 | ||
| 90982-09022 |
UPK52,57;UPK51,55,56,USK50..D,L 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK52,57;UPK51,55,56,USK50..D,L 25A,MINI FUSE,(J) |
1 | ||
| 90080-82053 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(L) |
1 | ||
| 90982-A9001 |
UPK52,57;UPK51,55,56,USK50..D,L 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(J) |
1 | ||
| 90982-09021 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(J) |
1 | ||
| 90080-82054 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GREEN,(L) |
1 | ||
| 90080-82051 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 10A,MINI FUSE,RED,(L) |
1 | ||
| 90982-09025 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 30A,MINI FUSE,GRN,(J) |
1 | ||
| 90982-A9001 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 20A,MINI FUSE,YELLOW,(J) |
1 | ||
| 90080-82050 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 7.5A,MINI FUSE,BROWN,(L) |
1 | ||
| 90982-09022 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 15A,MINI FUSE,BLUE,(J) |
1 | ||
| 90982-09024 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 25A,MINI FUSE |
1 | ||
| 90982-09024 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(J) |
1 | ||
| 90080-82055 |
UPK51,56..S;UPK50,USK51,52,55,56,57 25A,MINI FUSE,(L) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
UPK5#,USK5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0C030 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 82620-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82641-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
UPK52,57;UPK51,55,56,USK50..D,L |
2 | ||
| 82660-0H070 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
UPK52,55,57,USK50;UPK51,56..(DCB,RCB)..(D,L) |
4 | ||
| 82660-52010 |
UPK5#,USK5#..(DCB,RCB)..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
3 | ||
| 82660-52010 |
UPK51,56..DCB..S;UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 |
4 | ||
| 82660-52010 |
UPK5#,USK5# |
5 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0C100 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82660-0C100 |
UPK51,56..DCB..S;USK56..DCB..HTWC..L;USK56..(DCB,RCB)..SR5;UPK50,USK51,52,55,57..DCB,RCB |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
UPK52,57;UPK51,55,56,USK50..D,L |
3 | ||
| 82660-26270 |
UPK51,56..DCB..S;USK56..DCB..HTWC..L;USK56..(DCB,RCB)..SR5;UPK50,USK51,52,55,57..DCB,RCB |
3 | ||
| 82660-26270 |
UPK5#,USK5#..(DCB,RCB)..SR5..HTWC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 82660-0C110 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82660-0C110 |
UPK5#,USK5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0C251 |
UPK5#,USK5#..HTWC |
1 | ||
| 82661-0C250 |
UPK51,56..S;UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 82661-0C250 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82661-0C252 |
UPK5#,USK5#..HTWC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C060 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82663-0C060 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82664 - BLOCK, CONNECTOR HOLDER | ||||
| 82664-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 82664-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82668 - COVER, CONNECTOR HOLDER BLOCK, UPPER | ||||
| 82668-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82668-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82669 - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82669-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C060 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 82741-0C060 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87026 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 FRONT FOG LAMP-WITH(CLEAR) |
1 | ||
| 90080-87026 |
UPK52,57;UPK51,55,56,USK50..D FRONT FOG LAMP-WITH(CLEAR) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 90080-87024 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85916Y - RELAY, TOWING TAIL | ||||
| 90080-87026 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 (L) |
1 | ||
| 90987-02027 |
UPK52,57;UPK51,55,56,USK50..D,L (J) |
1 | ||
| 90080-87026 |
UPK52,57;UPK51,55,56,USK50..D,L (L) |
1 | ||
| 90987-02027 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 (J) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87024 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 90080-87024 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 85940F - RELAY ASSY, WINDSHIELD DEICER | ||||
| 90080-87026 |
UPK52,57;UPK51,55,56,USK50..D,L WINDSHIELD DEICER-WITH |
1 | ||
| 90080-87026 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 WINDSHIELD DEICER-WITH |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
UPK52,57;UPK51,55,56,USK50..D ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 90080-87026 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 90080-87026 |
UPK52,57;UPK51,55,56,USK50..D ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 90080-87026 |
UPK51,56..S;UPK50,USK51,52,55,56,57..SR5 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & *GBS) |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02028 |
UPK52,57;UPK51,55,56,USK50..D AIR CONDITIONER-WITHOUT |
1 | ||
| 90987-02028 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 90987-02028 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 90987-02028 |
UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5 AIR CONDITIONER-WITHOUT |
1 | ||
| Common parts | ||||
| 90080-11221 | ||||
| 90080-11273 | ||||
| 90080-11368 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
