USK55L-TRTDKA (2009)

Toyota Tundra

Production Apr 2009 - Aug 2013
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0904-1308)

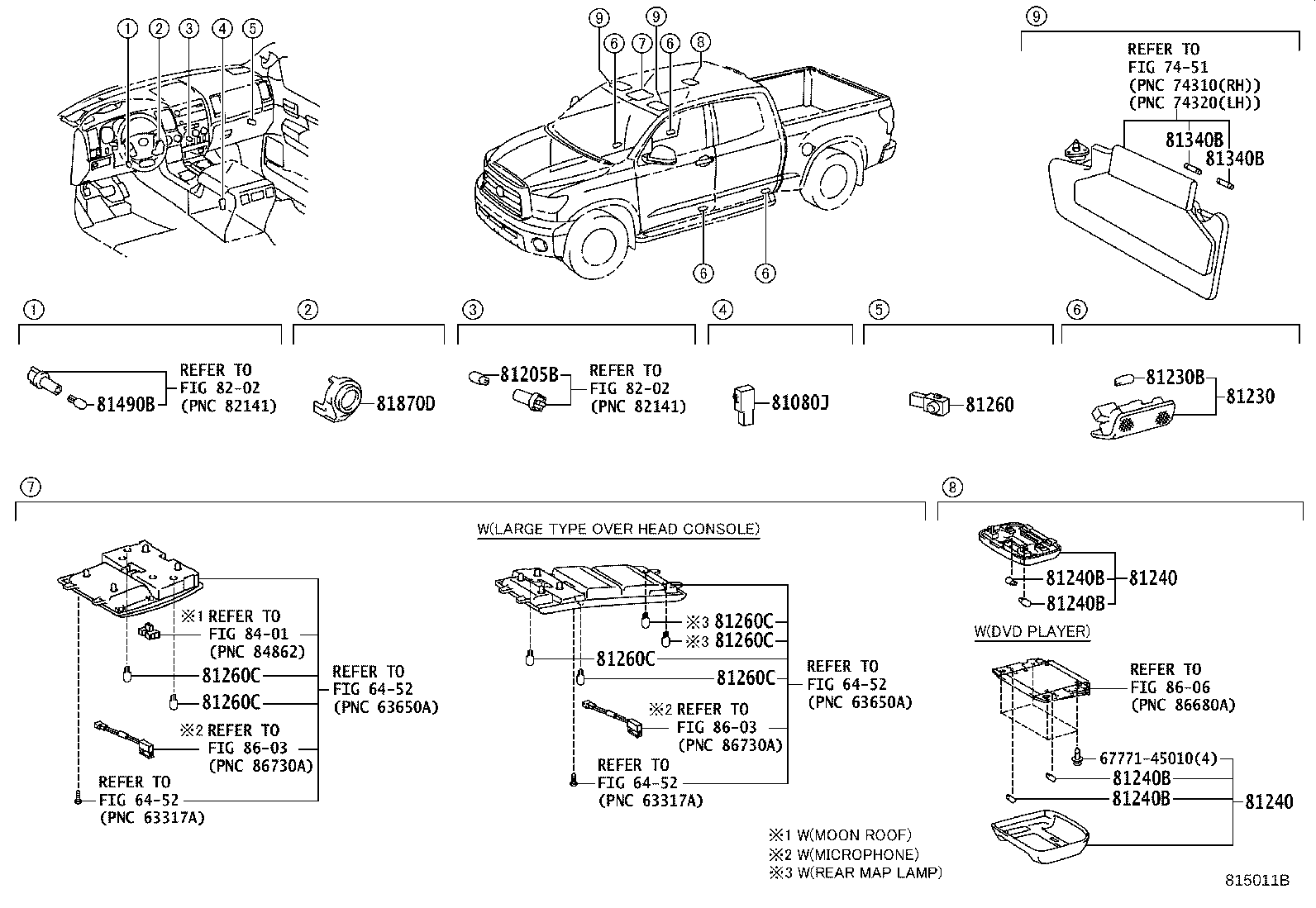

Click highlighted areas on diagram

diagram 6452 6452 6452 6452 6777145010 7451 81080J 81205B 81230 81230B 81240 81240 81240B 81240B 81240B 81240B 81260 81260C 81260C 81260C 81260C 81260C 81260C 81340B 81340B 81490B 81870D 8202 8202 8401 8603 8603 8606
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-48010

GSK50,UPK50,55,USK50,55

NUMBER OF PASSENGER-FRONT:2

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11041

GSK5#,UPK5#,USK5#..SR5

14V 1.4W

 1
81230 - LAMP ASSY, COURTESY
81230-47010

UPK51,55,56,USK50..D

 2
81230-47010

GSK5#,UPK50,USK51,55,56..D

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

UPK52,55,57,USK50;UPK51,56..(DCB,RCB)..(D,L)

12V 5W

 2
90981-12010

UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..DCB,RCB

12V 5W

 2
81260 - LAMP ASSY, GLOVE BOX
81080-48010

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

 1
81080-48010

UPK52,57;UPK51,55,56,USK50..D,L

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

UPK52,55,57,USK50;UPK51,56..(CMAX,RCB)..(D,L)

12V 5W

 2
90084-81002

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

UPK52,55,57,USK50;UPK51,56..(CMAX,RCB)..(D,L)

12V 5W

 2
90084-81002

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

UPK52,55,57,USK50;UPK51,56..(CMAX,RCB)..(D,L)

12V 5W

 2
90084-81002

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

UPK52,55,57,USK50;UPK51,56..(CMAX,RCB)..(D,L)

12V 5W

 2
90084-81002

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

UPK52,55,57,USK50;UPK51,56..(CMAX,RCB)..(D,L)

12V 5W

 2
90084-81002

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

UPK52,55,57,USK50;UPK51,56..(CMAX,RCB)..(D,L)

12V 5W

 2
90084-81002

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5

12V 5W

 2
81490B - BULB (FOR FOOT LAMP)
90981-11041

UPK52,57;UPK51,55,56,USK50..D

14V 1.4W,WORK TRUCK PACKAGE

 1
90981-11041

UPK51,55,56,USK50..D

14V 1.4W,WITHOUT(PACKAGE OPTION 2)

 1
90981-11041

UPK51,56..DCB..S;GSK5#,UPK50,USK51,52,55,56,57..(DCB,RCB)..SR5

14V 1.4W,WORK TRUCK PACKAGE

 1
90981-11041

UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57

14V 1.4W

 1
90981-11041

UPK52,57;UPK51,55,56,USK50..D,L

14V 1.4W

 1
90981-11041

GSK5#,UPK50,USK51,55,56..D

14V 1.4W,WITHOUT(PACKAGE OPTION 2)

 1
Common parts
67771-45010
Linked diagrams
6452
7451
8202
8401
8603
8606
