USK55L-TRTDKA (2009)
Toyota Tundra
ILLUST NO. 2 OF 2(0611-1308)
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249B - HOSE, FUEL | ||||
| 95333-08030 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 95333-08030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0C070 |
GSK50,UPK50,USK55 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0C100 |
GSK50,UPK50,USK55 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-0C210 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77259-0C210 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77262-0C110 |
GSK50,UPK50,USK55 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-0C031 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77263-0C031 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34380 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
3 | ||
| 77285-34380 |
UPK52,57;UPK51,55,56,USK50..D,L |
3 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34380 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
3 | ||
| 77285-34380 |
UPK52,57;UPK51,55,56,USK50..D,L |
3 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-26010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77289-26010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-34370 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
3 | ||
| 77285-34370 |
UPK52,57;UPK51,55,56,USK50..D,L |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77296-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77296-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77412-34010 |
GSK50,UPK50,USK55 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77413-34010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77413-34010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77414-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77414-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| Common parts | ||||
| 90105-A0179 | ||||
| 96133-41301 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

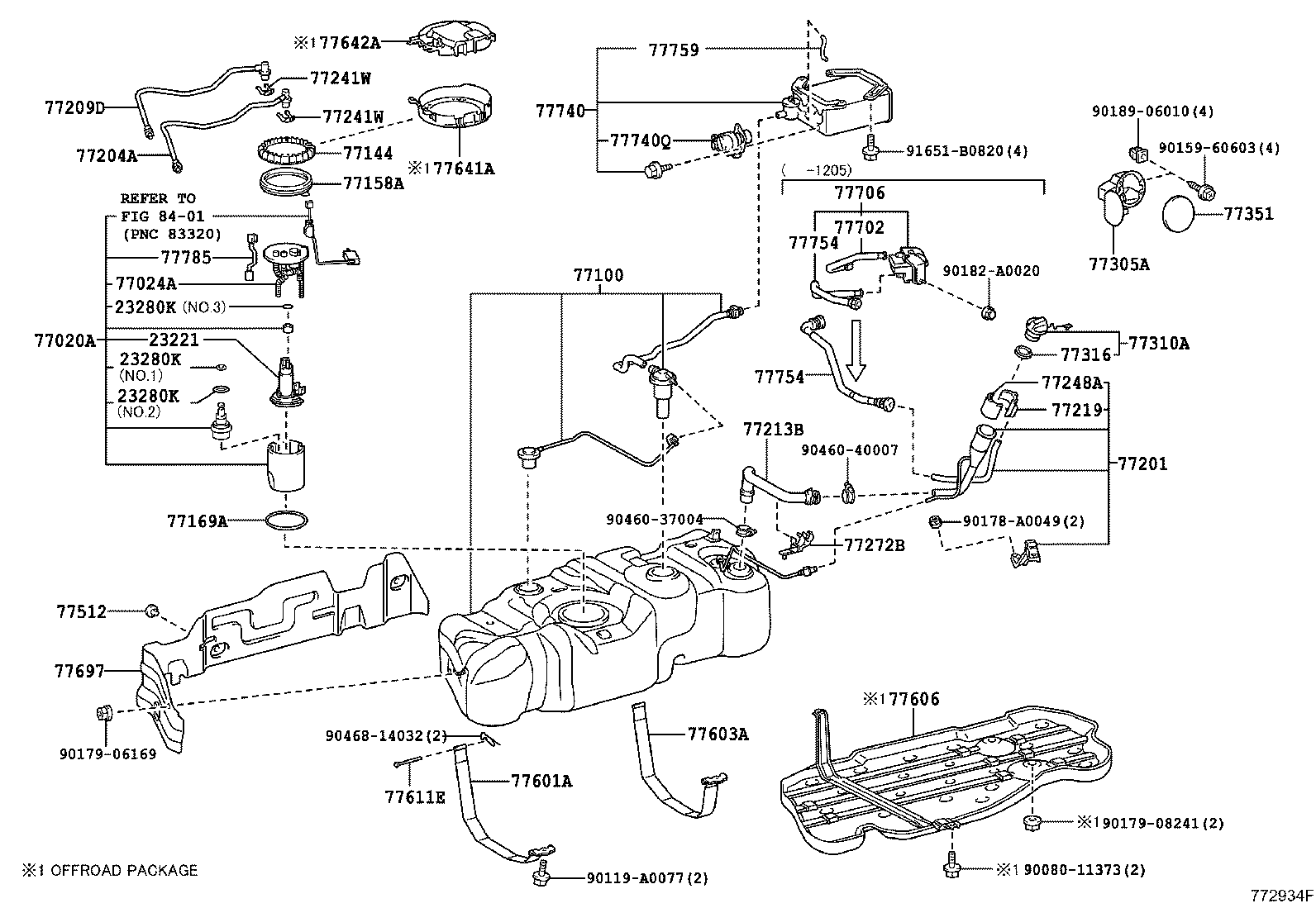

ILLUST NO. 1 OF 2(0904-1308)UPK5#,USK5#..HTWC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0S011 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L |
1 | ||
| 23220-0S011 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.2 |
1 | ||
| 90301-15024 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.2 |
1 | ||
| 90301-A0021 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.3 |
1 | ||
| 90301-04013 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.1 |
1 | ||
| 90301-A0021 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.3 |
1 | ||
| 90301-04013 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.2 |
1 | ||
| 90301-15024 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.2 |
1 | ||
| 90301-A0021 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.3 |
1 | ||
| 90301-04013 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.1 |
1 | ||
| 90301-A0021 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.3 |
1 | ||
| 90301-04013 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.2 |
1 | ||
| 90301-15024 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.2 |
1 | ||
| 90301-A0021 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.3 |
1 | ||
| 90301-04013 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.1 |
1 | ||
| 90301-A0021 |
1URFE..UPK51,56..S;1URFE,3URFE..UPK50,USK51,52,55,56,57 NO.3 |
1 | ||
| 90301-04013 |
1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L NO.1 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0C081 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77020-0C082 |
UPK5#,USK5#..HTWC |
1 | ||
| 77020-0C081 |
UPK51,56..S;UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77024-0C020 |
UPK51,56..S;UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0C060 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77001-0C060 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77144-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77158-08010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0C010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77169-0C010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77201-0C081 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77201-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0C070 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77204-0C070 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0C110 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77209-0C110 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77213-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-33030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77219-21010 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77219-0E010 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77219-33030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
2 | ||
| 77241-06020 |
UPK52,57;UPK51,55,56,USK50..D,L |
2 | ||
| 77241-02010 |
GSK5#,UPK5#,USK5#..HTWC |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-06020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
2 | ||
| 77241-06020 |
UPK52,57;UPK51,55,56,USK50..D,L |
2 | ||
| 77241-02010 |
GSK5#,UPK5#,USK5#..HTWC |
2 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-33010 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77248-33010 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77745-0E010 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77248-52060 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-0C030 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77272-0C030 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-0C050 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77305-0C050 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..HTWC |
1 | ||
| 77300-06040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77316-06070 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77351 - LID, FUEL FILLER OPENING, OUTER | ||||
| 77351-0C070 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77351-0C070 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
4 | ||
| 77512-35140 |
UPK52,57;UPK51,55,56,USK50..D,L |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0C040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77601-0C040 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77601-0C040 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77601-0C080 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-0C100 |
UPK5#,USK55;USK51,56..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C090 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77602-0C021 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77602-0C021 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77602-0C011 |
UPK50,USK55;UPK51,56..S;USK51,56..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C011 |
UPK5#,USK55;USK51,56..L,S OFFROAD PACKAGE |
1 | ||
| 77602-0C021 |
GSK5#,UPK5#,USK5# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0C040 |
UPK50,USK55;UPK51,56..S;USK51,56..L,S OFFROAD PACKAGE |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-34040 |
UPK52,57;UPK51,55,56,USK50..D,L |
2 | ||
| 77653-34040 |
GSK5#,UPK5#,USK5# |
2 | ||
| 77653-34040 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
2 | ||
| 77653-35040 |
GSK5#,UPK5#,USK5# |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0C030 |
UPK51,56..DCB..S;GSK50,UPK50,USK55;GSK51,USK51,56..DCB |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-0C020 |
UPK51,56..DCB..S;GSK50,UPK50,USK55;GSK51,USK51,56..DCB |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77697-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77702 - HOSE SUB-ASSY, CANISTER OUTLET, NO.2 | ||||
| 77702-0C020 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77702-0C020 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER | ||||
| 77706-0C050 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77706-0C050 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0C050 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77740-0C050 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF005 |
UPK5#,USK5# |
1 | ||
| 90910-AF002 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 90910-AF002 |
UPK51,56..S;UPK50,USK51,52,55,56,57 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77754-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77754-0C110 |
UPK5#,USK5# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-0C080 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57 |
1 | ||
| 77754-0C080 |
UPK52,57;UPK51,55,56,USK50..D,L |
1 | ||
| 77754-0C110 |
UPK5#,USK5# |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 90999-92002 |
UPK52,57;UPK51,55,56,USK50..D,L *H,L=60,MARK=#0 |
1 | ||
| 90999-92002 |
UPK51,56..S;UPK50,USK51,52,55,56,57 *H,L=60,MARK=#0 |
1 | ||
| Common parts | ||||
| 90080-11373 | ||||
| 90119-A0077 | ||||
| 90159-60603 | ||||
| 90178-A0049 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90182-A0020 | ||||
| 90189-06010 | ||||
| 90460-37004 | ||||
| 90460-40007 | ||||
| 90468-14032 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
