USK51L-PSTLKA (2007)
Toyota Tundra
Production
Mar 2007
-
Apr 2009
Engine
3URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0611-1708)USK51..RCB..HTWC ; (0611-1708)GSK5#,UCK50,51,55,56,UPK50,51,55,56,USK50,

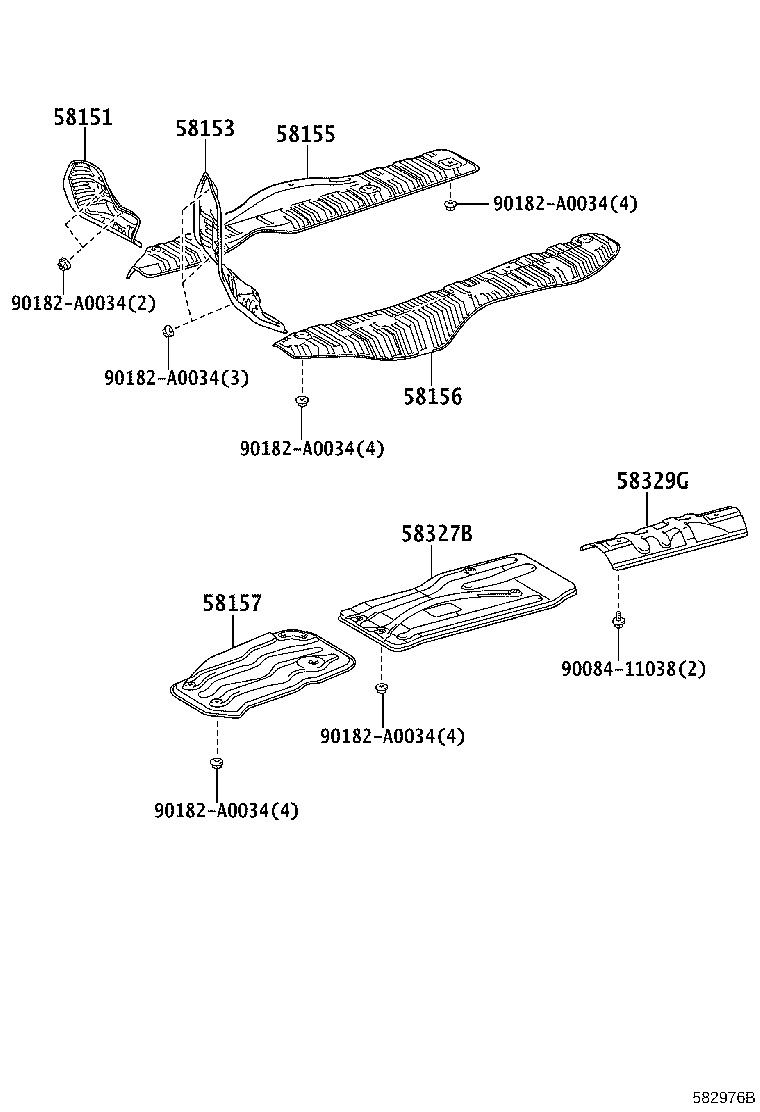

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-0C050 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58156 - INSULATOR, FRONT FLOOR HEAT, NO.4 | ||||
| 58156-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58156-0C011 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58157 - INSULATOR, FRONT FLOOR HEAT, NO.5 | ||||
| 58157-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..CMAX,RCB |
1 | ||
| 58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER | ||||
| 58327-0C080 |
UCK52,57,USK52,57;GSK51,UCK51,56,USK51,56..D |
1 | ||
| 58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER | ||||
| 58327-0C080 |
UCK52,57,USK52,57;GSK51,UCK51,56,USK51,56..D |
1 | ||
| 58329G - INSULATOR, MAIN MUFFLER HEAT, REAR UPPER | ||||
| 58329-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90084-11038 | ||||
| 90182-A0034 | ||||
(0703- )USK51..CMAX..HTWC ; (0703- )UCK51,56,UPK51,56,USK56..CMAX ; (1508-
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-0C040 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-0C050 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-0C020 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58156 - INSULATOR, FRONT FLOOR HEAT, NO.4 | ||||
| 58156-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58156-0C011 |
GSK5#,UCK5#,USK5# |
1 | ||
| 58157 - INSULATOR, FRONT FLOOR HEAT, NO.5 | ||||
| 58157-0C010 |
GSK5#,UCK50,51,55,56,USK50,51,55,56..CMAX,RCB |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-0C050 |
UCK51,56,USK51,56..CMAX |
1 | ||
| 58329G - INSULATOR, MAIN MUFFLER HEAT, REAR UPPER | ||||
| 58329-0C010 |
GSK5#,UCK5#,USK5# |
1 | ||
| Common parts | ||||
| 90084-11038 | ||||
| 90182-A0034 | ||||
