USK51L-CRTSKA (2017)
Toyota Tundra

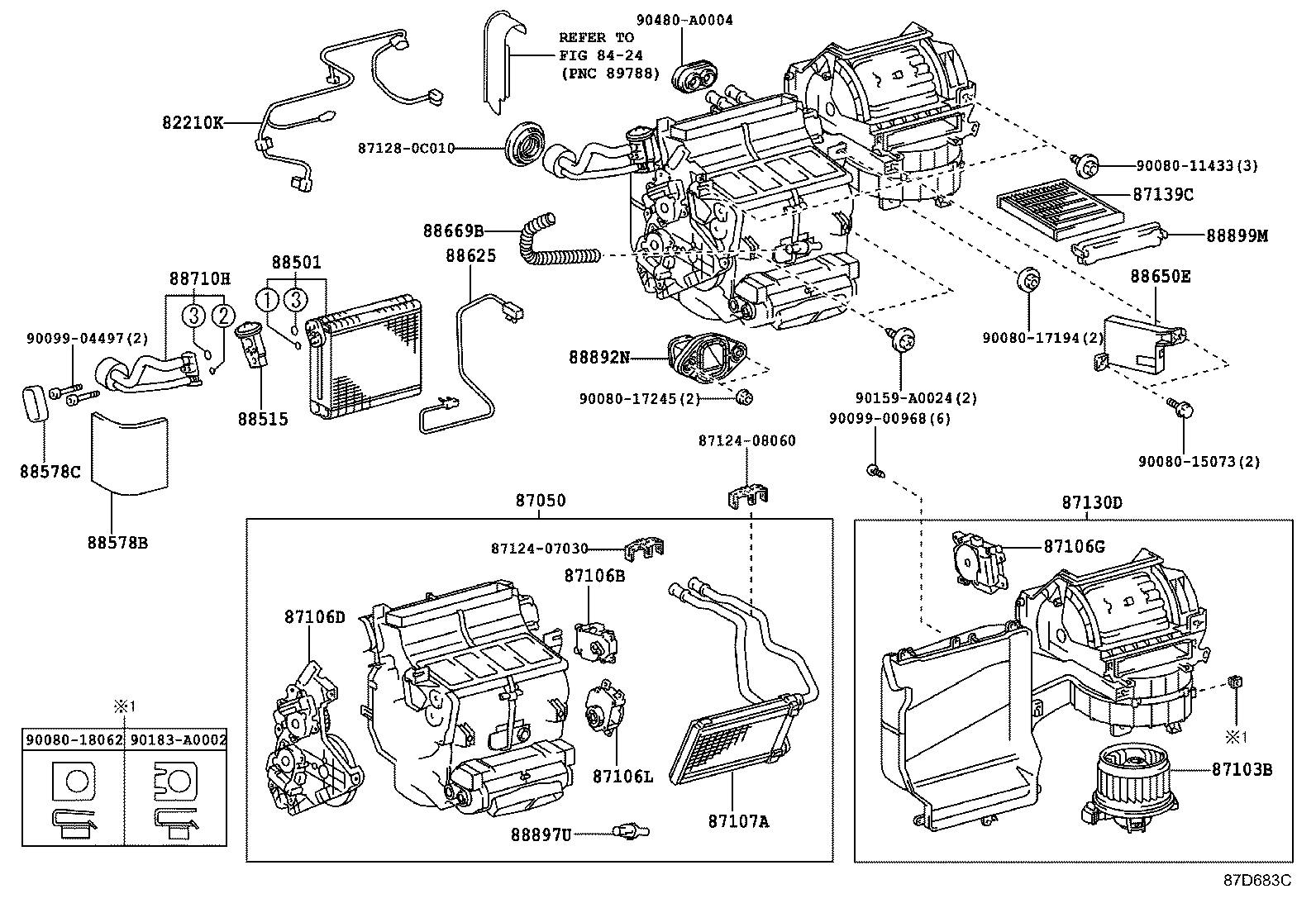

ILLUST NO. 1 OF 2(0611- )SR5
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82210-0C020 |
USK51,56..HTWC..S TRD SPORT |
1 | ||
| 82210-0C020 |
USK51,56..HTWC..(L,Z) |
1 | ||
| 82210-0C020 |
USK5#..HTWC..S OFFROAD PACKAGE |
1 | ||
| 82210-0C040 |
USK5#..HTWC..S |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0C090 |
USK51,56..DCB..L |
1 | ||
| 87050-0C090 |
USK51,56..DCB..S TRD SPORT |
1 | ||
| 87050-0C090 |
USK5#..DCB..S OFFROAD PACKAGE |
1 | ||
| 87050-0C080 |
UPK5#,USK5#..DCB..S |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0C040 |
UPK5#,USK5# |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-0C140 |
UPK5#,USK5#..DCB |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-07140 |
UPK5#,USK5# |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-0C090 |
USK51,56..L,Z |
1 | ||
| 87106-0C090 |
USK51,56..S TRD SPORT |
1 | ||
| 87106-0C090 |
USK5#..S OFFROAD PACKAGE |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0C050 |
UPK5#,USK5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0C070 |
UPK5#,USK5# |
1 | ||
| 87130-0C071 |
USK5# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-07020 |
USK5#..HTWC POLLEN FILTER,OE PART |
1 | ||
| 87139-50100 |
USK5#..HTWC POLLEN DEODORANT |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0C072 |
USK5# |
1 | ||
| 88501-0C073 |
USK5# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-64010 |
USK5# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-0C100 |
UPK5#,USK5# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0C010 |
UPK5#,USK5# |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0C490 |
USK51,56..DCB..HTWC..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT |
1 | ||
| 88650-0C430 |
USK5#..DCB..HTWC..S |
1 | ||
| 88650-0C420 |
USK51,56..DCB..HTWC..L |
1 | ||
| 88650-0C490 |
USK5#..DCB..HTWC..S NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE |
1 | ||
| 88650-0C530 |
USK51,56..DCB..HTWC..L |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0C110 |
UPK5#,USK5# |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-0C020 |
UPK5#,USK5# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-07010 |
UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 87124-07030 | ||||
| 87124-08060 | ||||
| 87128-0C010 | ||||
| 88892-60020 | ||||
| 90080-11433 | ||||
| 90080-15073 | ||||
| 90080-17194 | ||||
| 90080-17245 | ||||
| 90080-18062 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90159-A0024 | ||||
| 90183-A0002 | ||||
| 90480-A0004 | ||||
| Linked diagrams | ||||
| 8424 | ||||
ILLUST NO. 2 OF 2(0611- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||

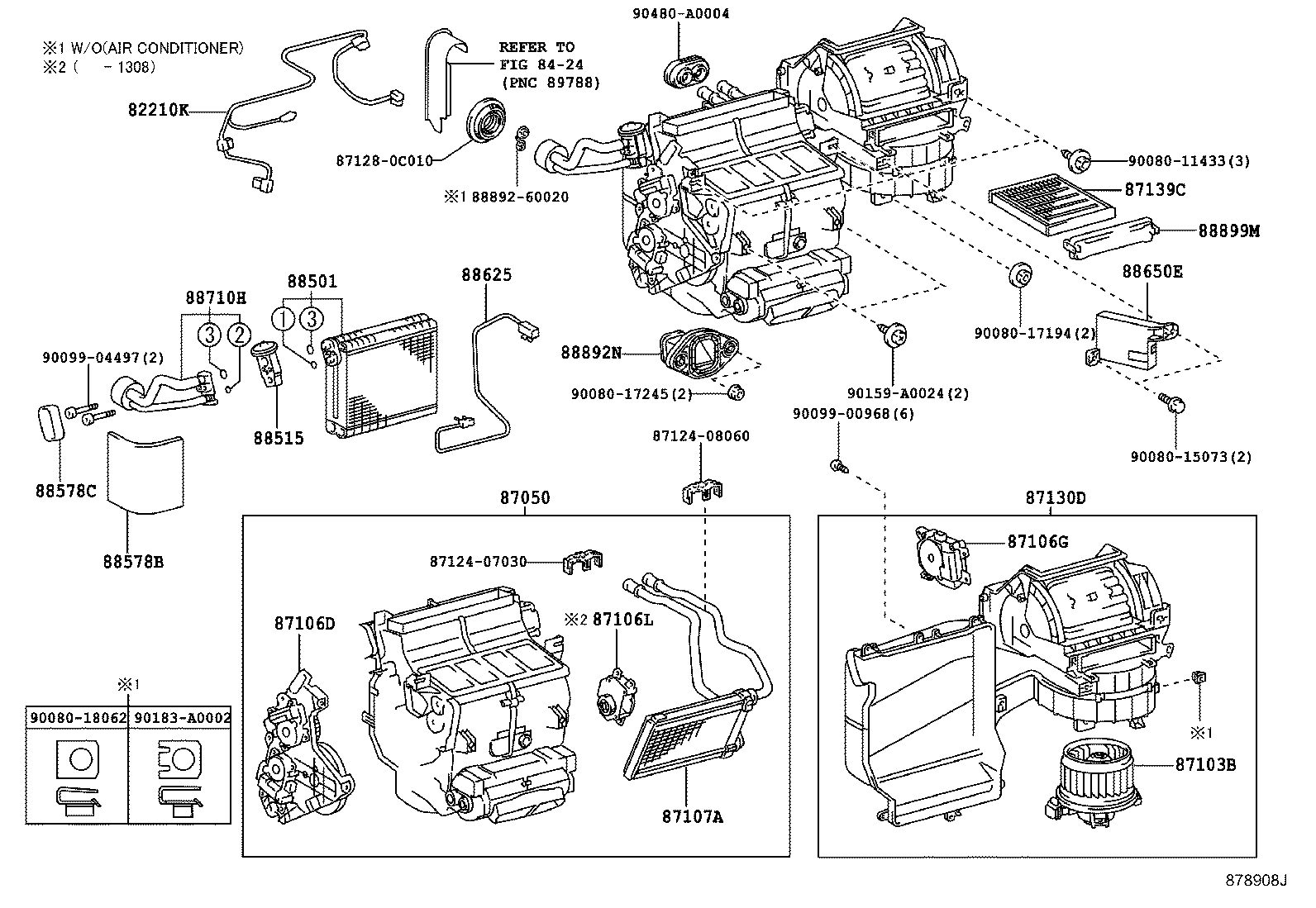

ILLUST NO. 1 OF 2(0611- )L,Z ; (0611- )USK51,52,56,57..CMAX,DCB..HTWC..S
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82210-0C020 |
USK51,56..HTWC..S TRD SPORT |
1 | ||
| 82210-0C020 |
USK51,56..HTWC..(L,Z) |
1 | ||
| 82210-0C020 |
USK5#..HTWC..S OFFROAD PACKAGE |
1 | ||
| 82210-0C040 |
USK5#..HTWC..S |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0C090 |
USK51,56..DCB..L |
1 | ||
| 87050-0C090 |
USK51,56..DCB..S TRD SPORT |
1 | ||
| 87050-0C090 |
USK5#..DCB..S OFFROAD PACKAGE |
1 | ||
| 87050-0C080 |
UPK5#,USK5#..DCB..S |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0C040 |
UPK5#,USK5# |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-0C100 |
USK51,56..L,Z |
1 | ||
| 87106-0C100 |
USK51,56..S TRD SPORT |
1 | ||
| 87106-0C100 |
USK5#..S OFFROAD PACKAGE |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-0C140 |
UPK5#,USK5#..DCB |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-07140 |
UPK5#,USK5# |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-0C090 |
USK51,56..L,Z |
1 | ||
| 87106-0C090 |
USK51,56..S TRD SPORT |
1 | ||
| 87106-0C090 |
USK5#..S OFFROAD PACKAGE |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0C050 |
UPK5#,USK5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0C070 |
UPK5#,USK5# |
1 | ||
| 87130-0C071 |
USK5# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-07020 |
USK5#..HTWC POLLEN FILTER,OE PART |
1 | ||
| 87139-50100 |
USK5#..HTWC POLLEN DEODORANT |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0C072 |
USK5# |
1 | ||
| 88501-0C073 |
USK5# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-64010 |
USK5# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-0C100 |
UPK5#,USK5# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0C010 |
UPK5#,USK5# |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0C490 |
USK51,56..DCB..HTWC..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT |
1 | ||
| 88650-0C430 |
USK5#..DCB..HTWC..S |
1 | ||
| 88650-0C420 |
USK51,56..DCB..HTWC..L |
1 | ||
| 88650-0C490 |
USK5#..DCB..HTWC..S NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE |
1 | ||
| 88650-0C530 |
USK51,56..DCB..HTWC..L |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 87233-0C010 |
USK51,56..L,Z |
1 | ||
| 87233-0C010 |
USK5#..S OFFROAD PACKAGE |
1 | ||
| 87233-0C010 |
USK51,56..S TRD SPORT |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0C110 |
UPK5#,USK5# |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-0C020 |
UPK5#,USK5# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-07010 |
UPK5#,USK5# |
1 | ||
| Common parts | ||||
| 87124-07030 | ||||
| 87124-08060 | ||||
| 87128-0C010 | ||||
| 90080-11433 | ||||
| 90080-15073 | ||||
| 90080-17194 | ||||
| 90080-17245 | ||||
| 90080-18062 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90159-A0024 | ||||
| 90183-A0002 | ||||
| 90480-A0004 | ||||
| Linked diagrams | ||||
| 8424 | ||||
