USK51L-CRTSKA (2017)

Toyota Tundra

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )

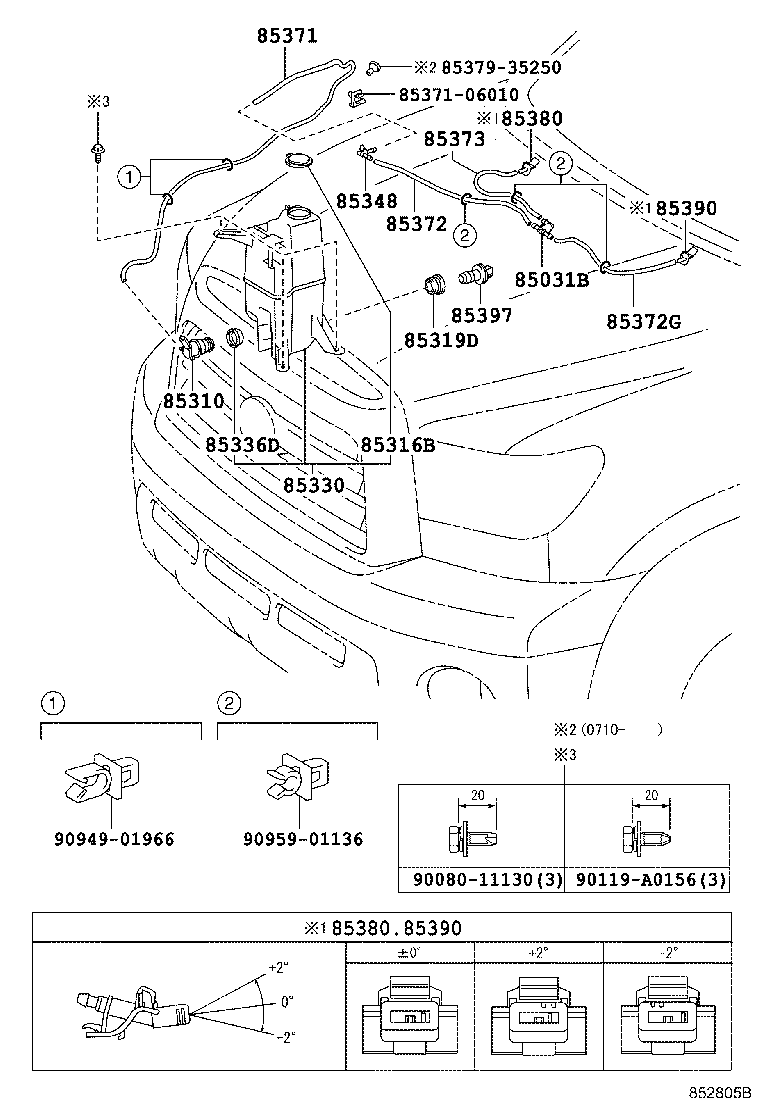

Click highlighted areas on diagram

diagram 85031B 85310 85316B 85319D 85330 85336D 85348 85371 8537106010 85372 85372G 85373 8537935250 85380 85390 85397 9008011130 90119A0156 9094901966 9095901136
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85321-28020

USK5#..HTWC

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

USK5#..HTWC

 1
85316B - CAP, WASHER, INLET
85316-0C060

USK5#..HTWC

 1
85319D - PACKING, FRONT WASHER
85319-AA020

USK5#..HTWC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0C060

USK5#..HTWC

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-60300

USK5#..HTWC

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85377-32220

USK5#..HTWC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85376-0C020

USK5#..HTWC

L=1495

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33081

USK5#..HTWC

L=530

 1
85372G - TUBE, RUBBER
90068-33233

USK5#..HTWC

L=740

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33035

USK5#..HTWC

L=230

 1
85380 - NOZZLE & HOSE ASSY, FR WASHER
85381-0C040

USK5#..HTWC

ANGLE +2

 1
85381-0C030

USK5#..HTWC

ANGLE 0

 1
85381-0C050

USK5#..HTWC

ANGLE -2

 1
85390 - NOZZLE & HOSE ASSY, FR WASHER, LH
85381-0C040

USK5#..HTWC

ANGLE +2

 1
85381-0C050

USK5#..HTWC

ANGLE -2

 1
85381-0C030

USK5#..HTWC

ANGLE 0

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-AA040

USK5#..HTWC

 1
Common parts
85371-06010
85379-35250
90080-11130
90119-A0156
90949-01966
90959-01136
