USK51L-CRTSKA (2017)

Toyota Tundra

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

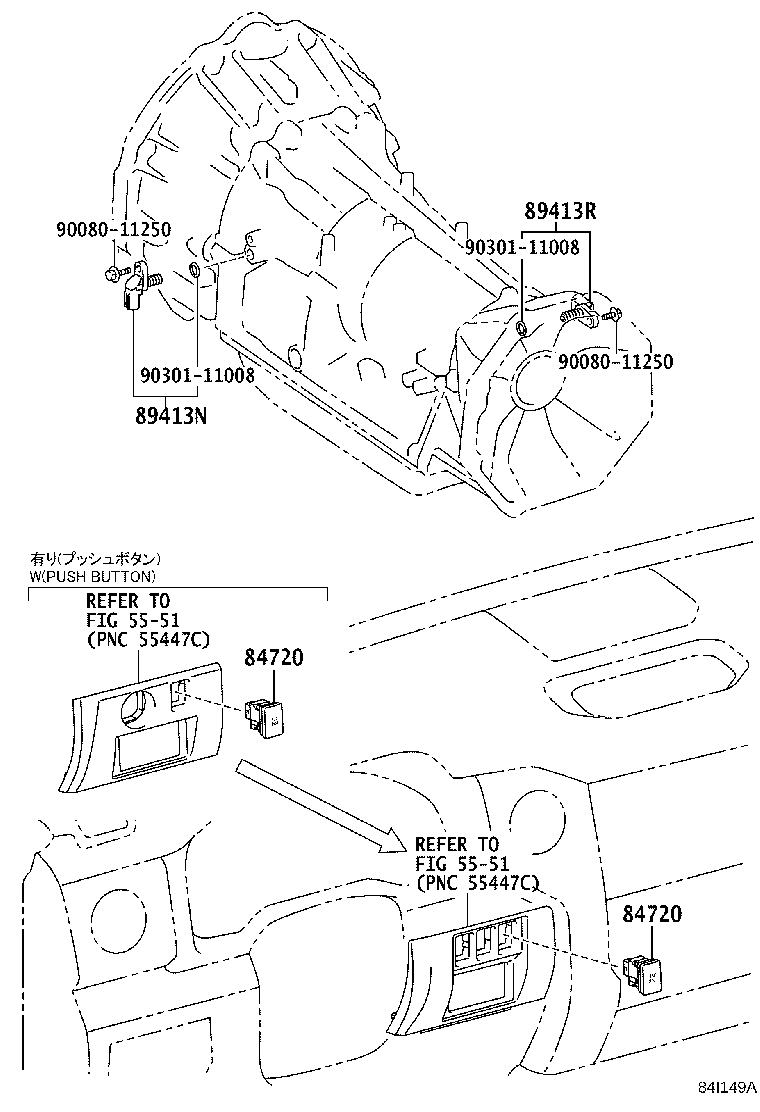

Click highlighted areas on diagram

diagram 5551 5551 84720 84720 89413N 89413R 9008011250 9008011250 9030111008 9030111008
Part # Description Qty Price
84720 - SWITCH ASSY, PATTERN SELECT
84720-0C031

USK5#..HTWC..S

NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH

 1
84720-0C031

USK51,56..HTWC..(L,Z)

TOWING PACKAGE-WITH

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-0C031

USK5#..HTWC..S

NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH

 1
84720-0C031

USK51,56..HTWC..(L,Z)

TOWING PACKAGE-WITH

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-0C020

USK5#

 1
89413-0C021

USK5#..HTWC

 1
89413R - SENSOR, TRANSMISSION REVOLUTION (SP2)
89413-0C020

USK5#

 1
89413-0C021

USK5#..HTWC

 1
Common parts
90080-11250
90301-11008
Linked diagrams
5551
