USK51L-CRTSKA (2017)

Toyota Tundra

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )S

Click highlighted areas on diagram

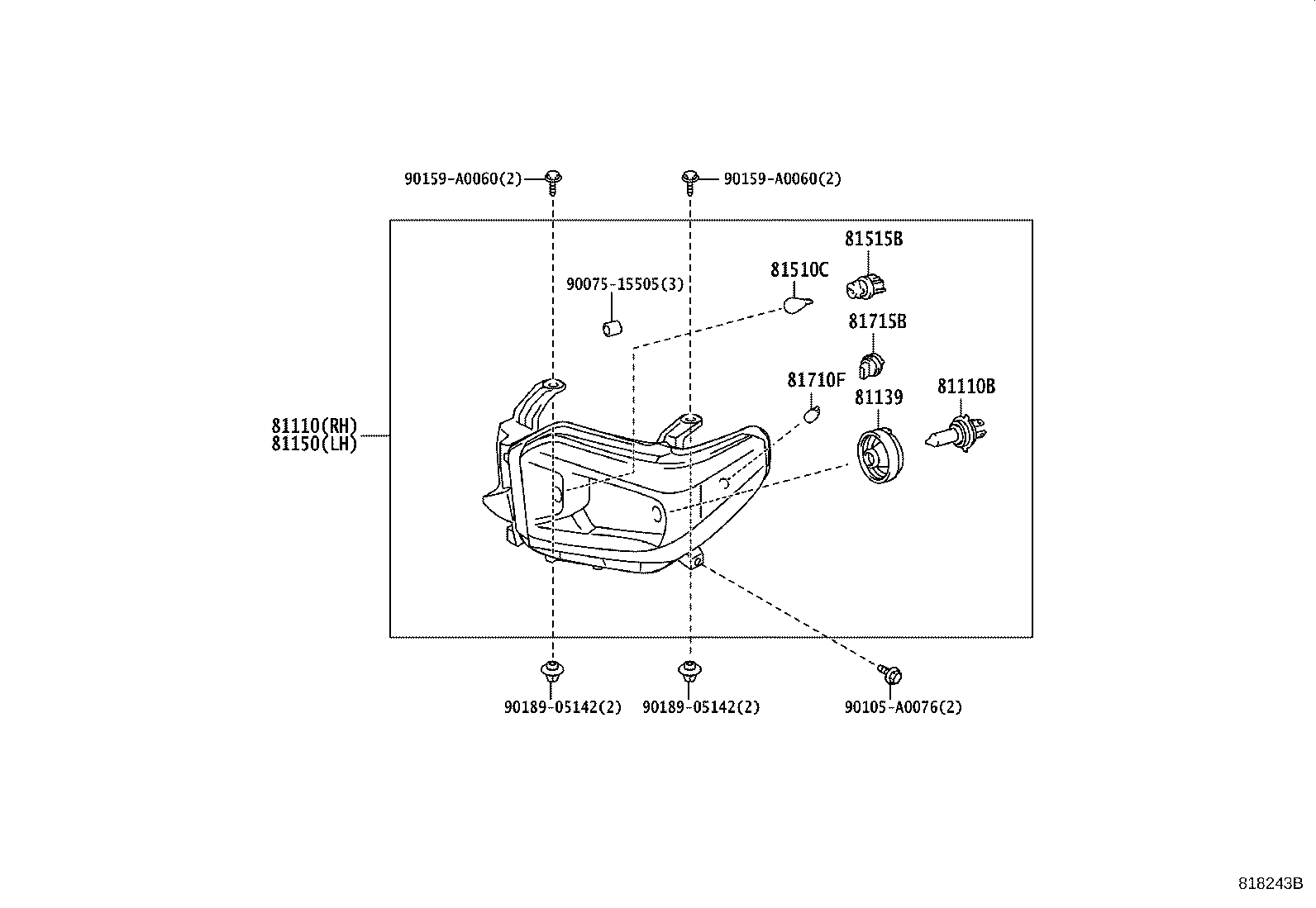

HALOGEN HEADLAMP

diagram 81110 81110B 81139 81150 81510C 81515B 81710F 81715B 9007515505 90105A0076 90159A0060 90159A0060 9018905142 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0C210

USK51,56..S

TRD PRO

 1
81110-0C210

USK5#..L,S

OFFROAD PACKAGE

 1
81110-0C210

USK51,56..S

TRD SPORT

 1
81110-0C130

USK5#..HTWC..S

 1
81110-0C211

USK51,56..HTWC..S

TRD SPORT

 1
81110-0C211

USK5#..HTWC..(L,S)

OFFROAD PACKAGE

 1
81110-0C140

USK51,56..HTWC..(L,Z)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

USK5#..HTWC..S

12V 60/55W,HALOGEN

 2
81139 - COVER, HEADLAMP SOCKET
81139-06050

USK5#..HTWC..S

 2
81150 - HEADLAMP ASSY, LH
81150-0C210

USK5#..L,S

OFFROAD PACKAGE

 1
81150-0C210

USK51,56..S

TRD PRO

 1
81150-0C210

USK51,56..S

TRD SPORT

 1
81150-0C211

USK5#..HTWC..(L,S)

OFFROAD PACKAGE

 1
81150-0C140

USK51,56..HTWC..(L,Z)

 1
81150-0C211

USK51,56..HTWC..S

TRD SPORT

 1
81150-0C130

USK5#..HTWC..S

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15024

USK51..S

12V 28/8W,TRD PRO

 2
90084-98062

USK5#..HTWC..S

12V 27/8W

 2
90981-15024

USK51,56..HTWC..(L,Z)

12V 28/8W

 2
90981-15024

USK5#..HTWC..S

12V 28/8W,OFFROAD PACKAGE

 2
90981-15024

USK51,56..HTWC..S

12V 28/8W,TRD SPORT

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81128-06470

USK51..S

TRD PRO

 2
81128-06470

USK5#..HTWC..S

OFFROAD PACKAGE

 2
81128-06470

USK51,56..HTWC..(L,Z)

 2
81128-06470

USK51,56..HTWC..S

TRD SPORT

 2
90075-60060

USK5#..HTWC..S

 2
81710F - BULB, FRONT SIDE MAKER LAMP
99132-12050

USK5#..HTWC

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
90075-60021

USK51..S

TRD PRO

 2
90075-60021

USK5#..HTWC..S

OFFROAD PACKAGE

 2
90075-60001

USK5#..HTWC..S

 2
90075-60021

USK51,56..HTWC..S

TRD SPORT

 2
90075-60021

USK51,56..HTWC..(L,Z)

 2
Common parts
90075-15505
90105-A0076
90159-A0060
90189-05142

(1708- )USK5#

Click highlighted areas on diagram

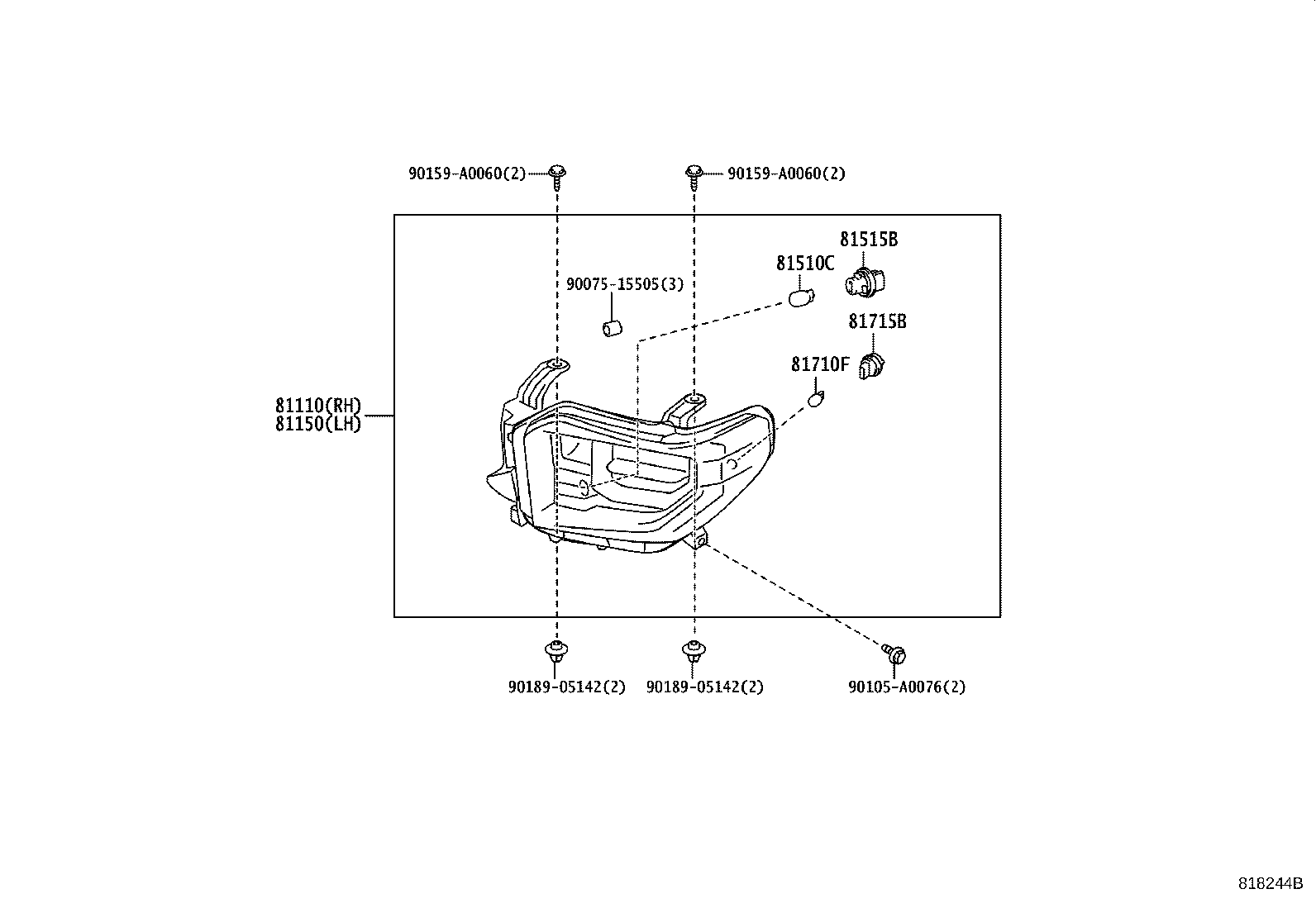

LED HEADLAMP

diagram 81110 81150 81510C 81515B 81710F 81715B 9007515505 90105A0076 90159A0060 90159A0060 9018905142 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0C210

USK51,56..S

TRD PRO

 1
81110-0C210

USK5#..L,S

OFFROAD PACKAGE

 1
81110-0C210

USK51,56..S

TRD SPORT

 1
81110-0C130

USK5#..HTWC..S

 1
81110-0C211

USK51,56..HTWC..S

TRD SPORT

 1
81110-0C211

USK5#..HTWC..(L,S)

OFFROAD PACKAGE

 1
81110-0C140

USK51,56..HTWC..(L,Z)

 1
81150 - HEADLAMP ASSY, LH
81150-0C210

USK5#..L,S

OFFROAD PACKAGE

 1
81150-0C210

USK51,56..S

TRD PRO

 1
81150-0C210

USK51,56..S

TRD SPORT

 1
81150-0C211

USK5#..HTWC..(L,S)

OFFROAD PACKAGE

 1
81150-0C140

USK51,56..HTWC..(L,Z)

 1
81150-0C211

USK51,56..HTWC..S

TRD SPORT

 1
81150-0C130

USK5#..HTWC..S

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15024

USK51..S

12V 28/8W,TRD PRO

 2
90084-98062

USK5#..HTWC..S

12V 27/8W

 2
90981-15024

USK51,56..HTWC..(L,Z)

12V 28/8W

 2
90981-15024

USK5#..HTWC..S

12V 28/8W,OFFROAD PACKAGE

 2
90981-15024

USK51,56..HTWC..S

12V 28/8W,TRD SPORT

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81128-06470

USK51..S

TRD PRO

 2
81128-06470

USK5#..HTWC..S

OFFROAD PACKAGE

 2
81128-06470

USK51,56..HTWC..(L,Z)

 2
81128-06470

USK51,56..HTWC..S

TRD SPORT

 2
90075-60060

USK5#..HTWC..S

 2
81710F - BULB, FRONT SIDE MAKER LAMP
99132-12050

USK5#..HTWC

 2
81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP
90075-60021

USK51..S

TRD PRO

 2
90075-60021

USK5#..HTWC..S

OFFROAD PACKAGE

 2
90075-60001

USK5#..HTWC..S

 2
90075-60021

USK51,56..HTWC..S

TRD SPORT

 2
90075-60021

USK51,56..HTWC..(L,Z)

 2
Common parts
90075-15505
90105-A0076
90159-A0060
90189-05142
