USK51L-CRTSKA (2017)
Toyota Tundra

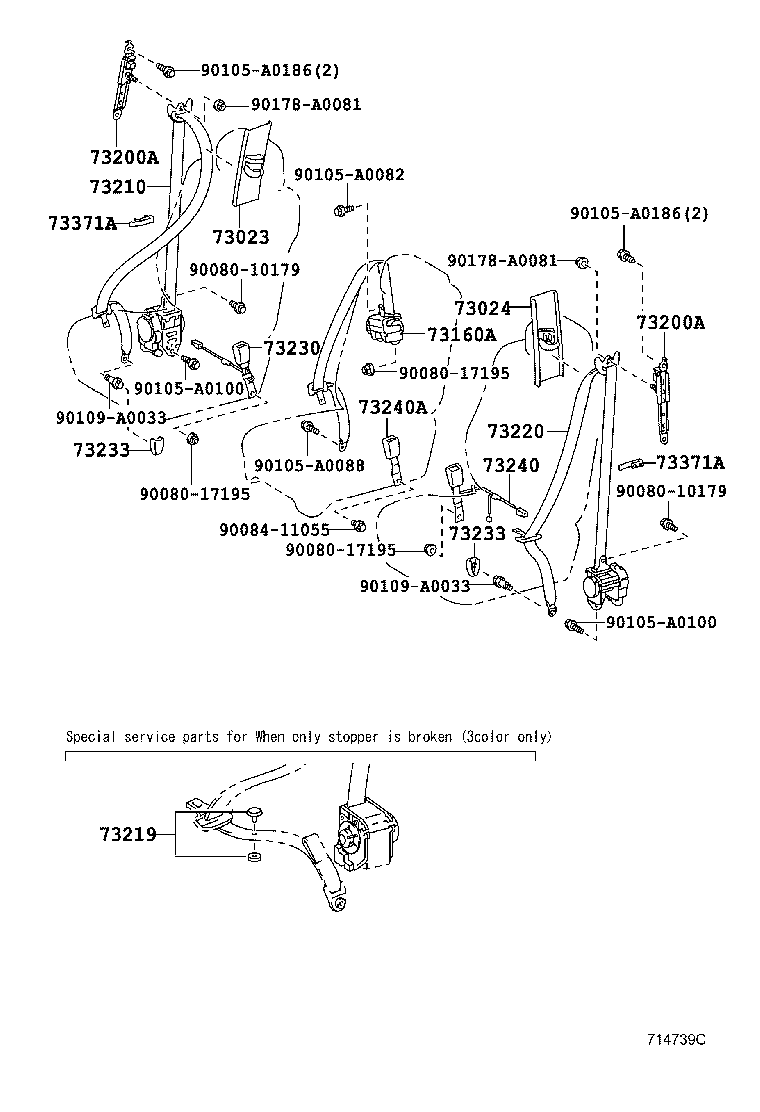

ILLUST NO. 1 OF 2(0611- )CMAX,DCB
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-0C010E0 |
UPK5#,USK5#..L,S SAND BEIGE,TRIM4# |
1 | ||
| 73023-0C010B0 |
UPK5#,USK5#..L,S LT.GRAY,TRIM1#,2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-0C010B0 |
UPK5#,USK5#..L,S LT.GRAY,TRIM1#,2# |
1 | ||
| 73024-0C010E0 |
UPK5#,USK5#..L,S SAND BEIGE,TRIM4# |
1 | ||
| 73160A - SEAT BELT ASSY, FRONT CENTER, RH | ||||
| 73301-0C042C0 |
USK5#..HTWC..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
UPK5#,USK5# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
UPK5#,USK5# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0C150B1 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73210-0C150C2 |
UPK5#,USK5#..S BLACK/SAND BEIGE,TRIM4# |
1 | ||
| 73210-0C150C1 |
UPK5#,USK5#..S BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 73210-0C150E1 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73210-0C150C1 |
USK51,56..L,Z BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02010 |
USK5#..HTWC BLACK,BLACK |
1 | ||
| 73219-02030 |
USK5#..HTWC BEIGE,BEIGE |
1 | ||
| 73219-02020 |
USK5#..HTWC GRAY,GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0C150C2 |
UPK5#,USK5#..S BLACK/SAND BEIGE,TRIM4# |
1 | ||
| 73220-0C150C1 |
UPK5#,USK5#..S BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 73220-0C150C1 |
USK51,56..L,Z BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-0C150E1 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73220-0C150B1 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C100B0 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73230-0C100C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73230-0C100E0 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73230-0C100C0 |
USK51,56..L,Z BLACK,TRIM2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010E1 |
USK51,56..L SAND BEIGE,TRIM4# |
2 | ||
| 73233-0C010C0 |
USK51,56..L,Z BLACK,TRIM2# |
2 | ||
| 73233-0C010B0 |
USK51,56..L GRAY,TRIM1# |
2 | ||
| 73233-0C010C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010E1 |
USK51,56..L SAND BEIGE,TRIM4# |
2 | ||
| 73233-0C010C0 |
USK51,56..L,Z BLACK,TRIM2# |
2 | ||
| 73233-0C010B0 |
USK51,56..L GRAY,TRIM1# |
2 | ||
| 73233-0C010C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-0C121C0 |
USK51..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121B0 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73240-0C111C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121C0 |
UPK5#,USK5#..S NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121C0 |
USK51,56..L BLACK,TRIM2# |
1 | ||
| 73240-0C121C0 |
USK51,56..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121E0 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73240A - BELT ASSY, FRONT SEAT INNER LH | ||||
| 73306-0C021C1 |
USK5#..HTWC..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| Common parts | ||||
| 90080-10179 | ||||
| 90080-17195 | ||||
| 90084-11055 | ||||
| 90105-A0082 | ||||
| 90105-A0088 | ||||
| 90105-A0100 | ||||
| 90105-A0186 | ||||
| 90109-A0033 | ||||
| 90178-A0081 | ||||

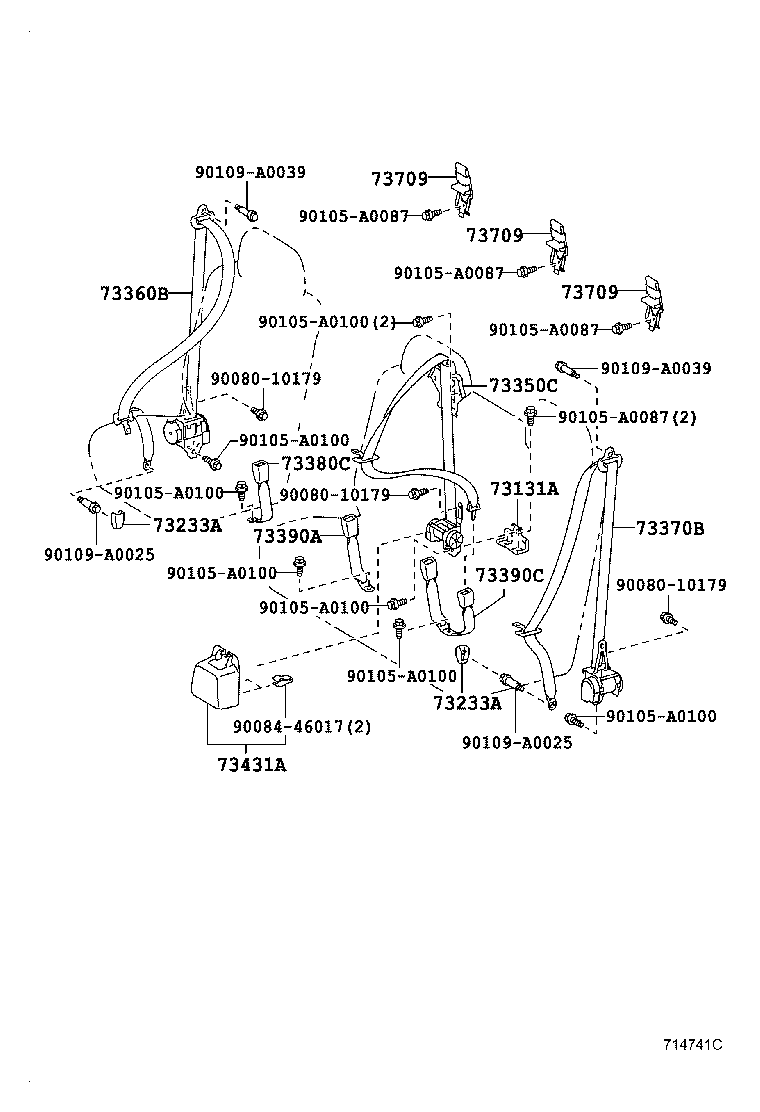

ILLUST NO. 2 OF 2(0611- )DCB
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73131A - BRACKET, SEAT BELT | ||||
| 73131-0C020 |
USK5#..DCB..HTWC |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-0C010E1 |
USK51,56..L SAND BEIGE,TRIM4# |
2 | ||
| 73233-0C010C0 |
USK51,56..L,Z BLACK,TRIM2# |
2 | ||
| 73233-0C010C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
2 | ||
| 73233-0C010B0 |
USK51,56..L GRAY,TRIM1# |
2 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-0C010E1 |
USK51,56..L SAND BEIGE,TRIM4# |
2 | ||
| 73233-0C010C0 |
USK51,56..L,Z BLACK,TRIM2# |
2 | ||
| 73233-0C010C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
2 | ||
| 73233-0C010B0 |
USK51,56..L GRAY,TRIM1# |
2 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73301-0C052C0 |
UPK5#,USK5#..DCB..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73301-0C052E0 |
USK51,56..DCB..L SAND BEIGE,TRIM4# |
1 | ||
| 73301-0C052C0 |
USK51,56..DCB..L BLACK,TRIM2# |
1 | ||
| 73301-0C052B0 |
USK51,56..DCB..L GRAY,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-0C072C2 |
USK51,56..DCB..L BLACK,TRIM2# |
1 | ||
| 73360-0C072C2 |
UPK5#,USK5#..DCB..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73360-0C072E2 |
USK51,56..DCB..L SAND BEIGE,TRIM4# |
1 | ||
| 73360-0C072B2 |
USK51,56..DCB..L GRAY,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-0C072C2 |
USK51,56..DCB..L BLACK,TRIM2# |
1 | ||
| 73360-0C072B2 |
USK51,56..DCB..L GRAY,TRIM1# |
1 | ||
| 73360-0C072E2 |
USK51,56..DCB..L SAND BEIGE,TRIM4# |
1 | ||
| 73360-0C072C2 |
UPK5#,USK5#..DCB..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0C041B0 |
USK51,56..DCB..L GRAY,TRIM1# |
1 | ||
| 73380-0C041C0 |
UPK5#,USK5#..DCB..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73380-0C041E0 |
USK51,56..DCB..L SAND BEIGE,TRIM4# |
1 | ||
| 73380-0C041C0 |
USK51,56..DCB..L BLACK,TRIM2# |
1 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73306-0C042B0 |
USK51,56..DCB..L GRAY,TRIM1# |
1 | ||
| 73306-0C042E0 |
USK51,56..DCB..L SAND BEIGE,TRIM4# |
1 | ||
| 73306-0C042C0 |
UPK5#,USK5#..DCB..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73306-0C042C0 |
USK51,56..DCB..L BLACK,TRIM2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73040-0C031C0 |
USK51,56..DCB..L BLACK,TRIM2# |
1 | ||
| 73040-0C031B0 |
USK51,56..DCB..L GRAY,TRIM1# |
1 | ||
| 73040-0C031E0 |
USK51,56..DCB..L SAND BEIGE,TRIM4# |
1 | ||
| 73040-0C031C0 |
UPK5#,USK5#..DCB..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73431A - COVER, REAR SEAT BELT RETRACTOR | ||||
| 73431-0C010 |
USK5#..DCB..HTWC |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-0C010 |
USK5#..DCB..HTWC |
3 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-0C010 |
USK5#..DCB..HTWC |
3 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-0C010 |
USK5#..DCB..HTWC |
3 | ||
| Common parts | ||||
| 90080-10179 | ||||
| 90084-46017 | ||||
| 90105-A0087 | ||||
| 90105-A0100 | ||||
| 90109-A0025 | ||||
| 90109-A0039 | ||||

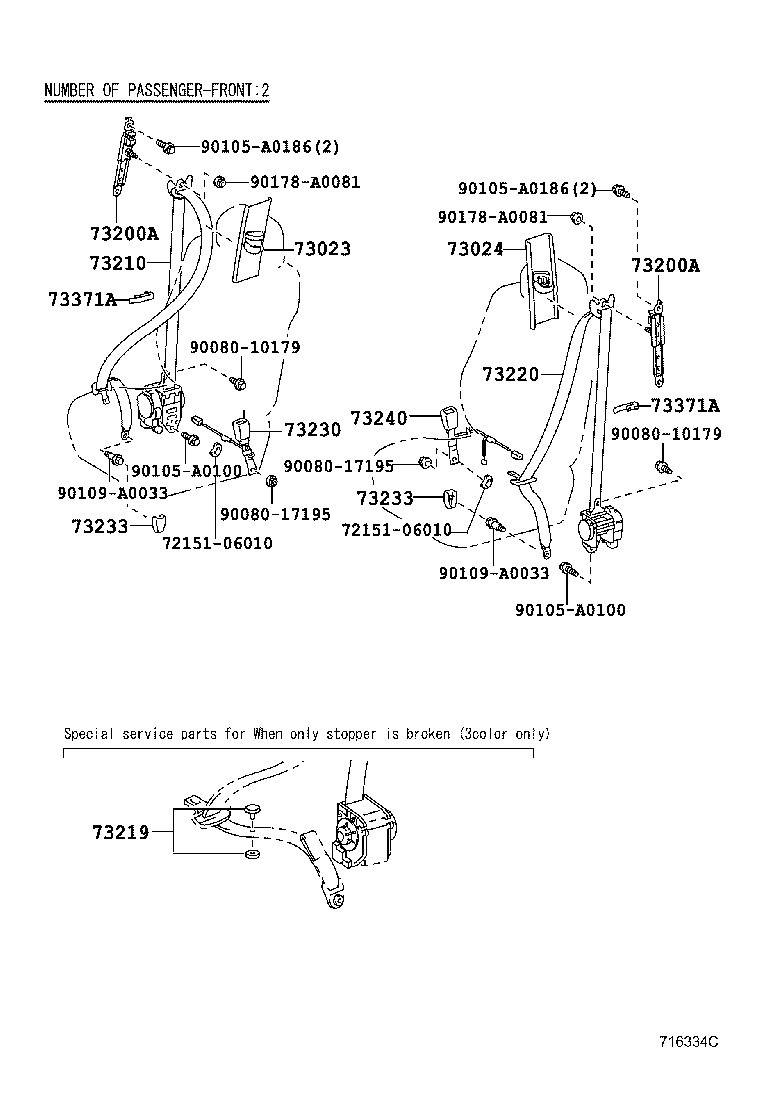

ILLUST NO. 1 OF 2(0611- )CMAX,DCB
NUMBER OF PASSENGER-FRONT:2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-0C010E0 |
UPK5#,USK5#..L,S SAND BEIGE,TRIM4# |
1 | ||
| 73023-0C010B0 |
UPK5#,USK5#..L,S LT.GRAY,TRIM1#,2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-0C010B0 |
UPK5#,USK5#..L,S LT.GRAY,TRIM1#,2# |
1 | ||
| 73024-0C010E0 |
UPK5#,USK5#..L,S SAND BEIGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
UPK5#,USK5# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
UPK5#,USK5# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0C150B1 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73210-0C150C2 |
UPK5#,USK5#..S BLACK/SAND BEIGE,TRIM4# |
1 | ||
| 73210-0C150C1 |
UPK5#,USK5#..S BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 73210-0C150E1 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73210-0C150C1 |
USK51,56..L,Z BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0C150C2 |
UPK5#,USK5#..S BLACK/SAND BEIGE,TRIM4# |
1 | ||
| 73220-0C150C1 |
UPK5#,USK5#..S BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 73220-0C150C1 |
USK51,56..L,Z BLACK/LT.GRAY,TRIM2# |
1 | ||
| 73220-0C150E1 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73220-0C150B1 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C100B0 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73230-0C100C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73230-0C100E0 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73230-0C100C0 |
USK51,56..L,Z BLACK,TRIM2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010E1 |
USK51,56..L SAND BEIGE,TRIM4# |
2 | ||
| 73233-0C010C0 |
USK51,56..L,Z BLACK,TRIM2# |
2 | ||
| 73233-0C010B0 |
USK51,56..L GRAY,TRIM1# |
2 | ||
| 73233-0C010C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010E1 |
USK51,56..L SAND BEIGE,TRIM4# |
2 | ||
| 73233-0C010C0 |
USK51,56..L,Z BLACK,TRIM2# |
2 | ||
| 73233-0C010B0 |
USK51,56..L GRAY,TRIM1# |
2 | ||
| 73233-0C010C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-0C121C0 |
USK51..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121B0 |
USK51,56..L GRAY,TRIM1# |
1 | ||
| 73240-0C111C0 |
UPK5#,USK5#..S BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121C0 |
UPK5#,USK5#..S NUMBER OF PASSENGER-FRONT:2 REAR:3&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121C0 |
USK51,56..L BLACK,TRIM2# |
1 | ||
| 73240-0C121C0 |
USK51,56..DCB..S NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT&FRONT SEAT-*DRS:8-WAY POWER & *PAS:MANUAL SEAT&SEAT COVER MATERIAL-LEATHER & PVC,BLACK,TRIM1#,2#,4# |
1 | ||
| 73240-0C121E0 |
USK51,56..L SAND BEIGE,TRIM4# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020C0 |
UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| Common parts | ||||
| 72151-06010 | ||||
| 90080-10179 | ||||
| 90080-17195 | ||||
| 90105-A0100 | ||||
| 90105-A0186 | ||||
| 90109-A0033 | ||||
| 90178-A0081 | ||||
