USK51L-CRTSKA (2017)

Toyota Tundra

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )DCB

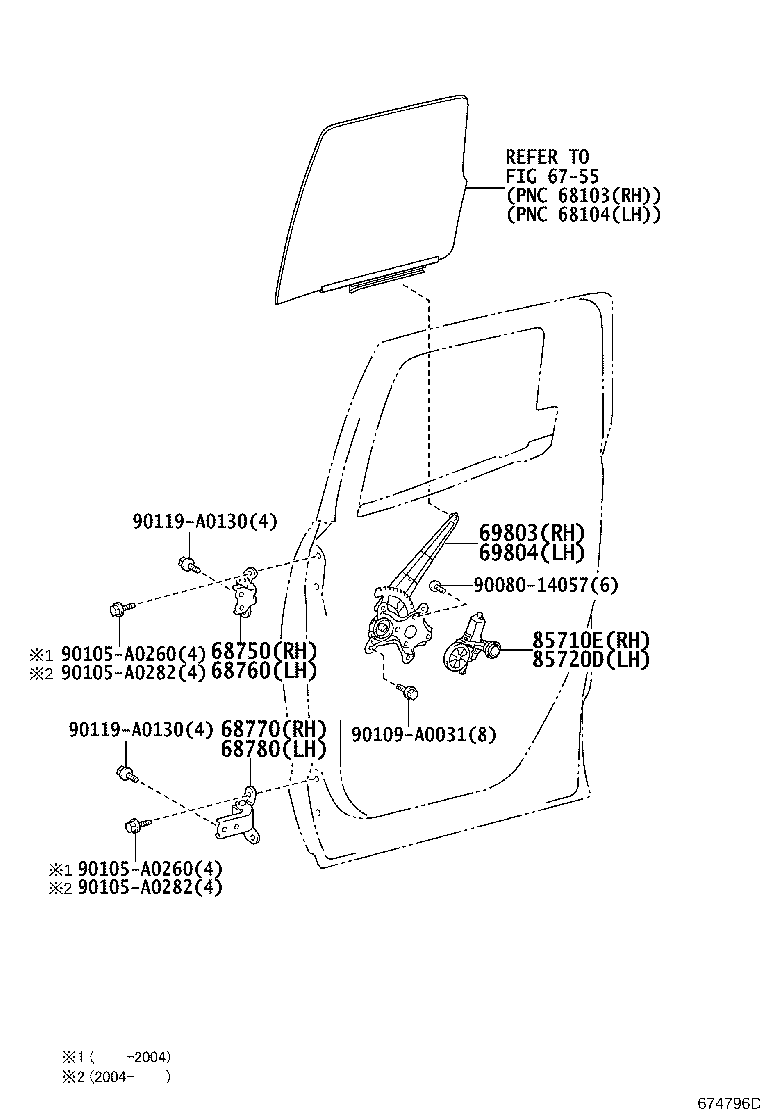

Click highlighted areas on diagram

diagram 6755 68750 68760 68770 68780 69803 69804 85710E 85720D 9008014057 90105A0260 90105A0260 90105A0282 90105A0282 90109A0031 90119A0130 90119A0130
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-0C020

USK5#..HTWC

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-0C020

USK5#..HTWC

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-04010

USK5#..HTWC

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-04010

USK5#..HTWC

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-0C030

USK5#..DCB..HTWC

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-0C030

USK5#..DCB..HTWC

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-AE010

USK5#..DCB..HTWC

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-AE010

USK5#..DCB..HTWC

 1
Common parts
90080-14057
90105-A0260
90105-A0282
90109-A0031
90119-A0130
Linked diagrams
6755
