USK51L-CRTSKA (2017)

Toyota Tundra

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

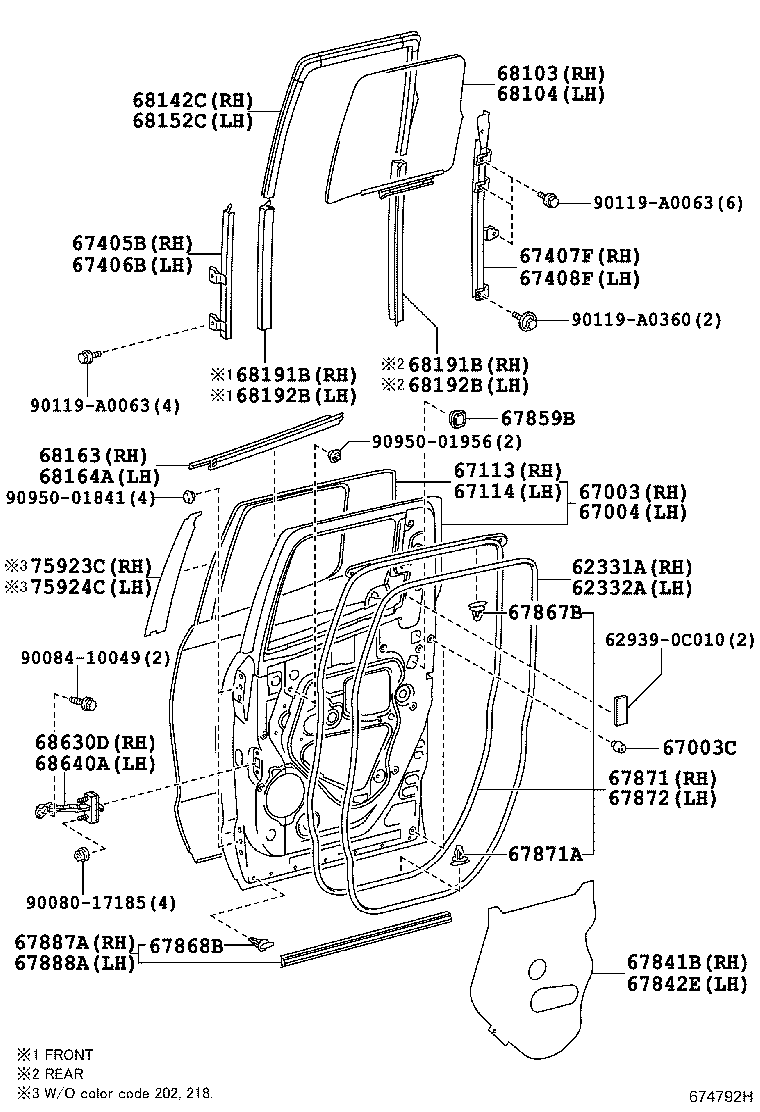

ILLUST NO. 1 OF 2(0611- )DCB

Click highlighted areas on diagram

DOOR PANEL

diagram 62331A 62332A 629390C010 67003 67003C 67004 67113 67114 67405B 67406B 67407F 67408F 67841B 67842E 67859B 67867B 67868B 67871 67871A 67872 67887A 67888A 68103 68104 68142C 68152C 68163 68164A 68191B 68191B 68192B 68192B 68630D 68640A 75923C 75924C 9008017185 9008410049 90119A0063 90119A0063 90119A0360 9095001841 9095001956
Part # Description Qty Price
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0C030

USK5#..DCB..HTWC

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0C030

USK5#..DCB..HTWC

 1
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-0C112

UPK5#,USK5#..DCB

 1
67003-0C113

USK5#..DCB

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09117

USK5#..HTWC

 4
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-0C113

USK5#..DCB

 1
67004-0C112

UPK5#,USK5#..DCB

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-0C060

UPK5#,USK5#..DCB

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-0C060

UPK5#,USK5#..DCB

 1
67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67405-0C010

USK5#..HTWC

 1
67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67406-0C010

USK5#..HTWC

 1
67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67407-0C020

USK5#..DCB..HTWC

 1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-0C020

USK5#..DCB..HTWC

 1
67841B - COVER, REAR DOOR SERVICE HOLE
67841-0C070

USK5#..DCB..HTWC

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-0C070

USK5#..DCB..HTWC

 1
67859B - COVER, REAR DOOR LOWER HOLE
67859-0C010

UPK5#,USK5#..DCB

 4
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-A0027

USK5#..DCB..HTWC

 14
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67867-12150

USK5#..DCB..HTWC

LH,RH

 7
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-0C040

USK5#..DCB..HTWC

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-12150

USK5#..DCB..HTWC

LH,RH

 27
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-0C040

USK5#..DCB..HTWC

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-0C040

USK5#..DCB..HTWC

 1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67888-0C030

USK5#..DCB..HTWC

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-0C050

UPK5#,USK5#..DCB..S

 1
68103-0C060

UPK5#,USK5#..DCB..S

REAR SIDE GLASS-PRIVACY

 1
68103-0C060

USK51,56..DCB..HTWC..L

 1
68103-0C060

USK5#..DCB..HTWC..S

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-0C060

UPK5#,USK5#..DCB..S

REAR SIDE GLASS-PRIVACY

 1
68104-0C050

UPK5#,USK5#..DCB..S

 1
68104-0C060

USK5#..DCB..HTWC..S

 1
68104-0C060

USK51,56..DCB..HTWC..L

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-0C030

USK5#..DCB..HTWC

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-0C030

USK5#..DCB..HTWC

 1
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163-0C010

USK5#..DCB..HTWC

 1
68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68164-0C010

USK5#..DCB..HTWC

 1
68191B - RUN, REAR DOOR GLASS, NO.2 RH
68191-0C020

USK5#..DCB..HTWC

REAR

 1
68191-0C010

USK5#..DCB..HTWC

FRONT

 1
68191B - RUN, REAR DOOR GLASS, NO.2 RH
68191-0C020

USK5#..DCB..HTWC

REAR

 1
68191-0C010

USK5#..DCB..HTWC

FRONT

 1
68192B - RUN, REAR DOOR GLASS, NO.2 LH
68192-0C020

USK5#..DCB..HTWC

REAR

 1
68192-0C010

USK5#..DCB..HTWC

FRONT

 1
68192B - RUN, REAR DOOR GLASS, NO.2 LH
68192-0C020

USK5#..DCB..HTWC

REAR

 1
68192-0C010

USK5#..DCB..HTWC

FRONT

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-0C041

USK5#..DCB..HTWC

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-0C041

USK5#..DCB..HTWC

 1
75923C - TAPE, BLACK OUT, NO.2 RH
75923-0C020

USK5#..HTWC

0 OR 1PIECE,REF.ILL.

 1
75923-0C020

USK5#..DCB..HTWC..S

LOW PACKAGE,0 OR 1PIECE,REF.ILL.

 1
75924C - TAPE, BLACK OUT, NO.2 LH
75924-0C020

USK5#..HTWC

0 OR 1PIECE,REF.ILL.

 1
75924-0C020

USK5#..DCB..HTWC..S

LOW PACKAGE,0 OR 1PIECE,REF.ILL.

 1
Common parts
62939-0C010
90080-17185
90084-10049
90119-A0063
90119-A0360
90950-01841
90950-01956
