USK51L-CRTSKA (2017)
Toyota Tundra
Production
Aug 2017
-
Sep 9999
Engine
3URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

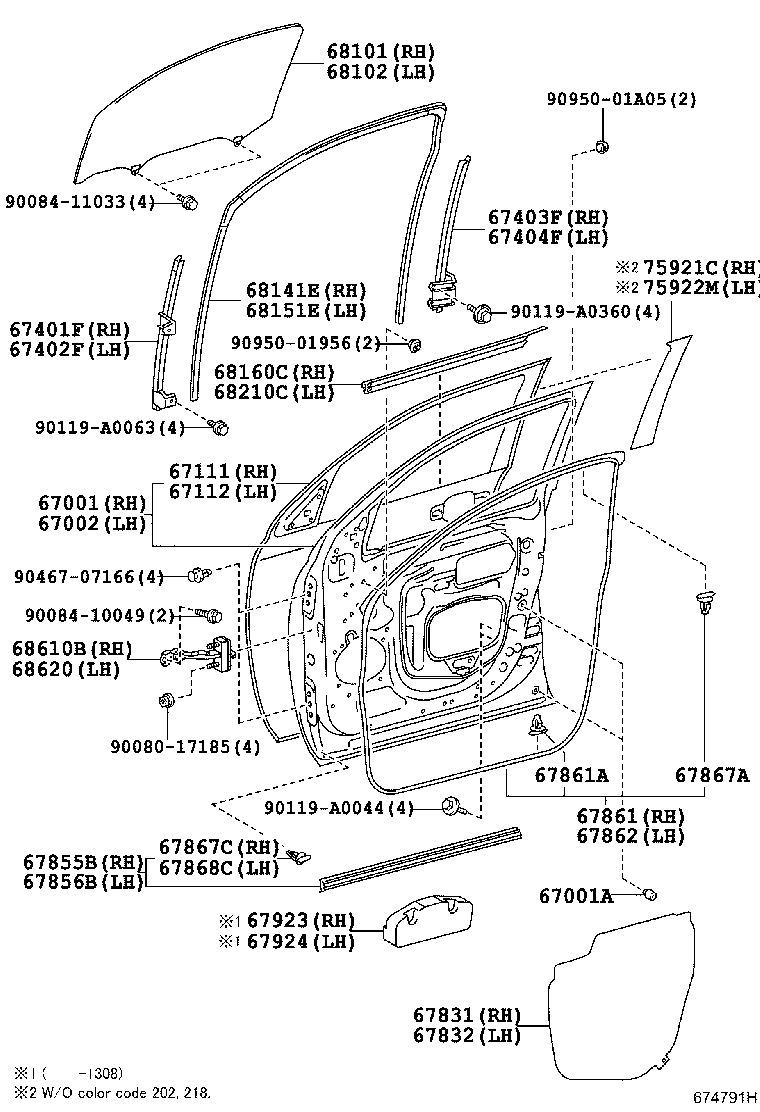

ILLUST NO. 1 OF 2(0611- )CMAX,DCB
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0C104 |
USK5#..HTWC |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09117 |
USK5#..HTWC |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0C103 |
USK5#..HTWC |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-0C050 |
USK5#..HTWC |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-0C050 |
USK5#..HTWC |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-0C030 |
USK5#..HTWC |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-0C030 |
USK5#..HTWC |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0C040 |
USK5#..HTWC |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0C040 |
USK5#..HTWC |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0C080 |
USK5#..HTWC |
1 | ||
| 67831-0C050 |
USK5#..HTWC |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0C030 |
USK5#..HTWC |
1 | ||
| 67832-0C060 |
USK5#..HTWC |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-0C010 |
USK5#..HTWC |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-0C010 |
USK5#..HTWC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0C030 |
USK5#..HTWC |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
USK5#..HTWC |
54 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0C030 |
USK5#..HTWC |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-A0027 |
USK5#..HTWC |
22 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
USK5#..HTWC |
8 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
USK5#..HTWC |
8 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0C040 |
USK5#..HTWC |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0C040 |
USK5#..HTWC |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0C030 |
USK5#..HTWC |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0C030 |
USK5#..HTWC |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-0C020 |
USK5#..HTWC |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-0C020 |
USK5#..HTWC |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-0C022 |
UPK5#,USK5# |
1 | ||
| 68610-0C023 |
USK5#..HTWC |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-0C022 |
UPK5#,USK5# |
1 | ||
| 68620-0C023 |
USK5#..HTWC |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-0C020 |
USK5#..HTWC 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75921-0C020 |
USK5#..DCB..HTWC..S LOW PACKAGE,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-0C020 |
USK5#..DCB..HTWC..S LOW PACKAGE,0 OR 1PIECE,REF.ILL. |
1 | ||
| 75922-0C020 |
USK5#..HTWC 0 OR 1PIECE,REF.ILL. |
1 | ||
| Common parts | ||||
| 90080-17185 | ||||
| 90084-10049 | ||||
| 90084-11033 | ||||
| 90119-A0044 | ||||
| 90119-A0063 | ||||
| 90119-A0360 | ||||
| 90467-07166 | ||||
| 90950-01956 | ||||
| 90950-01A05 | ||||
