USK51L-CRTSKA (2017)
Toyota Tundra

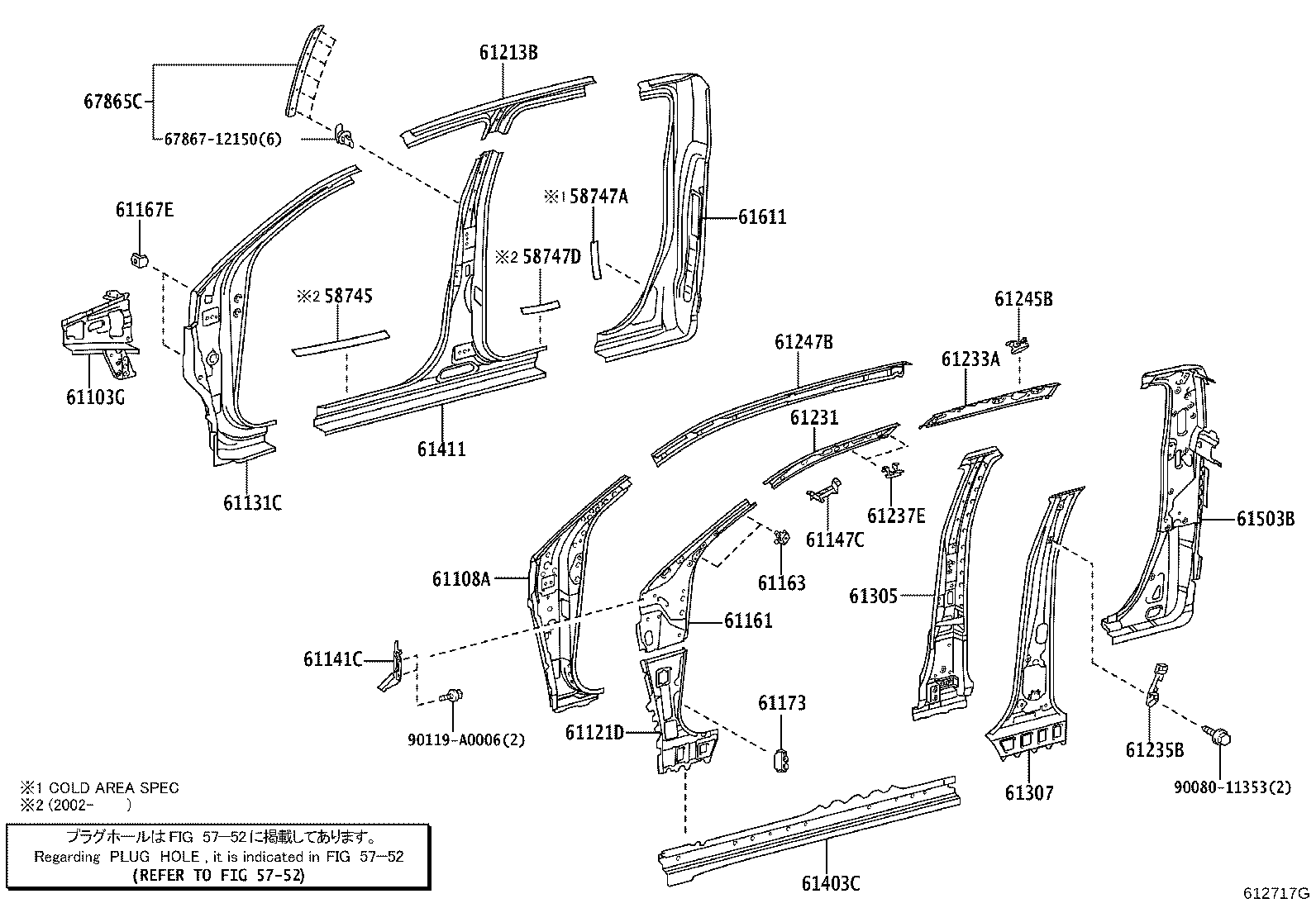

ILLUST NO. 1 OF 2(0611- )DCB
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58745-0C040 |
USK5# |
1 | ||
| 58747A - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-0C011 |
USK5#..HTWC COLD AREA SPEC |
1 | ||
| 58747D - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 58747-0C030 |
USK5#..DCB |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-0C010 |
USK5#..HTWC |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0C051 |
USK5#..HTWC |
1 | ||
| 61108-0C050 |
UPK5#,USK5# |
1 | ||
| 61121D - PANEL, COWL SIDE, RH | ||||
| 61121-0C011 |
USK5#..HTWC |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0C060 |
USK5#..DCB..HTWC |
1 | ||
| 61131-0C061 |
USK5#..DCB..HTWC |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-0C010 |
USK5#..HTWC |
1 | ||
| 61147C - EXTENSION, FRONT BODY PILLAR, OUTER RH | ||||
| 61147-0C010 |
USK5#..HTWC |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-0C041 |
USK5#..HTWC |
1 | ||
| 61163 - PILLAR, FRONT BODY, INNER RH | ||||
| 61163-0C010 |
USK5#..HTWC |
2 | ||
| 61167E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-06010 |
USK5#..HTWC |
2 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-0C020 |
USK5#..HTWC |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-0C030 |
USK5#..DCB..HTWC |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-0C040 |
USK5#..HTWC |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-0C020 |
USK5#..DCB..HTWC |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-0C010 |
USK5#..HTWC |
1 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-0C030 |
USK5#..HTWC |
2 | ||
| 61245B - BRACKET, ASSIST GRIP, NO.3 RH | ||||
| 61245-0C010 |
USK5#..DCB..HTWC |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61303-0C050 |
USK5#..DCB..HTWC |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-0C902 |
USK5#..HTWC |
1 | ||
| 61305-0C901 |
UPK5#,USK5# |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-0C011 |
USK5#..HTWC |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0C905 |
USK5#..DCB..HTWC |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-0C060 |
USK5#..DCB..HTWC |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-0C907 |
UPK5#,USK5#..DCB |
1 | ||
| 61503-0C910 |
USK5#..DCB..HTWC |
1 | ||
| 61503-0C911 |
USK5#..DCB..HTWC |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0C060 |
USK5#..DCB..HTWC |
1 | ||
| 67865C - WEATHERSTRIP, CENTER PILLAR UPPER END, RH | ||||
| 67865-0C020 |
USK5#..HTWC |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90080-11353 | ||||
| 90119-A0006 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(0611- )DCB
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58745-0C040 |
USK5# |
1 | ||
| 58748B - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58747-0C030 |
USK5#..DCB |
1 | ||
| 58748C - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 58748-0C011 |
USK5#..HTWC COLD AREA SPEC |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-0C010 |
USK5#..HTWC |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0C051 |
USK5#..HTWC |
1 | ||
| 61109-0C050 |
UPK5#,USK5# |
1 | ||
| 61122D - PANEL, COWL SIDE, LH | ||||
| 61122-0C011 |
USK5#..HTWC |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0C060 |
USK5#..DCB..HTWC |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-0C010 |
USK5#..HTWC |
1 | ||
| 61148 - EXTENSION, FRONT BODY PILLAR, OUTER LH | ||||
| 61148-0C010 |
USK5#..HTWC |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-0C040 |
USK5#..HTWC |
1 | ||
| 61164 - PILLAR, FRONT BODY, INNER LH | ||||
| 61164-0C020 |
USK5#..HTWC |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61164-0C030 |
USK5#..HTWC |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-06010 |
USK5#..HTWC |
2 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-0C010 |
USK5#..HTWC |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-0C030 |
USK5#..DCB..HTWC |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-0C040 |
USK5#..HTWC |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-0C020 |
USK5#..DCB..HTWC |
1 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61236-0C010 |
USK5#..HTWC |
1 | ||
| 61246B - BRACKET, ASSIST GRIP, NO.3 LH | ||||
| 61245-0C010 |
USK5#..DCB..HTWC |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61304-0C050 |
USK5#..DCB..HTWC |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-0C902 |
UPK5#,USK5# |
1 | ||
| 61306-0C903 |
USK5#..HTWC |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-0C021 |
USK5#..HTWC |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-0C905 |
USK5#..DCB..HTWC |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-0C060 |
USK5#..DCB..HTWC |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-0C910 |
UPK5#,USK5#..DCB |
1 | ||
| 61504-0C912 |
USK5#..DCB..HTWC |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0C080 |
USK5#..DCB..HTWC |
1 | ||
| 67866B - WEATHERSTRIP, CENTER PILLAR UPPER END, LH | ||||
| 67866-0C020 |
USK5#..HTWC |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90080-11353 | ||||
| 90119-A0006 | ||||
| Linked diagrams | ||||
| 5752 | ||||
