USK51L-CRTSKA (2017)

Toyota Tundra

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )DCB

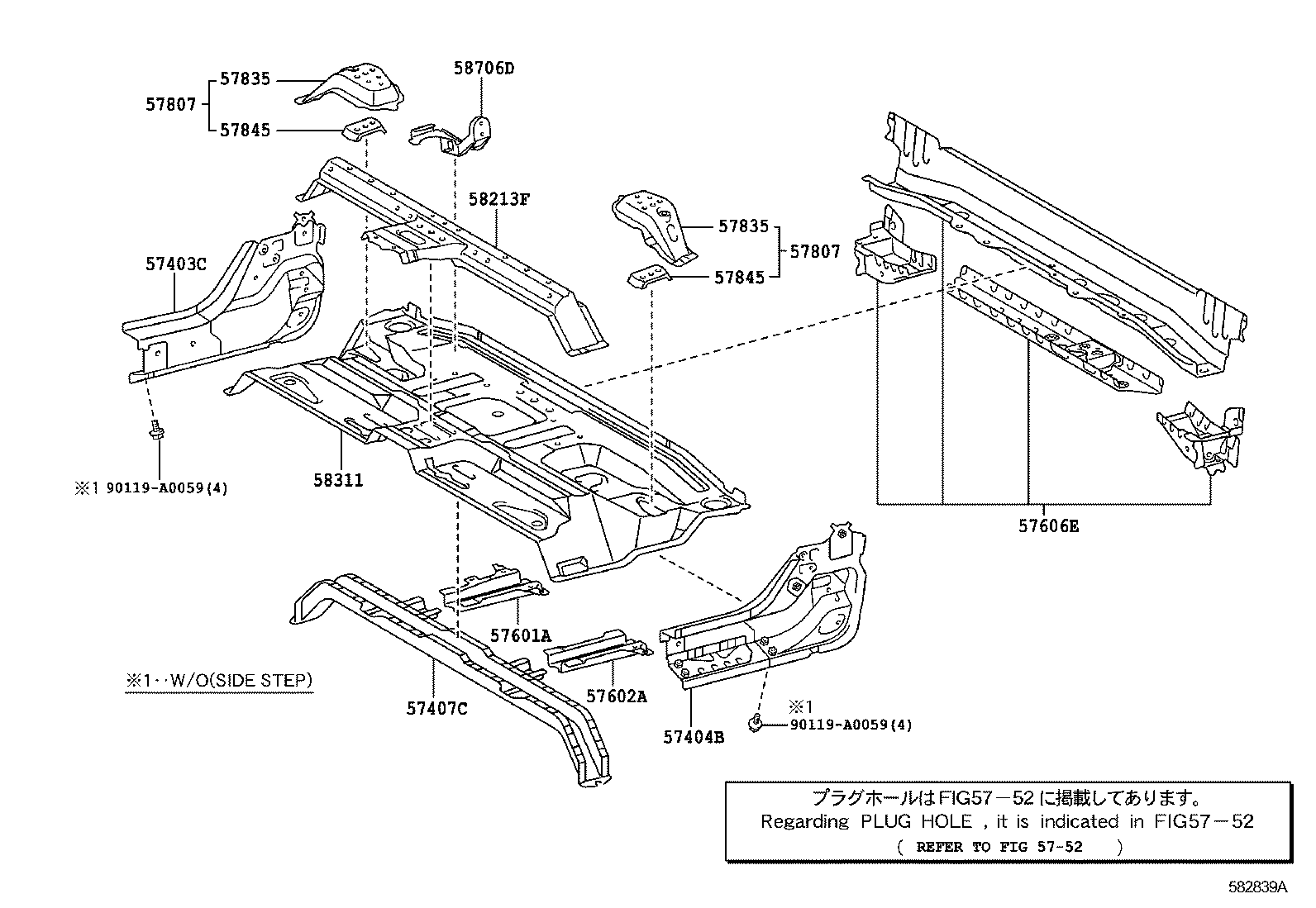

Click highlighted areas on diagram

diagram 57403C 57404B 57407C 5752 57601A 57602A 57606E 57807 57807 57835 57835 57845 57845 58213F 58311 58706D 90119A0059 90119A0059
Part # Description Qty Price
57403C - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57403-0C050

USK5#..DCB..HTWC

 1
57404B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57404-0C030

USK5#..DCB..HTWC

 1
57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57407-0C020

USK5#..HTWC

 1
57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-0C020

USK5#..DCB..HTWC

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-0C020

USK5#..DCB..HTWC

 1
57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-0C040

USK5#..DCB..HTWC

 1
57807 - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.3
57803-0C010

USK5#..DCB..HTWC

 2
57807 - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.3
57803-0C010

USK5#..DCB..HTWC

 2
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-0C040

USK5#..DCB..HTWC

 2
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-0C040

USK5#..DCB..HTWC

 2
57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
57845-0C020

USK5#..DCB..HTWC

 2
57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
57845-0C020

USK5#..DCB..HTWC

 2
58213F - REINFORCEMENT, CENTER FLOOR PANEL
58213-0C040

UPK5#,USK5#..DCB

 1
58213-0C041

USK5#..DCB..HTWC

 1
58311 - PAN, REAR FLOOR
58311-0C100

USK5#..DCB..HTWC

 1
58706D - BRACKET SUB-ASSY, JACK CARRIER, NO.1
58706-0C030

USK5#..DCB..HTWC

 1
Common parts
90119-A0059
Linked diagrams
5752
