USK51L-CRTSKA (2017)
Toyota Tundra

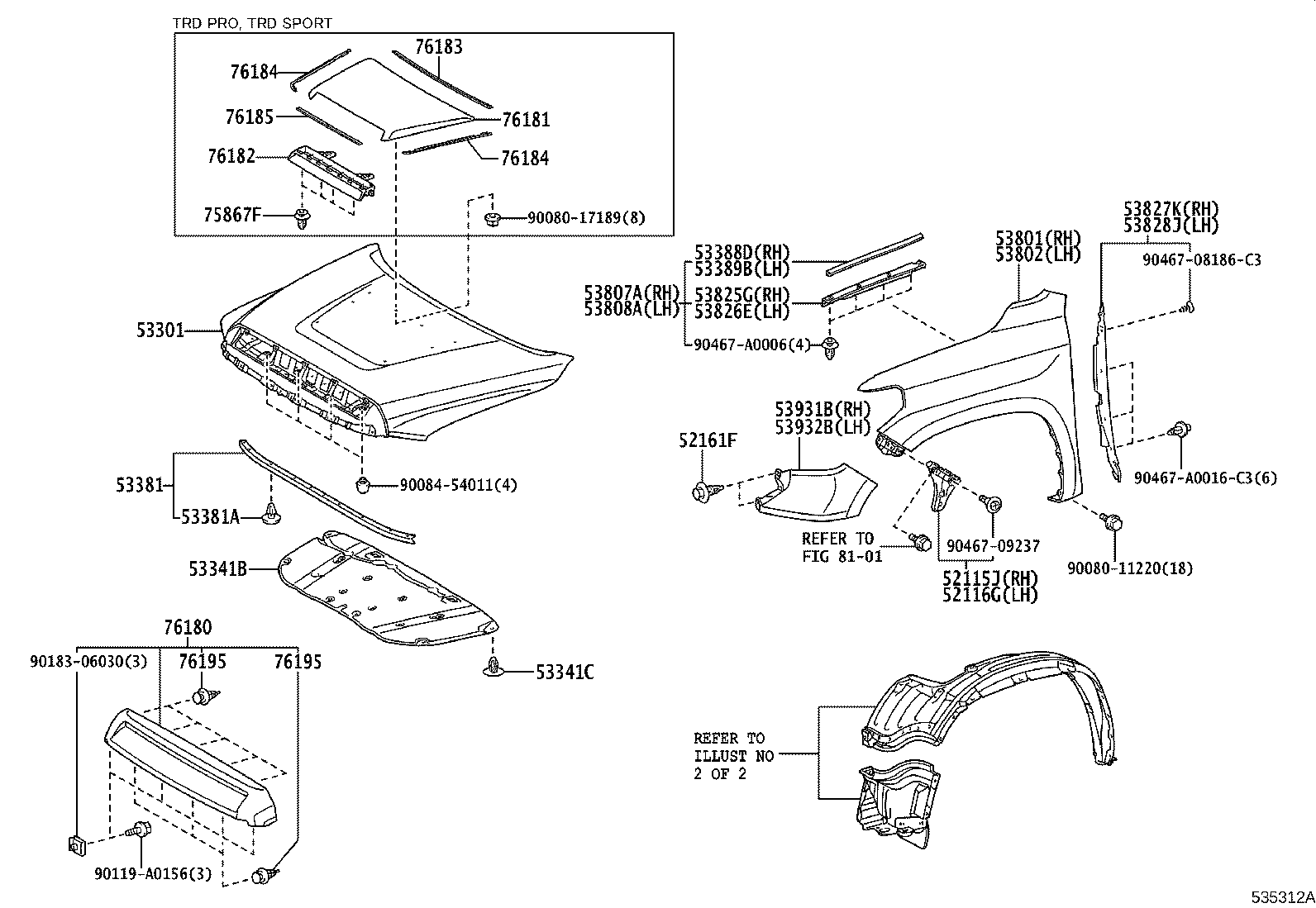

ILLUST NO. 1 OF 2(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115J - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-0C110 |
USK5#..HTWC |
1 | ||
| 52116G - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-0C110 |
USK5#..HTWC |
1 | ||
| 52161F - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
USK5#..HTWC |
4 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0C060 |
USK51,56..S TRD SPORT |
1 | ||
| 53301-0C060 |
USK51..S TRD PRO |
1 | ||
| 53301-0C050 |
UPK5#,USK5# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0C021 |
USK5#..HTWC |
1 | ||
| 53341-0C021 |
USK5#..DCB..HTWC..S LOW PACKAGE |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-A0003 |
USK5#..DCB..HTWC..S LOW PACKAGE |
10 | ||
| 90467-A0003 |
USK5#..HTWC |
10 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0C020 |
USK5#..HTWC |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
USK5#..HTWC |
10 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-0C030 |
USK5#..HTWC |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53388-0C030 |
USK5#..HTWC |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-0C061 |
USK5#..HTWC |
1 | ||
| 53811-0C060 |
USK5#..HTWC |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-0C050 |
USK5#..HTWC |
1 | ||
| 53807A - SHIELD SUB-ASSY, FENDER SPLASH, REAR RH | ||||
| 53807-0C040 |
USK5#..HTWC |
1 | ||
| 53808A - SHIELD SUB-ASSY, FENDER SPLASH, REAR LH | ||||
| 53808-0C020 |
USK5#..HTWC |
1 | ||
| 53825G - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-0C010 |
USK5#..HTWC |
1 | ||
| 53826E - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-0C010 |
USK5#..HTWC |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0C010 |
USK5#..HTWC |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0C010 |
USK5#..HTWC |
1 | ||
| 53931B - PANEL, FRONT END, RH | ||||
| 53931-0C903 |
USK5#..HTWC |
1 | ||
| 53932B - PANEL, FRONT END, LH | ||||
| 53932-0C903 |
USK5#..HTWC |
1 | ||
| 75867F - CLIP, ROCKER PANEL MOULDING | ||||
| 75868-33020 |
USK51,56..S TRD SPORT |
4 | ||
| 75868-33020 |
USK51..S TRD PRO |
4 | ||
| 76180 - BULGE ASSY, HOOD | ||||
| 76180-0C030B1 |
USK51..S TRD PRO,GRAY ME.,1G3 |
1 | ||
| 76180-0C030A0 |
USK51..S TRD PRO,SUPER WHITE 2,040 |
1 | ||
| 76180-0C030C0 |
USK51..S TRD PRO,ATTITUDE BLACK MC.,218 |
1 | ||
| 76180-0C030J2 |
USK51..S TRD PRO,GRAYISH BLUE,8W2 |
1 | ||
| 76180-0C030D0 |
USK51..S TRD PRO,RED M.M.,3R3 |
1 | ||
| 76180-0C030J1 |
USK51,56..S TRD PRO,BLUE M.M.,8T0 |
1 | ||
| 76180-0C030A0 |
USK51,56..S TRD SPORT,SUPER WHITE 2,040 |
1 | ||
| 76180-0C020 |
UPK5#,USK5#..L,S |
1 | ||
| 76180-0C030D0 |
USK51,56..S TRD SPORT,RED M.M.,3R3 |
1 | ||
| 76180-0C010 |
UPK5#,USK5#..DCB..S LOW PACKAGE |
1 | ||
| 76180-0C030J1 |
USK51,56..S TRD SPORT,BLUE M.M.,8T0 |
1 | ||
| 76180-0C030C0 |
USK51,56..S TRD SPORT,ATTITUDE BLACK MC.,218 |
1 | ||
| 76180-0C030B1 |
USK51,56..S TRD SPORT,GRAY ME.,1G3 |
1 | ||
| 76180-0C030B1 |
USK51,56..DCB..S YOUTH EDITION,GRAY ME.,1G3 |
1 | ||
| 76180-0C030J2 |
USK51,56..S TRD SPORT,GRAYISH BLUE,8W2 |
1 | ||
| 76180-0C030A0 |
USK51,56..DCB..S YOUTH EDITION,SUPER WHITE 2,040 |
1 | ||
| 76180-0C030J3 |
USK51,56..DCB..S YOUTH EDITION,BLUE,8T6 |
1 | ||
| 76180-0C030G0 |
USK51,56..S TRD SPORT,DK.GREEN,6V7 |
1 | ||
| 76180-0C030G0 |
USK51,56..DCB..S YOUTH EDITION,DK.GREEN,6V7 |
1 | ||
| 76180-0C030J3 |
USK51,56..S TRD SPORT,BLUE,8T6 |
1 | ||
| 76180-0C030J2 |
USK51,56..DCB..S YOUTH EDITION,GRAYISH BLUE,8W2 |
1 | ||
| 76180-0C030D0 |
USK51,56..DCB..S YOUTH EDITION,RED M.M.,3R3 |
1 | ||
| 76180-0C030A0 |
USK51,56..L NIGHTSHADE,SUPER WHITE 2,040 |
1 | ||
| 76180-0C030B1 |
USK51,56..L NIGHTSHADE,GRAY ME.,1G3 |
1 | ||
| 76180-0C030A1 |
USK51,56..L NIGHTSHADE,PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 76180-0C030C0 |
USK51,56..DCB..S YOUTH EDITION,ATTITUDE BLACK MC.,218 |
1 | ||
| 76180-0C030C0 |
USK51,56..L NIGHTSHADE,ATTITUDE BLACK MC.,218 |
1 | ||
| 76181 - BULGE, HOOD | ||||
| 76181-34900 |
USK51..S TRD PRO |
1 | ||
| 76181-34900 |
USK51,56..S TRD SPORT |
1 | ||
| 76182 - GUIDE, HOOD AIR INTAKE | ||||
| 76182-34900 |
USK51..S TRD PRO |
1 | ||
| 76182-34900 |
USK51,56..S TRD SPORT |
1 | ||
| 76183 - PROTECTOR, HOOD BULGE, NO.1 | ||||
| 76183-34010 |
USK51,56..S TRD SPORT |
1 | ||
| 76183-34010 |
USK51..S TRD PRO |
1 | ||
| 76184 - PROTECTOR, HOOD BULGE, NO.2 | ||||
| 76184-34010 |
USK51..S TRD PRO |
2 | ||
| 76184-34010 |
USK51,56..S TRD SPORT |
2 | ||
| 76184 - PROTECTOR, HOOD BULGE, NO.2 | ||||
| 76184-34010 |
USK51..S TRD PRO |
2 | ||
| 76184-34010 |
USK51,56..S TRD SPORT |
2 | ||
| 76185 - PROTECTOR, HOOD BULGE, NO.3 | ||||
| 76185-34010 |
USK51..S TRD PRO |
1 | ||
| 76185-34010 |
USK51,56..S TRD SPORT |
1 | ||
| 76195 - CLIP, HOOD BULGE | ||||
| 75867-AA010 |
UPK5#,USK5# |
8 | ||
| 76195 - CLIP, HOOD BULGE | ||||
| 75867-AA010 |
UPK5#,USK5# |
8 | ||
| Common parts | ||||
| 90080-11220 | ||||
| 90080-17189 | ||||
| 90084-54011 | ||||
| 90119-A0156 | ||||
| 90183-06030 | ||||
| 90467-08186C3 | ||||
| 90467-09237 | ||||
| 90467-A0006 | ||||
| 90467-A0016C3 | ||||
| Linked diagrams | ||||
| 8101 | ||||
