USK51L-CRTSKA (2017)

Toyota Tundra

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

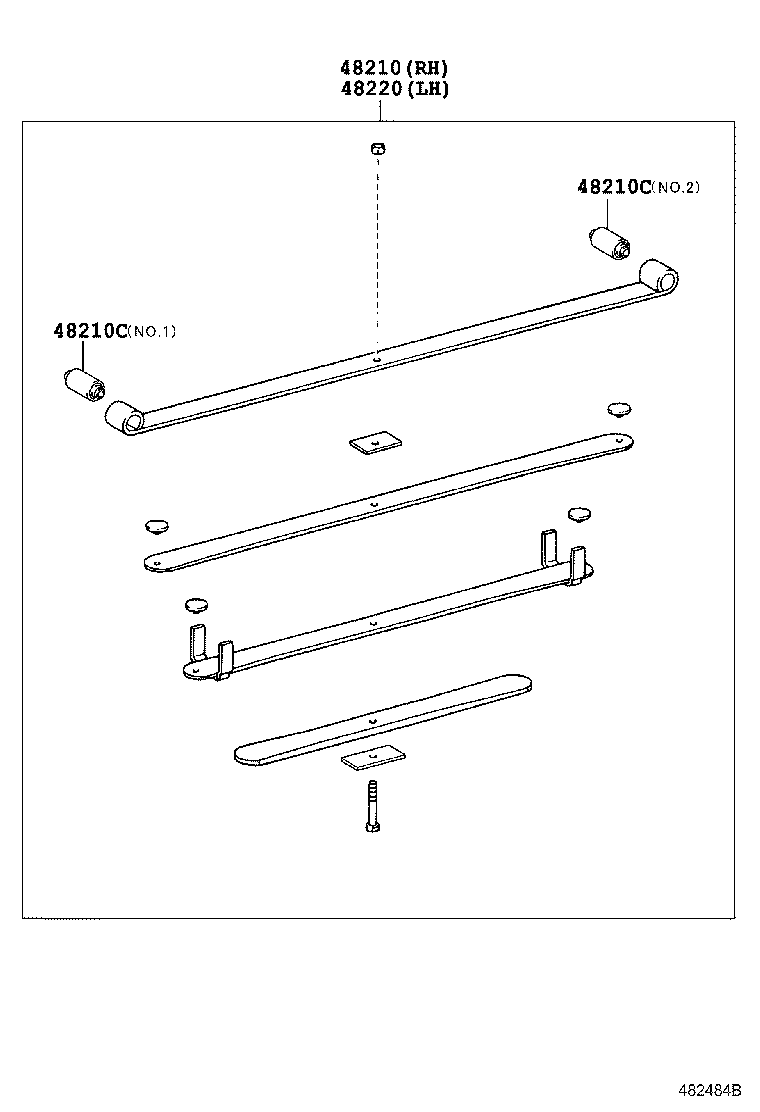

ILLUST NO. 2 OF 2(0611- )

Click highlighted areas on diagram

MAIN 3+HELPER 1-LEAF

diagram 48210 48210C 48210C 48220
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0C132

USK51..S

MAIN 3+HELPER 1-LEAF,TRD PRO

 1
48210-0C102

USK51,52..DCB

MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE

 1
48210-0C292

USK51,52..DCB

MAIN 3+HELPER 1-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-A0008

USK5#..HTWC

NO.1

 2
90389-A0004

USK5#..HTWC

NO.2

 2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-A0008

USK5#..HTWC

NO.1

 2
90389-A0004

USK5#..HTWC

NO.2

 2
48220 - SPRING ASSY, REAR LH
48220-0C102

USK51,52..DCB

MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE

 1
48220-0C132

USK51..S

MAIN 3+HELPER 1-LEAF,TRD PRO

 1
48220-0C292

USK51,52..DCB

MAIN 3+HELPER 1-LEAF

 1
