USK51L-CRTSKA (2017)
Toyota Tundra
Production
Aug 2017
-
Sep 9999
Engine
3URFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

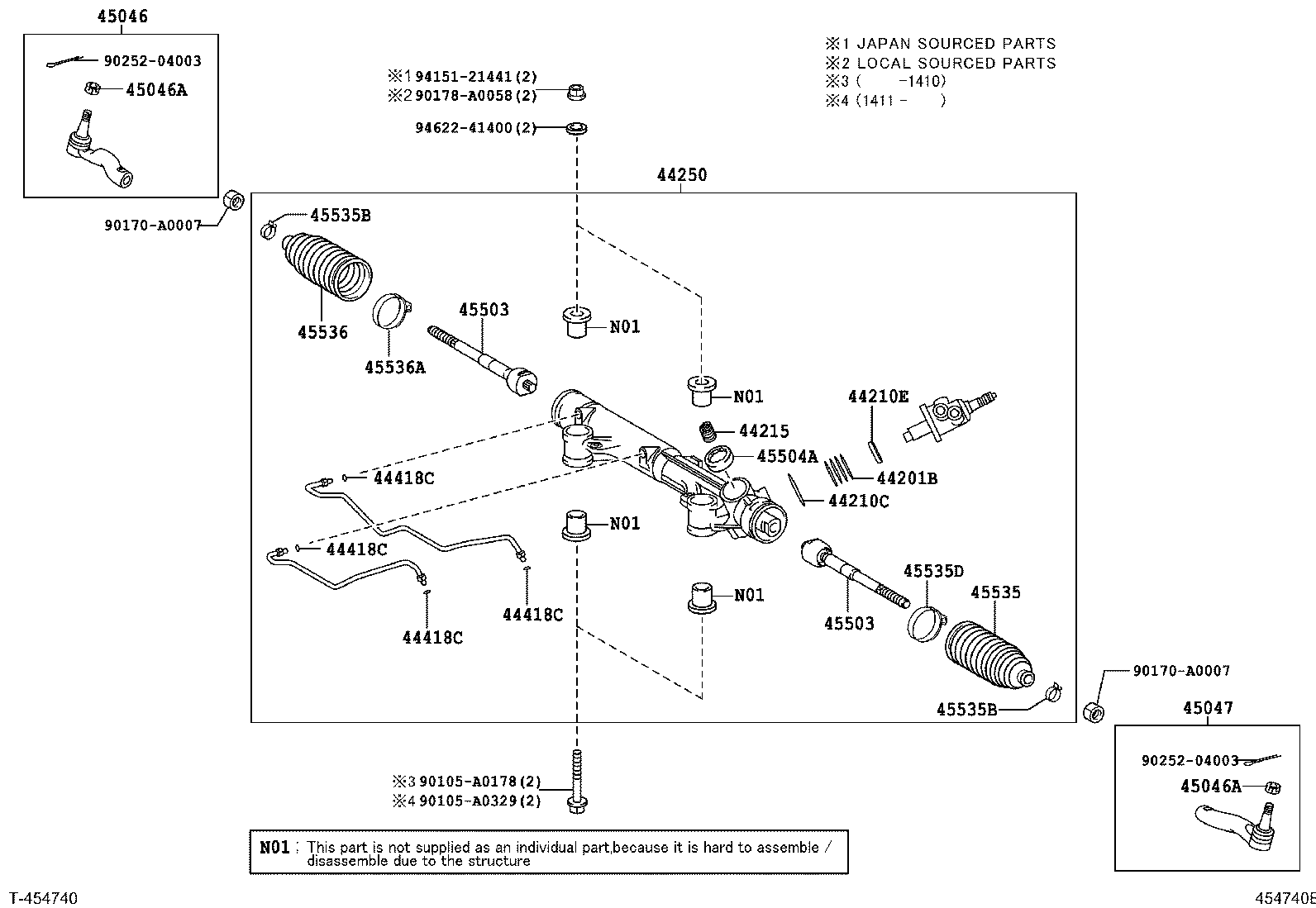

ILLUST NO. 1 OF 2(0611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44215 - SPRING, CONTROL VALVE PRE-SET | ||||
| 44215-0C020 |
USK5#..HTWC |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-0C131 |
USK5#..HTWC |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90080-30046 |
USK5#..HTWC |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90080-30046 |
USK5#..HTWC |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90080-30046 |
USK5#..HTWC |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90080-30046 |
USK5#..HTWC |
4 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09560 |
USK5#..HTWC |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16009 |
USK5#..HTWC |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16009 |
USK5#..HTWC |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-09260 |
USK5#..HTWC |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-0C030 |
USK5#..HTWC |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-0C030 |
USK5#..HTWC |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-0C030 |
USK5#..HTWC |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-A0005 |
USK5#..HTWC |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-A0005 |
USK5#..HTWC |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-A0004 |
USK5#..HTWC |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-0C030 |
USK5#..HTWC |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-A0004 |
USK5#..HTWC |
1 | ||
| Common parts | ||||
| 90105-A0178 | ||||
| 90105-A0329 | ||||
| 90170-A0007 | ||||
| 90178-A0058 | ||||
| 90252-04003 | ||||
| 94151-21441 | ||||
| 94622-41400 | ||||

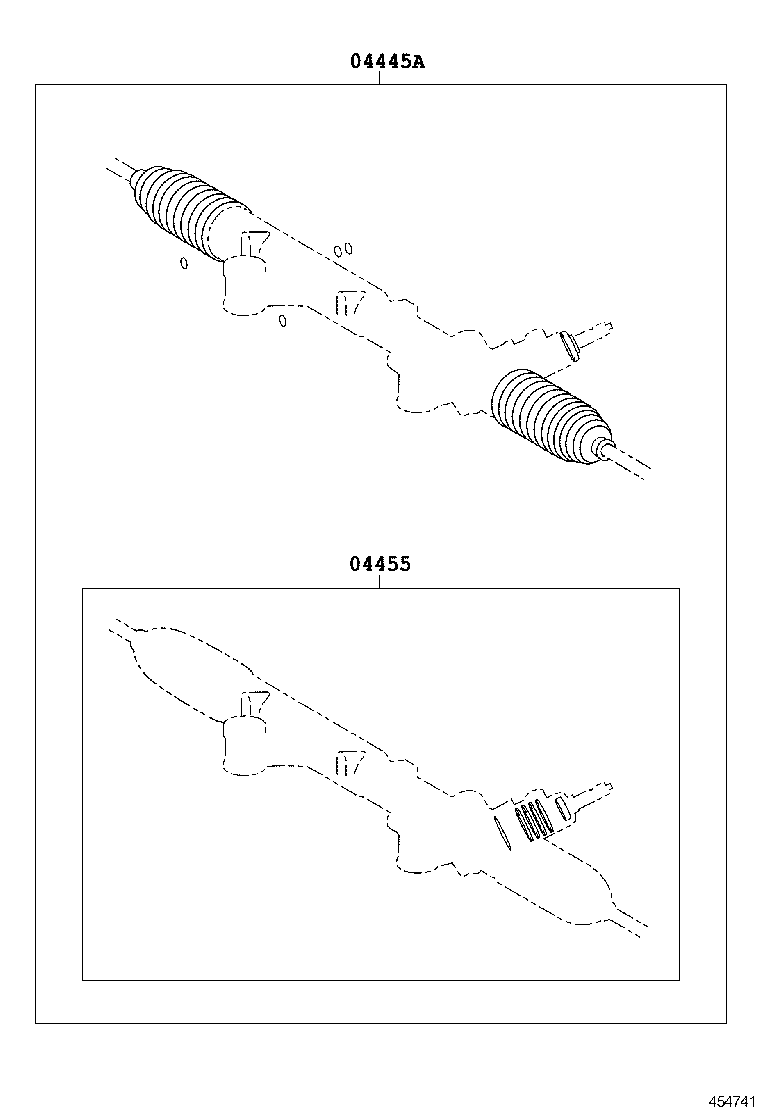

ILLUST NO. 2 OF 2(0611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0C060 |
USK5#..HTWC |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-0C020 |
USK5#..HTWC |
1 | ||
