USK51L-CRTLKA (2013)

Toyota Tundra

Production Aug 2013 - Aug 2017
Engine 3URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )3UR#

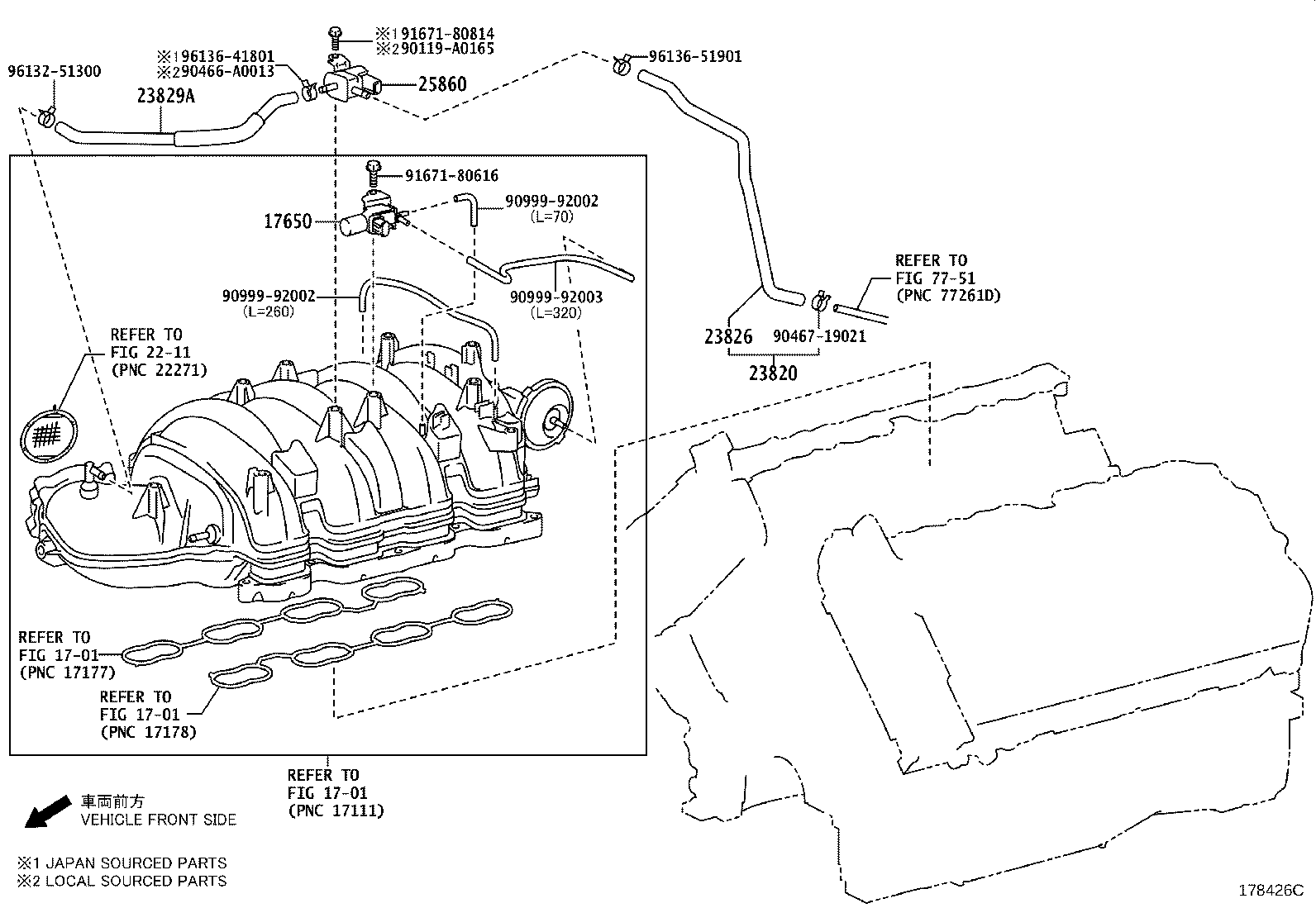

Click highlighted areas on diagram

FUEL TANK-38 GALLON

diagram 1701 1701 1701 17650 2211 23820 23826 23829A 25860 7751 90119A0165 90466A0013 9046719021 9099992002 9099992002 9099992003 9167180616 9167180814 9613251300 9613641801 9613651901
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-0S010

1URFE,3UR#..UPK5#,USK5#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0S030

3UR#..USK5#

 1
23820-0S060

3UR#..USK5#

 1
23820-0S050

3UR#..USK5#

FUEL TANK-38 GALLON

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0S030

3UR#..USK5#

FUEL TANK-38 GALLON

 1
23829A - HOSE, FUEL VAPOR FEED
23829-0S010

3UR#..USK5#

(L)

 1
23829-38080

3UR#..USK5#

FUEL TANK-38 GALLON

 1
23829-38010

3UR#..USK5#

(J)

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0S020

1URFE,3UR#..UPK5#,USK5#

(L)

 1
25860-31060

1URFE,3UR#..UPK5#,USK5#

(J)

 1
25860-38050

3UR#..USK5#

FUEL TANK-38 GALLON

 1
Common parts
90119-A0165
90466-A0013
90467-19021
90999-92002
90999-92003
91671-80616
91671-80814
96132-51300
96136-41801
96136-51901
Linked diagrams
1701
2211
7751
