UPK57L-CHTSKA (2009)

Toyota Tundra

Production Apr 2009 - May 2010
Engine 1URFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )1URFE

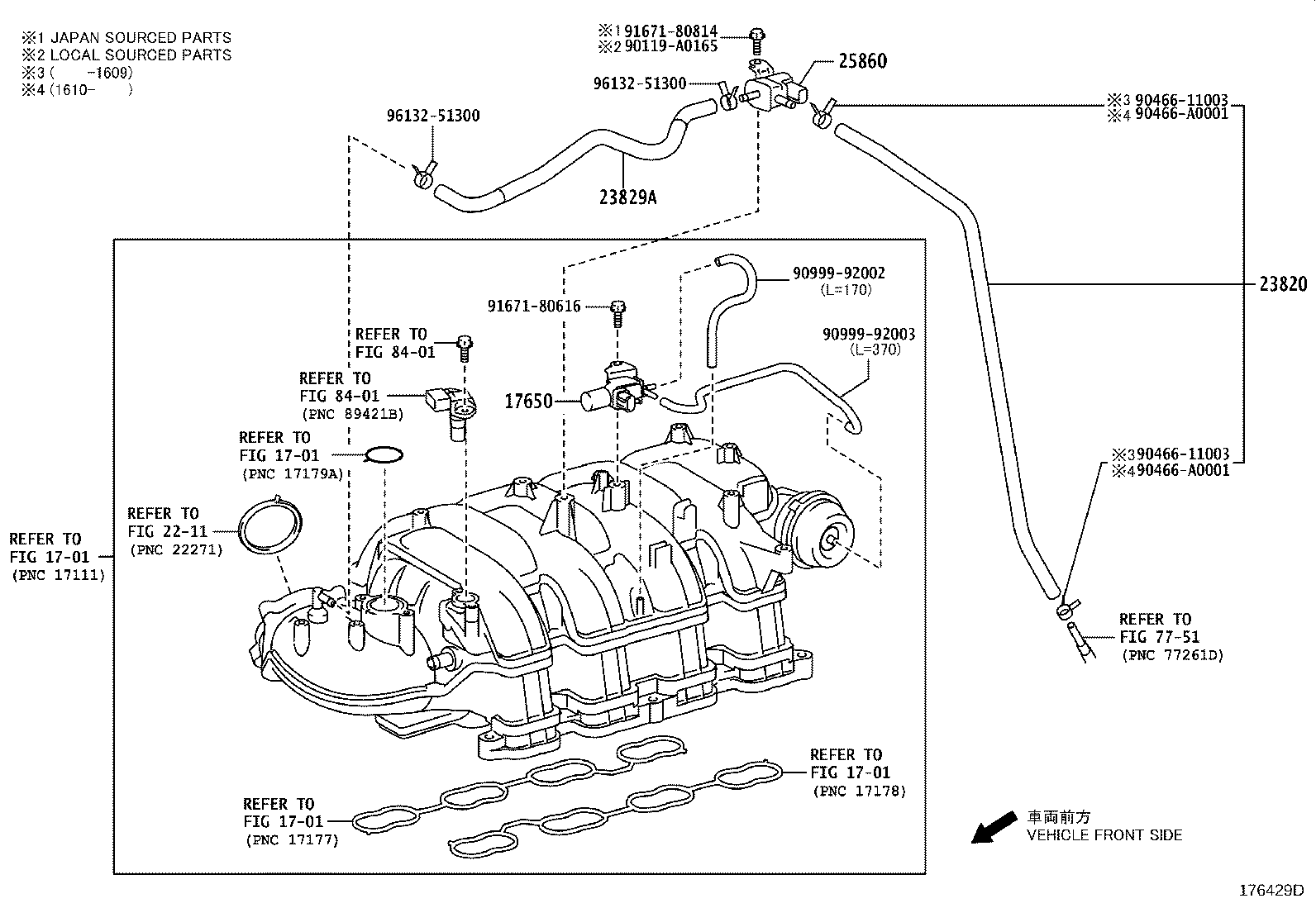

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 17650 2211 23820 23829A 25860 7751 8401 8401 90119A0165 9046611003 9046611003 90466A0001 90466A0001 9099992002 9099992003 9167180616 9167180814 9613251300 9613251300
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-0S010

1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0S020

1URFE..UPK52,57;1URFE..UPK51,55,56..D,L

 1
23829A - HOSE, FUEL VAPOR FEED
23829-38060

1URFE..UPK52,57;1URFE..UPK51,55,56..D,L

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31060

1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L

(J)

 1
25860-0S020

1URFE..UPK52,57;1URFE,3URFE..UPK51,55,56,USK50..D,L

(L)

 1
Common parts
90119-A0165
90466-11003
90466-A0001
90999-92002
90999-92003
91671-80616
91671-80814
96132-51300
Linked diagrams
1701
2211
7751
8401
