UPK51L-CRTSKA (2013)
Toyota Tundra

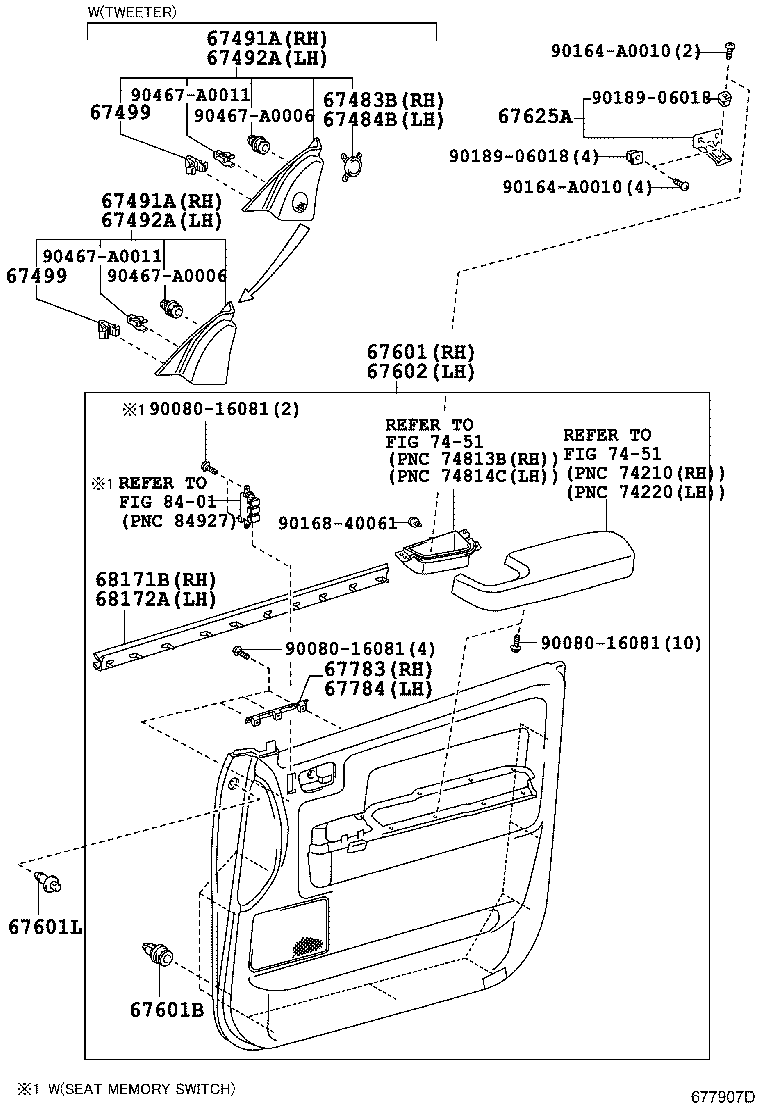

ILLUST NO. 2 OF 2(1308-1503)CMAX,DCB
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0C050 |
UPK5#,USK5# |
1 | ||
| 67491-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0C050 |
UPK5#,USK5# |
1 | ||
| 67491-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0C050 |
UPK5#,USK5# |
1 | ||
| 67492-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0C050 |
UPK5#,USK5# |
1 | ||
| 67492-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-58010 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
2 | ||
| 67771-58010 |
UPK5#,USK5# |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-58010 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
2 | ||
| 67771-58010 |
UPK5#,USK5# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0C690C2 |
GSK51,UPK5#,USK5#..DCB..S LOW PACKAGE&AUDIO-ENTRY DISPLAY,BLACK,TRIM1# |
1 | ||
| 67610-0C570C1 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S BLACK,TRIM1#,2#,4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0005 |
UPK5#,USK5#..CMAX,DCB |
18 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07076C0 |
GSK51,UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| 90467-07076C7 |
UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0C590C1 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S BLACK,TRIM1#,2#,4# |
1 | ||
| 67620-0C690C2 |
GSK51,UPK5#,USK5#..DCB..S LOW PACKAGE&AUDIO-ENTRY DISPLAY,BLACK,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-0C040 |
UPK5#,USK5# |
2 | ||
| 67625-0C020 |
UPK5#,USK5# |
2 | ||
| 67783 - COVER, FRONT DOOR TRIM, CENTER RH | ||||
| 67781-0C330C0 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..(L,S) BLACK,TRIM1#,2#,4# |
1 | ||
| 67784 - COVER, FRONT DOOR TRIM, CENTER LH | ||||
| 67782-0C330C0 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..(L,S) BLACK,TRIM1#,2#,4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0C030 |
GSK51,UPK5#,USK5#..CMAX,DCB |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0C030 |
GSK51,UPK5#,USK5#..CMAX,DCB |
1 | ||
| Common parts | ||||
| 90080-16081 | ||||
| 90164-A0010 | ||||
| 90168-40061 | ||||
| 90189-06018 | ||||
| 90467-A0006 | ||||
| 90467-A0011 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8401 | ||||

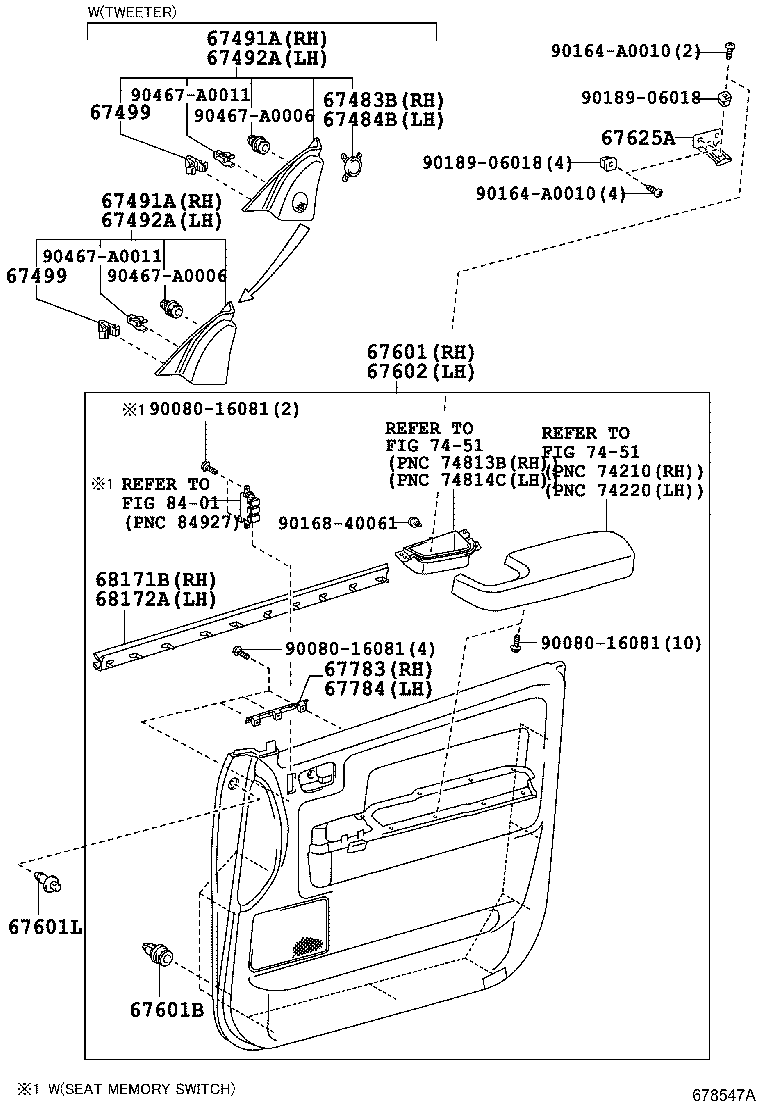

ILLUST NO. 2 OF 2(1503- )CMAX,DCB
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0C050 |
UPK5#,USK5# |
1 | ||
| 67491-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0C050 |
UPK5#,USK5# |
1 | ||
| 67491-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0C050 |
UPK5#,USK5# |
1 | ||
| 67492-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0C050 |
UPK5#,USK5# |
1 | ||
| 67492-0C050 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-58010 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
2 | ||
| 67771-58010 |
UPK5#,USK5# |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-58010 |
USK56,57..DCB,RCB;UPK5#,USK51,52..(DCB,RCB)..HTWC AUDIO-AVN |
2 | ||
| 67771-58010 |
UPK5#,USK5# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0C690C2 |
GSK51,UPK5#,USK5#..DCB..S LOW PACKAGE&AUDIO-ENTRY DISPLAY,BLACK,TRIM1# |
1 | ||
| 67610-0C570C1 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S BLACK,TRIM1#,2#,4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-A0005 |
UPK5#,USK5#..CMAX,DCB |
18 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07076C0 |
GSK51,UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| 90467-07076C7 |
UPK5#,USK5#..L,S BLACK,TRIM1#,2#,4# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0C590C1 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..S BLACK,TRIM1#,2#,4# |
1 | ||
| 67620-0C690C2 |
GSK51,UPK5#,USK5#..DCB..S LOW PACKAGE&AUDIO-ENTRY DISPLAY,BLACK,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-0C040 |
UPK5#,USK5# |
2 | ||
| 67625-0C020 |
UPK5#,USK5# |
2 | ||
| 67783 - COVER, FRONT DOOR TRIM, CENTER RH | ||||
| 67781-0C330C0 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..(L,S) BLACK,TRIM1#,2#,4# |
1 | ||
| 67784 - COVER, FRONT DOOR TRIM, CENTER LH | ||||
| 67782-0C330C0 |
GSK51,UPK5#,USK5#..(CMAX,DCB)..(L,S) BLACK,TRIM1#,2#,4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0C030 |
GSK51,UPK5#,USK5#..CMAX,DCB |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0C030 |
GSK51,UPK5#,USK5#..CMAX,DCB |
1 | ||
| Common parts | ||||
| 90080-16081 | ||||
| 90164-A0010 | ||||
| 90168-40061 | ||||
| 90189-06018 | ||||
| 90467-A0006 | ||||
| 90467-A0011 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8401 | ||||
