UPK51L-CRTLKA (2009)
Toyota Tundra
(0904- )UPK50,51,55,56
A760E,A760F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14033 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14033 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-34040 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32943-34020 |
USK50,51,55,56 TOWING PACKAGE-WITH |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-34040 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32943-34020 |
USK50,51,55,56 TOWING PACKAGE-WITH |
2 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 33490F - COOLER ASSY, TRANSMISSION OIL | ||||
| 33493-34030 |
UPK52,57;UPK51,55,56..D,L |
1 | ||
| 33490G - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 33490G - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 35469Q - SPACER (FOR TRANSMISSION OIL COOLER) | ||||
| 35469-34040 |
UPK51,55,56..D,L |
1 | ||
| Common parts | ||||
| 90105-A0189 | ||||
| 91551-80818 | ||||
| Linked diagrams | ||||
| 1603 | ||||

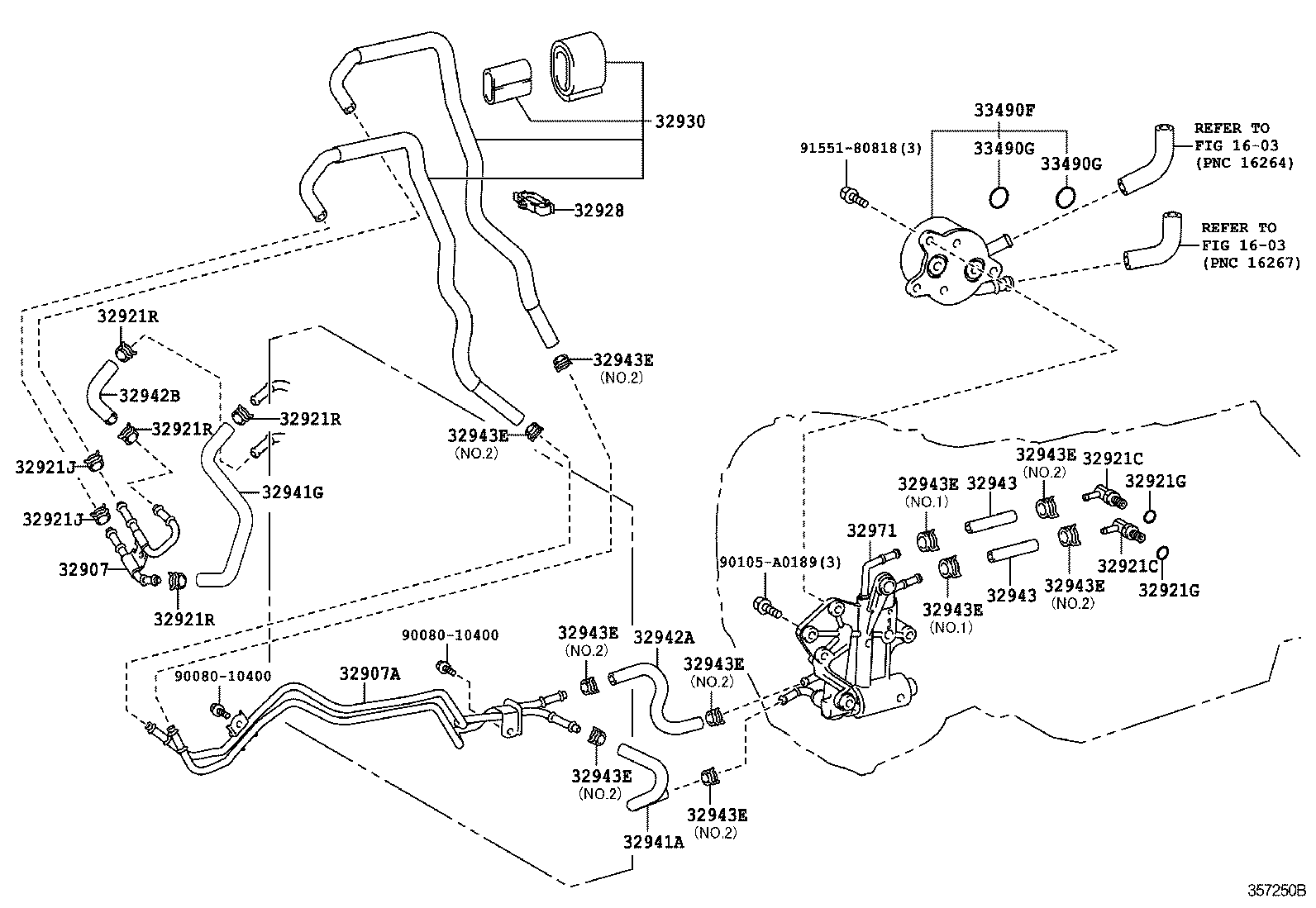

(0904- )UPK5#
A760E,A760F W(AIR OIL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-0C050 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 32907-0C030 |
USK50,51,55,56 TOWING PACKAGE-WITH |
1 | ||
| 32907A - TUBE, OIL COOLER | ||||
| 32907-0C040 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14033 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14033 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
UPK51,55,56,USK50..D,L TOWING PACKAGE-WITH |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
UPK51,55,56,USK50..D,L TOWING PACKAGE-WITH |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
4 | ||
| 90466-16005 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
4 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
4 | ||
| 90466-16005 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
4 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
4 | ||
| 90466-16005 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
4 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
4 | ||
| 90466-16005 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
4 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-34030 |
UPK51,55,56,USK50..D,L TOWING PACKAGE-WITH |
1 | ||
| 32930 - ACCESSORY ASSY, OIL COOLER | ||||
| 32930-0C010 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32941-0C040 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 32941G - HOSE, OIL COOLER INLET, NO.3 | ||||
| 32941-0C060 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 32942-0C050 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 32942B - HOSE, OIL COOLER OUTLET, NO.3 | ||||
| 32942-0C070 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-34040 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32943-34020 |
USK50,51,55,56 TOWING PACKAGE-WITH |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-34040 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 32943-34020 |
USK50,51,55,56 TOWING PACKAGE-WITH |
2 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH |
6 | ||
| 90466-A0014 |
UPK51,55,56..D,L NO.2 |
2 | ||
| 90467-A0012 |
USK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
2 | ||
| 90467-A0012 |
GSK5#,UPK50,51,55,56 NO.2 |
2 | ||
| 90466-16004 |
UPK52,57;UPK51,55,56..D,L NO.1 |
2 | ||
| 90467-A0012 |
UPK50,51,55,56 TOWING PACKAGE-WITH,NO.2 |
8 | ||
| 90466-A0014 |
UPK51,55,56..D,L TOWING PACKAGE-WITH,NO.2 |
4 | ||
| 32971 - THERMOSTAT, TRANSMISSION OIL | ||||
| 32971-34030 |
UPK51,55,56..D,L TOWING PACKAGE-WITH |
1 | ||
| 33490F - COOLER ASSY, TRANSMISSION OIL | ||||
| 33493-34030 |
UPK52,57;UPK51,55,56..D,L |
1 | ||
| 33490G - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| 33490G - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
UPK52,57;UPK51,55,56..D,L |
2 | ||
| Common parts | ||||
| 90080-10400 | ||||
| 90105-A0189 | ||||
| 91551-80818 | ||||
| Linked diagrams | ||||
| 1603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
