UCK51L-PSASKA (2007)

Toyota Tundra

Production Mar 2007 - Apr 2009
Engine 2UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0611-0904)2UZFE

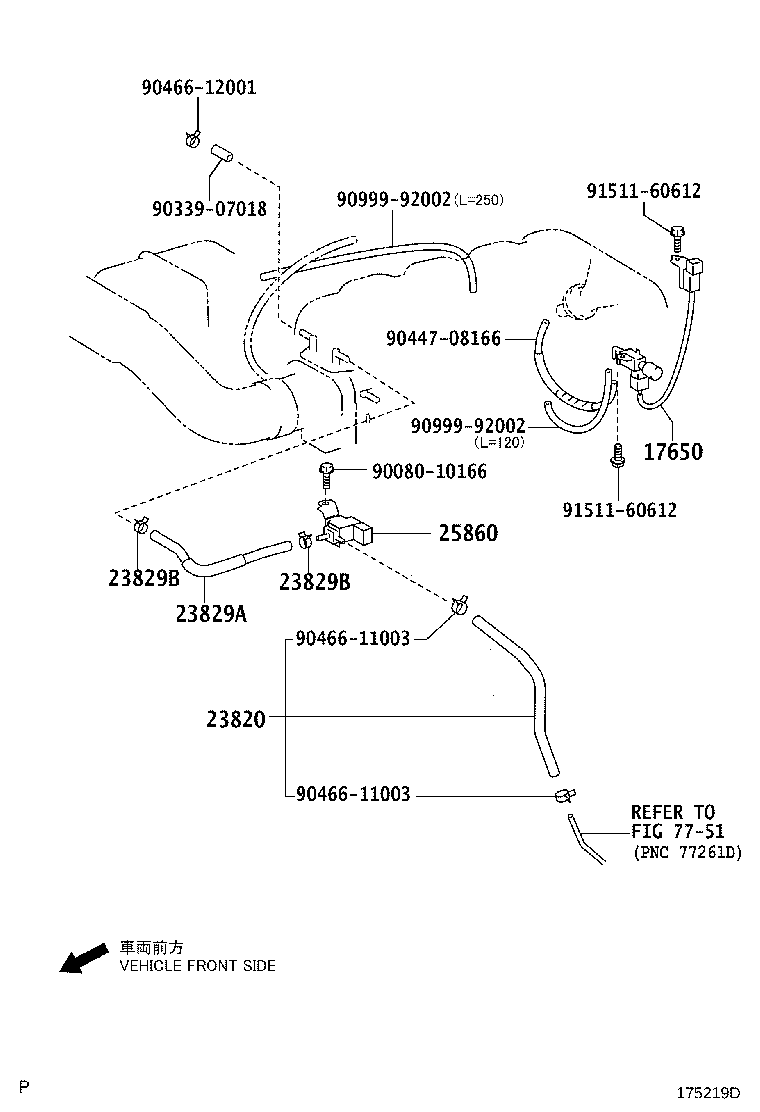

Click highlighted areas on diagram

diagram 17650 23820 23829A 23829B 23829B 25860 7751 9008010166 9033907018 9044708166 9046611003 9046611003 9046612001 9099992002 9099992002 9151160612 9151160612
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50170

2UZFE..UCK5#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0F030

2UZFE..UCK5#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50161

2UZFE..UCK5#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UCK5#

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UCK5#

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31060

2UZFE..UCK5#

 1
Common parts
90080-10166
90339-07018
90447-08166
90466-11003
90466-12001
90999-92002
91511-60612
Linked diagrams
7751
