UCK51L-CRALKA (2006)
Toyota Tundra

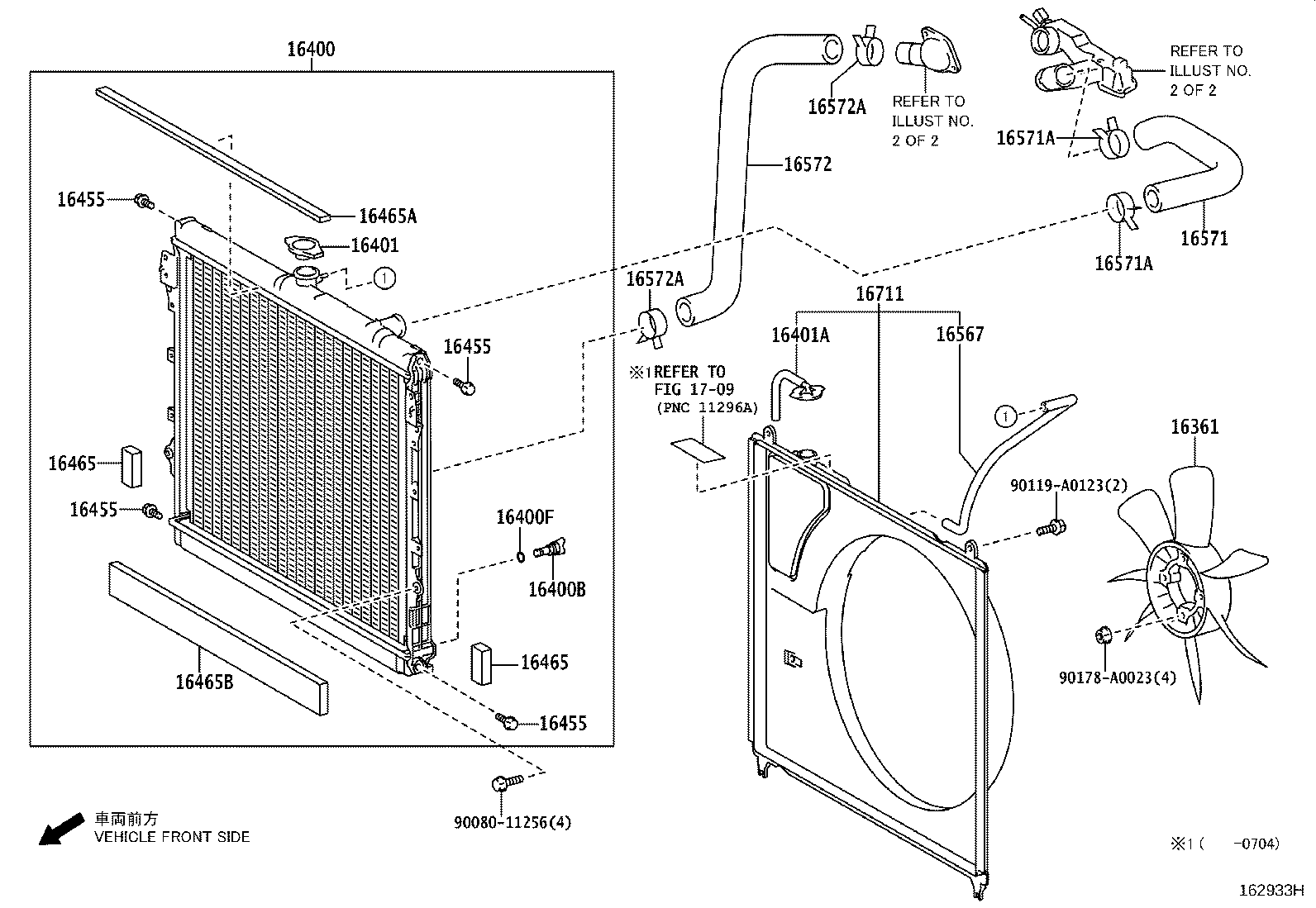

ILLUST NO. 1 OF 2(0611-0904)2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-50110 |
2UZFE..UCK5# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0F060 |
2UZFE..UCK5# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-0P100 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
2UZFE,3UR#..UCK5#,USK5# |
4 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-0F060 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-0F060 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16465A - PACKING, RADIATOR, NO.1 | ||||
| 16465-0P170 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16465B - PACKING, RADIATOR, NO.2 | ||||
| 16465-0S010 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-0P100 |
2UZFE,3UR#..UCK5#,USK5# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0F040 |
2UZFE..UCK5# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2UZFE,3URFE..UCK5#,USK5# |
2 | ||
| 96136-54801 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2UZFE,3URFE..UCK5#,USK5# |
2 | ||
| 96136-54801 |
2UZFE,3UR#..UCK5#,USK5# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0F020 |
2UZFE..UCK5# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
2UZFE..UCK5# |
2 | ||
| 96136-54801 |
2UZFE..UCK5# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
2UZFE..UCK5# |
2 | ||
| 96136-54801 |
2UZFE..UCK5# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0F050 |
2UZFE..UCK5# |
1 | ||
| Common parts | ||||
| 90080-11256 | ||||
| 90119-A0123 | ||||
| 90178-A0023 | ||||
| Linked diagrams | ||||
| 1709 | ||||

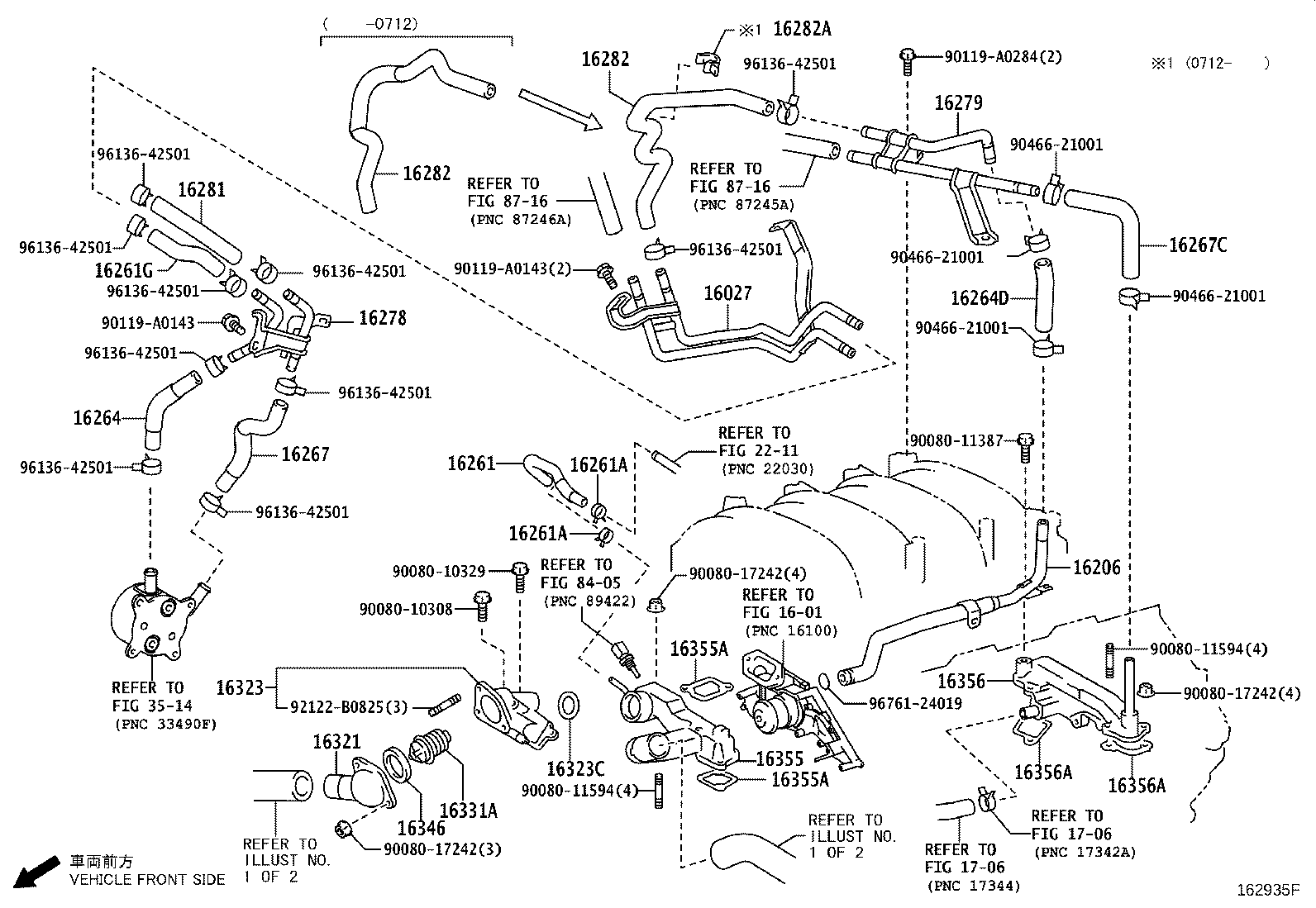

ILLUST NO. 2 OF 2(0611-0904)2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16268-0F010 |
2UZFE..UCK5# |
1 | ||
| 16268-0F010 |
2UZFE..UCK5# |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-50170 |
2UZFE..UCK5# (J) |
1 | ||
| 16206-0F010 |
2UZFE..UCK5# (L) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-50140 |
2UZFE..UCK5# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2UZFE..UCK5# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2UZFE..UCK5# |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0F010 |
2UZFE..UCK5# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0F020 |
2UZFE..UCK5# |
1 | ||
| 16264-0F021 |
2UZFE..UCK5# |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0F010 |
2UZFE..UCK5# |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0F020 |
2UZFE..UCK5# |
1 | ||
| 16267-0F021 |
2UZFE..UCK5# |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-0F010 |
2UZFE..UCK5# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-0F020 |
2UZFE..UCK5# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16278-0F010 |
2UZFE..UCK5# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0F020 |
2UZFE..UCK5# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0F020 |
2UZFE..UCK5# |
1 | ||
| 16282-0F021 |
2UZFE..UCK5# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0F020 |
2UZFE..UCK5# |
1 | ||
| 16282-0F021 |
2UZFE..UCK5# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90929-01440 |
2UZFE..UCK5# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0F010 |
2UZFE..UCK5# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-0F010 |
2UZFE..UCK5# |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
2UZFE..UCK5# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03138 |
2UZFE..UCK5# *WAX 82-95 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-50010 |
2UZFE..UCK5# |
1 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-50110 |
2UZFE..UCK5# (J) |
1 | ||
| 16355-0F020 |
2UZFE..UCK5# (L) |
1 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
2UZFE..UCK5# |
2 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
2UZFE..UCK5# |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-50140 |
2UZFE..UCK5# |
1 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
2UZFE..UCK5# |
2 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
2UZFE..UCK5# |
2 | ||
| Common parts | ||||
| 90080-10308 | ||||
| 90080-10329 | ||||
| 90080-11387 | ||||
| 90080-11594 | ||||
| 90080-17242 | ||||
| 90119-A0143 | ||||
| 90119-A0284 | ||||
| 90466-21001 | ||||
| 92122-B0825 | ||||
| 96136-42501 | ||||
| 96761-24019 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1706 | ||||
| 2211 | ||||
| 3514 | ||||
| 8405 | ||||
| 8716 | ||||
