UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

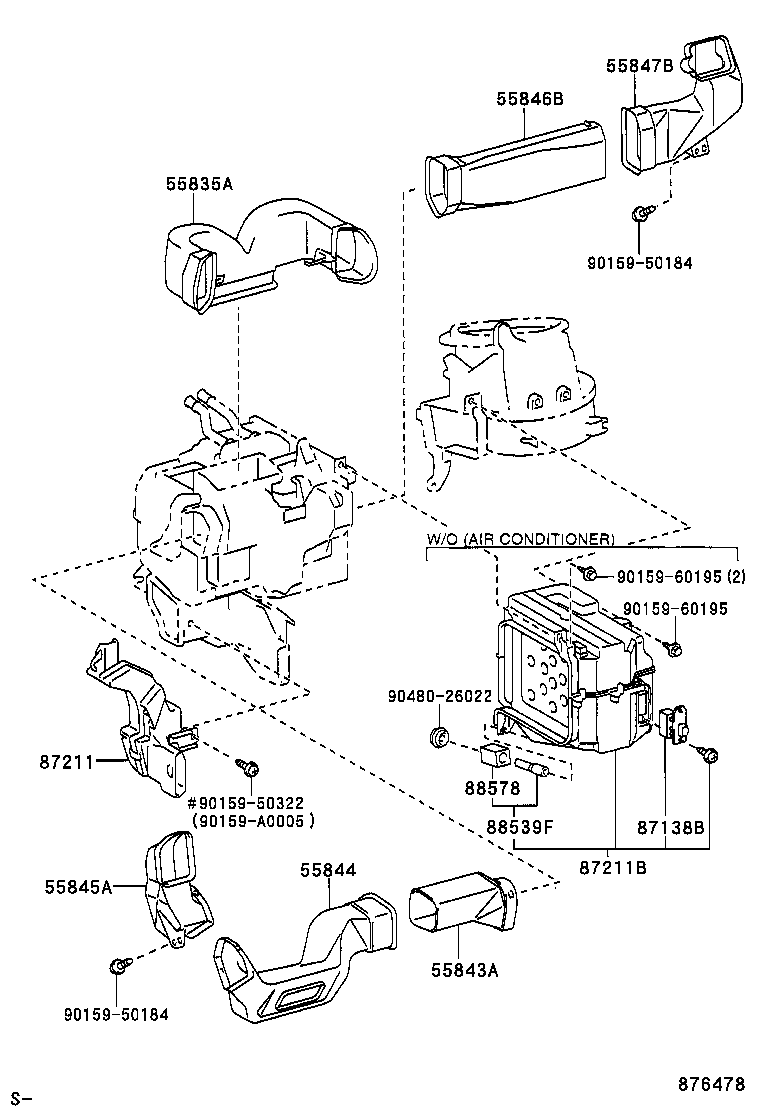

ILLUST NO. 2 OF 4(0310- )UCK31,41

Click highlighted areas on diagram

AIR DUCT---FRONT

diagram 55835A 55843A 55844 55845A 55846B 55847B 87138B 87211 87211B 88539F 88578 9015950184 9015950184 9015950322 9015960195 9015960195 90159A0005 9048026022
Part # Description Qty Price
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0C020

UCK31,41

 1
87211 - DUCT, AIR, NO.1
87211-0C140

UCK31,41

 1
Common parts
90159-50184
90159-50322
90159-60195
90159-A0005
90480-26022

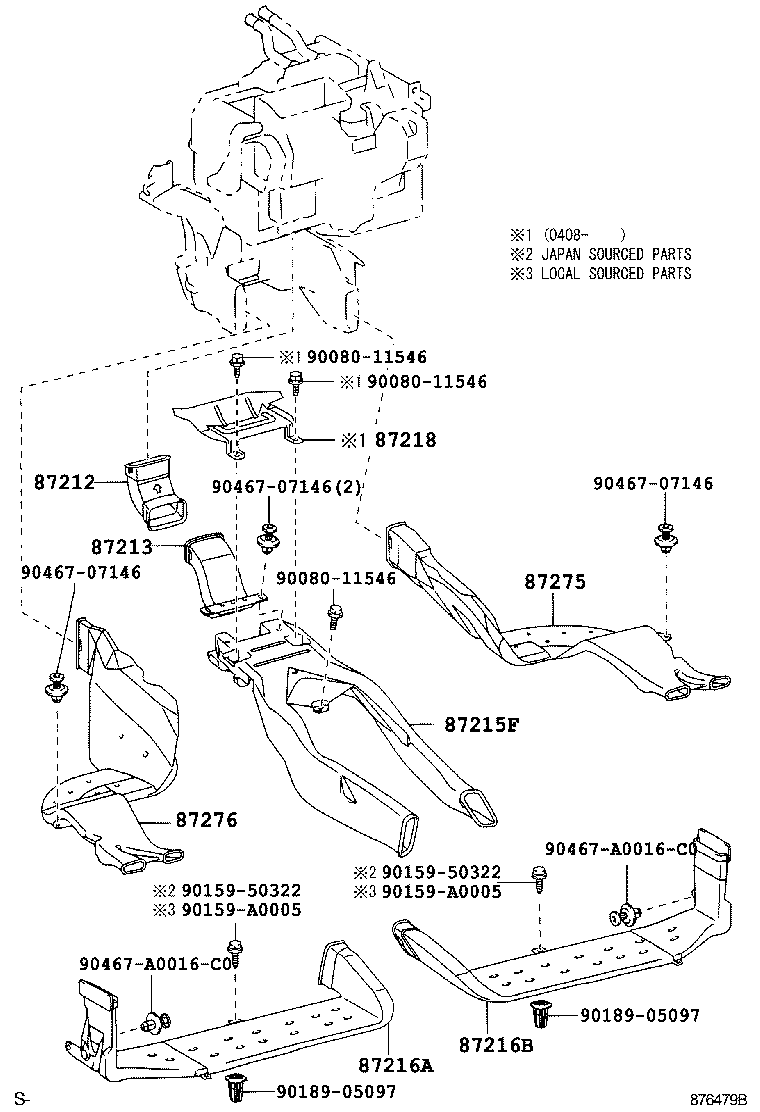

ILLUST NO. 3 OF 4(0310- )UCK31,41

Click highlighted areas on diagram

AIR DUCT---REAR

diagram 87212 87213 87215F 87216A 87216B 87218 87275 87276 9008011546 9008011546 9008011546 9015950322 9015950322 90159A0005 90159A0005 9018905097 9018905097 9046707146 9046707146 9046707146 90467A0016C0 90467A0016C0
Part # Description Qty Price
87212 - DUCT, AIR, REAR NO.1
87212-0C030

UCK31,41

 1
87213 - DUCT, AIR, REAR NO.2
87213-0C030

UCK31,41

 1
87215F - DUCT, AIR, REAR NO.3
87215-0C040

UCK31,41

 1
87216A - DUCT, AIR, REAR NO.5
87217-0C020

UCK31,41

 1
87216B - DUCT, AIR, REAR NO.4
87216-0C040

UCK31,41

 1
87275 - DUCT, FLOOR HEATER AIR, NO.1 RH
87275-0C010

UCK31,41

 1
87276 - DUCT, FLOOR HEATER AIR, NO.1 LH
87276-0C010

UCK31,41

 1
Common parts
90080-11546
90159-50322
90159-A0005
90189-05097
90467-07146
90467-A0016C0

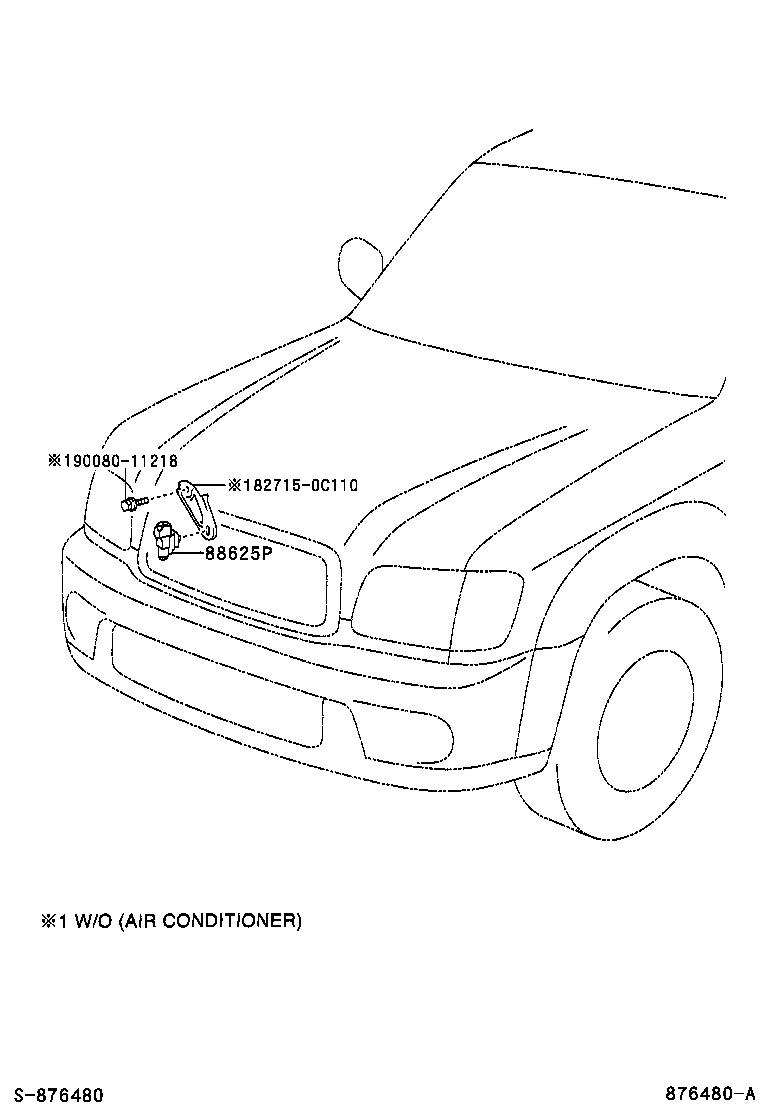

ILLUST NO. 4 OF 4(0310- )UCK31,41

Click highlighted areas on diagram

SENSOR

diagram 827150C110 88625P 9008011218
Part # Description Qty Price
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

UCK31,41

 1
Common parts
82715-0C110
90080-11218
