UCK41L-PRSLKK (2003)
Toyota Tundra

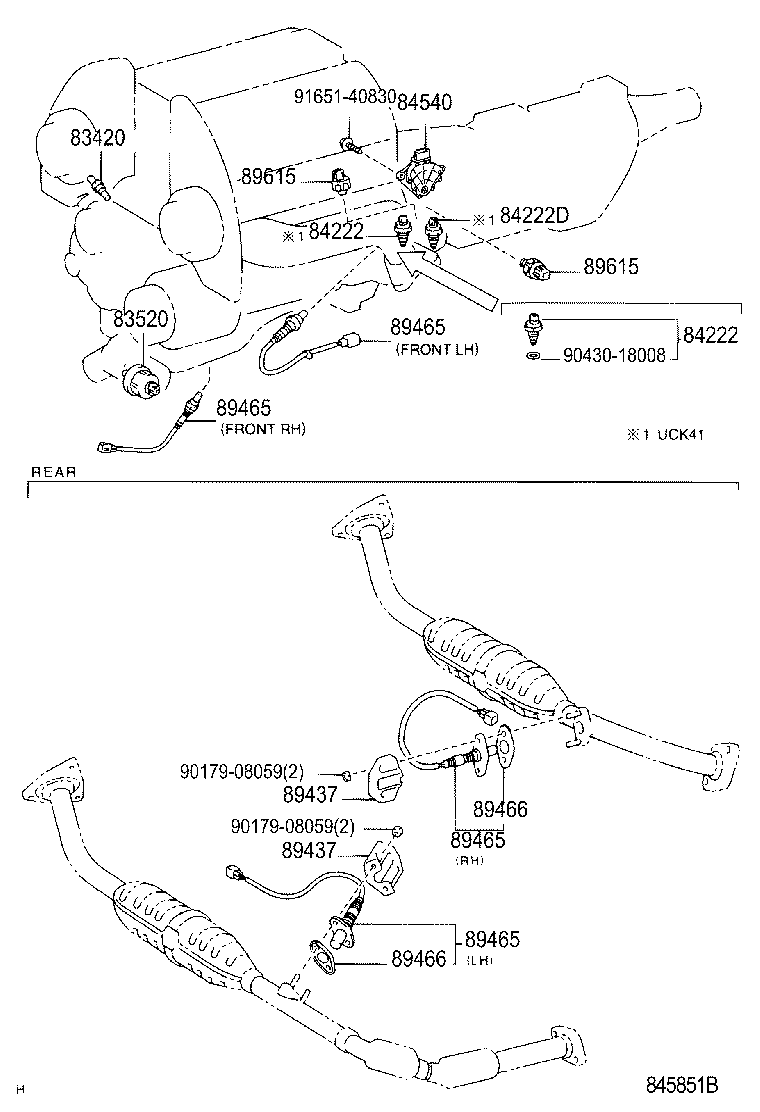

ILLUST NO. 1 OF 8(0310-0408)UCK31,41
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-35121 |
UCK41 |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||

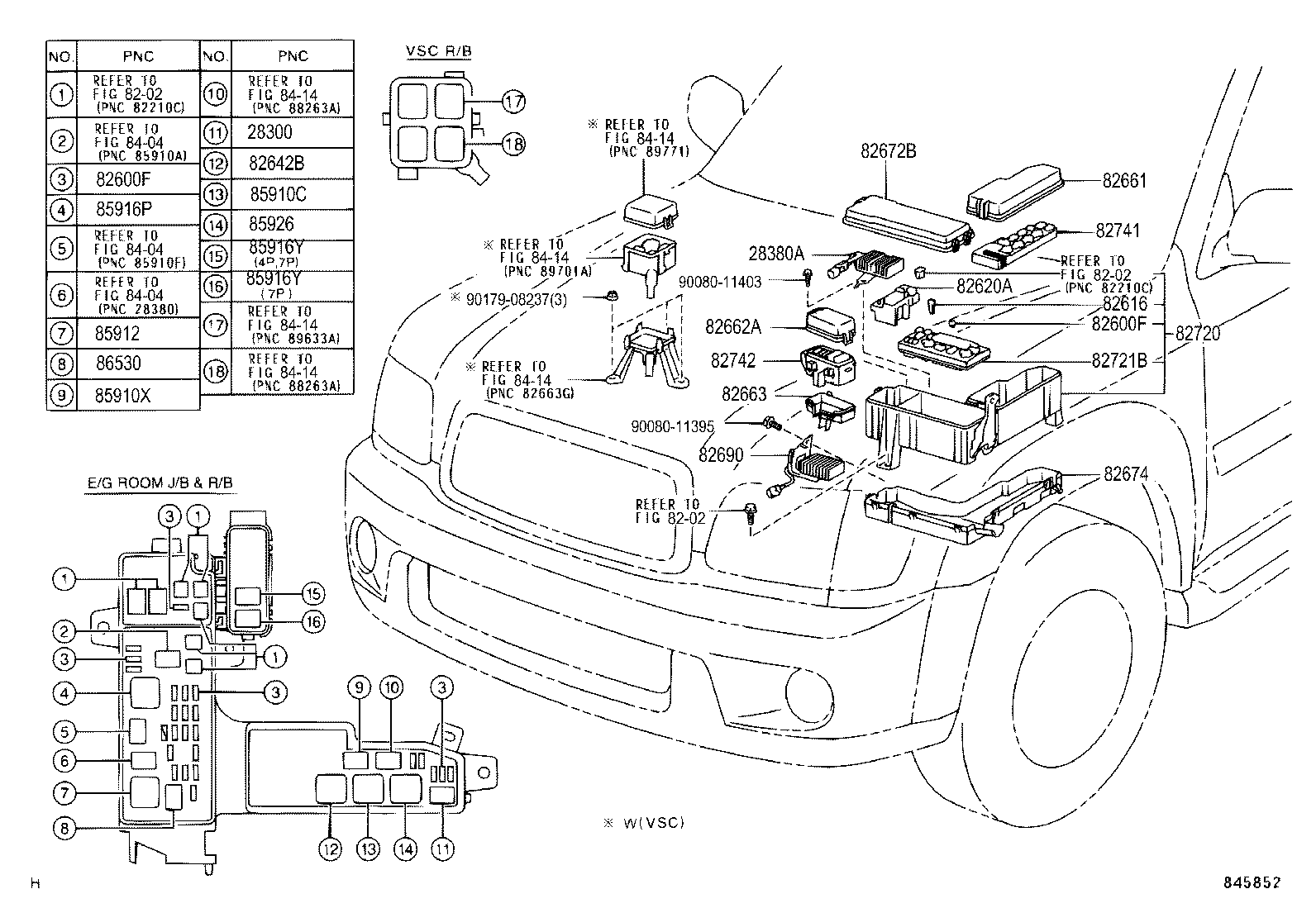

ILLUST NO. 2 OF 8(0310-0408)UCK31,41
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82022 |
UCK31,41 15A,MINI FUSE,BLUE |
8 | ||
| 90080-82033 |
UCK31,41 25A,MINI FUSE |
5 | ||
| 90080-82023 |
UCK31,41 20A,MINI FUSE,YELLOW |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82022 |
UCK31,41 15A,MINI FUSE,BLUE |
8 | ||
| 90080-82033 |
UCK31,41 25A,MINI FUSE |
5 | ||
| 90080-82023 |
UCK31,41 20A,MINI FUSE,YELLOW |
4 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
UCK31,41 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0C010 |
UCK31,41 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0C130 |
UCK31,41 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0C010 |
UCK31,41 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C040 |
UCK31,41 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-0C050 |
UCK31,41 |
1 | ||
| 82672-0C060 |
UCK31,41 W(VSC) |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-0C020 |
UCK31,41 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-0C011 |
UCK31,41 |
1 | ||
| 82721B - BLOCK, ENGINE ROOM JUNCTION | ||||
| 82721-0C010 |
UCK31,41 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C020 |
UCK31,41 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-0C050 |
UCK31,41 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
UCK31,41 |
1 | ||
| 85916Y - RELAY, TOWING TAIL | ||||
| 90084-98031 |
UCK31,41 4P:REFR TO ILLUSTRTION |
1 | ||
| 90084-98031 |
UCK31,41 7P:REFR TO ILLUSTRTION |
2 | ||
| 85916Y - RELAY, TOWING TAIL | ||||
| 90084-98031 |
UCK31,41 4P:REFR TO ILLUSTRTION |
1 | ||
| 90084-98031 |
UCK31,41 7P:REFR TO ILLUSTRTION |
2 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90084-98031 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 90080-11395 | ||||
| 90080-11403 | ||||
| 90179-08237 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

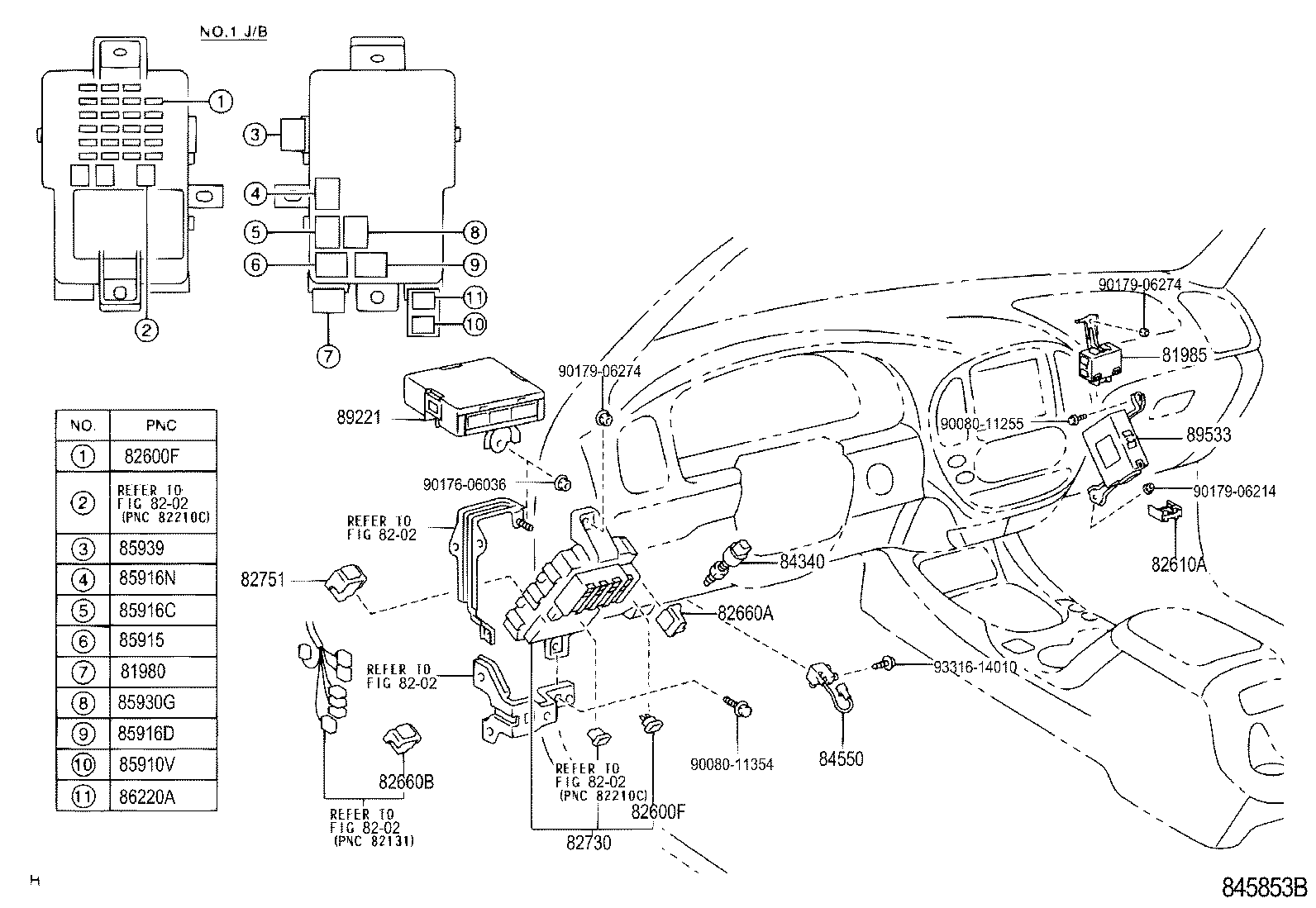

ILLUST NO. 3 OF 8(0310-0408)UCK31,41
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-34020 |
UCK31,41 |
1 | ||
| 81985 - RELAY, TOWING CONVERTER | ||||
| 81985-0C031 |
UCK3#,4#,VCK30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82022 |
UCK31,41 15A,MINI FUSE,BLUE |
8 | ||
| 90080-82033 |
UCK31,41 25A,MINI FUSE |
5 | ||
| 90080-82023 |
UCK31,41 20A,MINI FUSE,YELLOW |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82022 |
UCK31,41 15A,MINI FUSE,BLUE |
8 | ||
| 90080-82033 |
UCK31,41 25A,MINI FUSE |
5 | ||
| 90080-82023 |
UCK31,41 20A,MINI FUSE,YELLOW |
4 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
UCK31,41 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0C031 |
UCK31,41 |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-0C020 |
UCK31,41 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-34010 |
UCK31,41 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-34030 |
UCK31,41 |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90084-98031 |
UCK31,41..LIMD |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90084-98031 |
UCK31,41 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90084-98031 |
UCK31,41 PART NUMBER LABEL=90084-98031 |
1 | ||
| 90987-02012 |
UCK31,41 PART NUMBER LABEL=90987-02012 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90084-98031 |
UCK31,41 PART NUMBER LABEL=90084-98031 |
1 | ||
| 90987-02012 |
UCK31,41 PART NUMBER LABEL=90987-02012 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90084-98031 |
UCK31,41 ACC CUT RELAY |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90084-98031 |
UCK31,41 |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02012 |
UCK31,41 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-0C060 |
UCK31,41 W(DAY TIME RUNNING LIGHT SYSTEM & SECURITY SYSTEM) |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-34050 |
UCK41 |
1 | ||
| Common parts | ||||
| 90080-11255 | ||||
| 90080-11354 | ||||
| 90176-06036 | ||||
| 90179-06214 | ||||
| 90179-06274 | ||||
| 93316-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||

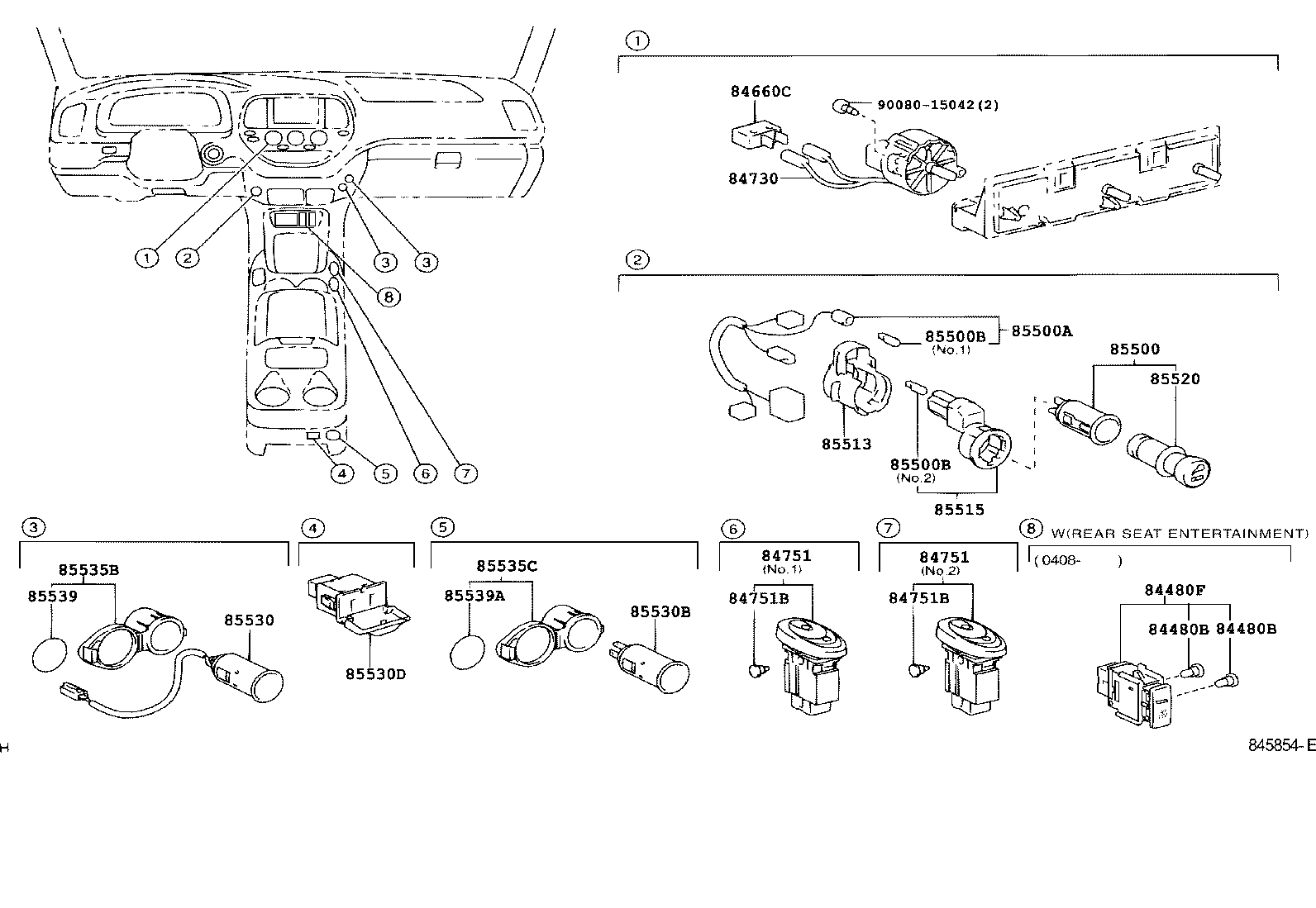

ILLUST NO. 4 OF 8(0310- )UCK31,41
INSTRMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90011-01051 |
UCK31,41 |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90011-01051 |
UCK31,41 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-34010 |
UCK31,41..LIMD NO.1 |
1 | ||
| 84751-34020 |
UCK31,41..LIMD NO.2 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-34010 |
UCK31,41..LIMD NO.1 |
1 | ||
| 84751-34020 |
UCK31,41..LIMD NO.2 |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01039 |
UCK31,41..LIMD 14V0.91W,W(GREEN CAP |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01039 |
UCK31,41..LIMD 14V0.91W,W(GREEN CAP |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-34010 |
UCK31,41 |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-33020 |
UCK31,41 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-34030B0 |
UCK31,41 DK.CHARCOAL,TRIM11 |
1 | ||
| 85530-34030E0 |
UCK31,41 OAK,TRIM4# |
1 | ||
| 85530-34030B1 |
UCK31,41 DK.GRAY,TRIM12 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0C020B0 |
UCK31,41 DK.CHARCOAL,TRIM11 |
2 | ||
| 85535-0C020B1 |
UCK31,41 DK.GRAY,TRIM12 |
2 | ||
| 85535-0C020E0 |
UCK31,41 OAK,TRIM4# |
2 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-0C020B1 |
UCK31,41 DK.GRAY,TRIM12 |
1 | ||
| 85535-0C020E0 |
UCK31,41 OAK,TRIM4# |
1 | ||
| 85535-0C020B0 |
UCK31,41 DK.CHARCOAL,TRIM11 |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 90080-15042 | ||||
ILLUST NO. 5 OF 8(0310- )GSK30,UCK3#,4#
INSTRMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-0C020 |
UCK31,41 |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90011-01051 |
UCK31,41 |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-0C020 |
UCK31,41 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84807-0C030B0 |
UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.CHARCOAL,TRIM11 |
1 | ||
| 84807-0C020B0 |
UCK31,41 DK.CHARCOAL,TRIM11 |
1 | ||
| 84807-0C020B1 |
UCK31,41 DK.GRAY,TRIM12 |
1 | ||
| 84807-0C020E0 |
UCK31,41 OAK,TRIM4# |
1 | ||
| 84807-0C030B1 |
UCK31,41 W(REAR SEAT ENTERTAINMENT),DK.GRAY,TRIM12 |
1 | ||
| 84807-0C030E0 |
UCK31,41 W(REAR SEAT ENTERTAINMENT),OAK,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8435 | ||||
ILLUST NO. 8 OF 8(0310-0408)UCK31,41
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-0C020 |
UCK31,41 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0C020 |
UCK31,41 |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 84170-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 84170-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
UCK31,41 |
4 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
UCK31,41 |
4 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
UCK31,41 |
4 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
UCK31,41 |
4 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-34010 |
UCK31,41 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-0C040 |
UCK31,41 NO.1 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-AC030 |
UCK31,41 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-AC030 |
UCK31,41 |
2 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-34010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 84860-34010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 84860-34010E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-34010 |
UCK31,41 |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-34020 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 90080-11546 | ||||
| 90080-16098 | ||||
| 90109-06296 | ||||
| 93319-14008 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||

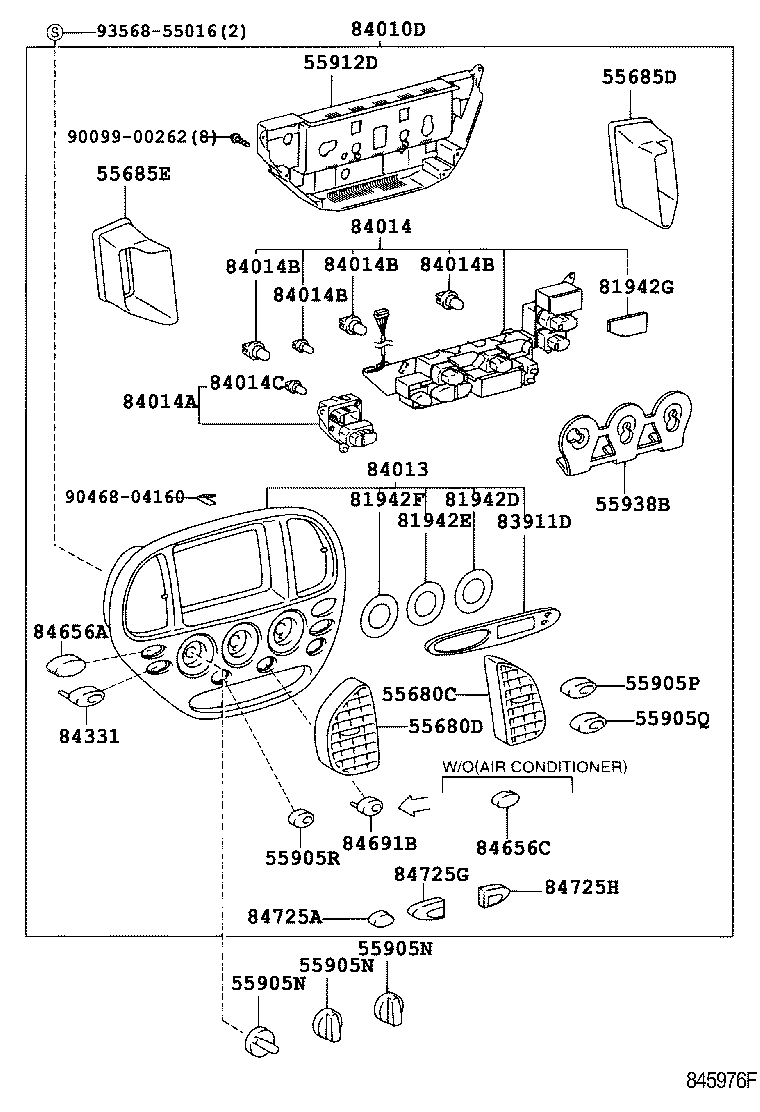

ILLUST NO. 6 OF 8(0310-0408)UCK31,41
INTEGRATION PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905P - KNOB SUB-ASSY, CONTROL, NO.2 | ||||
| 55905-0C050 |
UCK31,41 |
1 | ||
| 55905Q - KNOB SUB-ASSY, CONTROL, NO.3 | ||||
| 55905-0C060 |
UCK31,41 |
1 | ||
| 55912D - HOUSING, HEATER CONTROL | ||||
| 55912-0C050 |
UCK31,41 |
1 | ||
| 81942G - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-0C110 |
UCK31,41 |
1 | ||
| 83911D - ORNAMENT, CLOCK | ||||
| 83911-0C060 |
UCK41 W(VSC) |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0C420 |
UCK41..LIMD W(AIR CONDITIONER & WOODEN PANEL) |
1 | ||
| 84010-0C460 |
UCK41 W(AIR CONDITIONER & LSD) |
1 | ||
| 84010-0C400 |
UCK41 W(AIR CONDITIONER) |
1 | ||
| 84010-0C480 |
UCK41..LIMD W(AIR CONDITIONER & LSD & WOODEN PANEL) |
1 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-0C310 |
UCK41..LIMD WOODEN PANEL |
1 | ||
| 84013-0C370 |
UCK41 |
1 | ||
| 84013-0C330 |
UCK41 W(VSC) |
1 | ||
| 84013-0C350 |
UCK41..LIMD WOODEN PANEL,W(VSC) |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-0C370 |
UCK41 |
1 | ||
| 84014-0C340 |
UCK41 W(VSC) |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-0C350 |
UCK31,41 |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03002 |
UCK31,41 14V 2.0W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03002 |
UCK31,41 14V 2.0W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03002 |
UCK31,41 14V 2.0W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03002 |
UCK31,41 14V 2.0W |
2 | ||
| 84014C - BULB, PRINTED WIRE INTEGRATION BOARD, NO.2 | ||||
| 90011-03011 |
UCK31,41 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-0C040 |
UCK31,41 NO.1 |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90468-04160 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
