UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

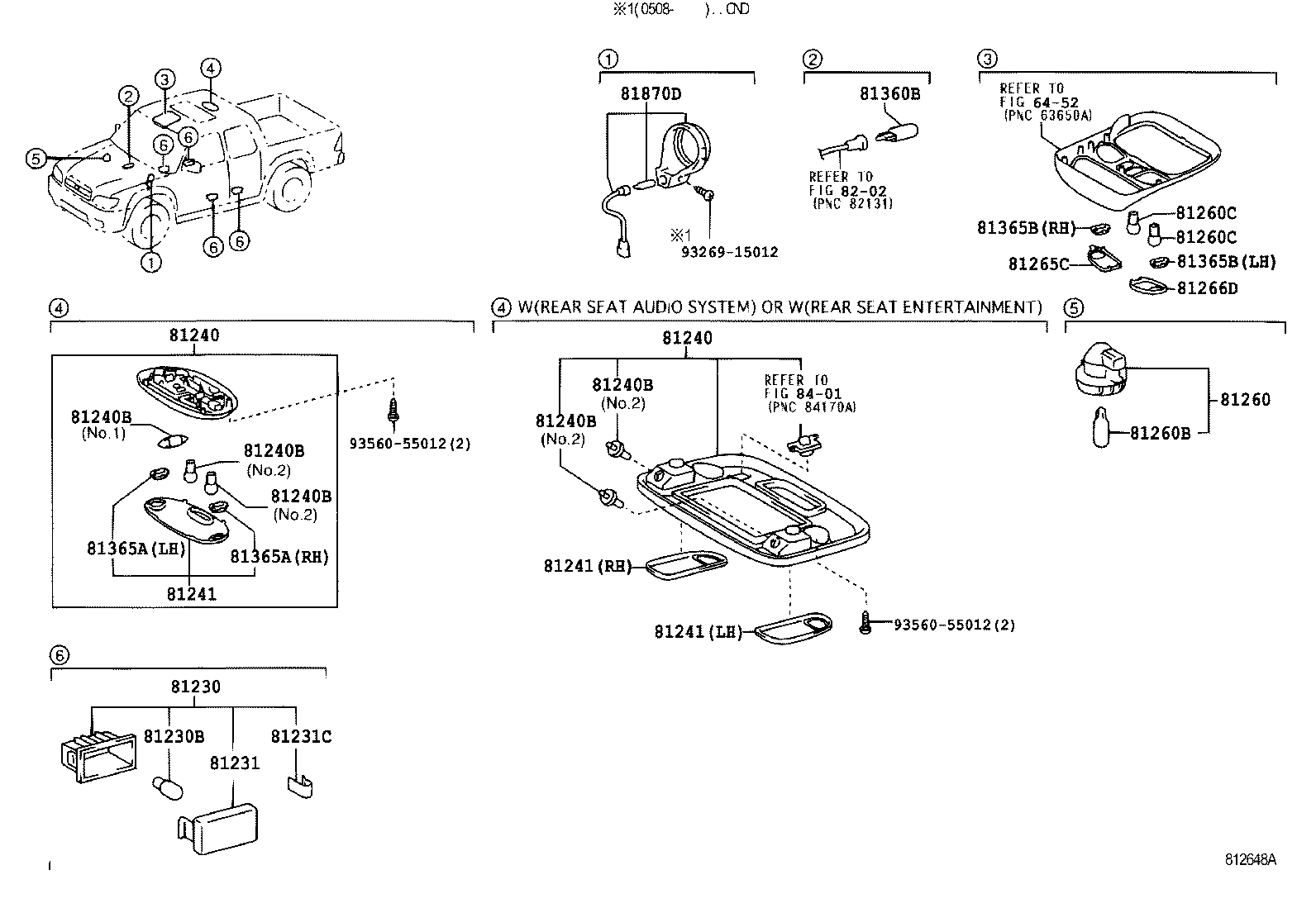

Click highlighted areas on diagram

diagram 6452 81230 81230B 81231 81231C 81240 81240 81240B 81240B 81240B 81240B 81240B 81241 81241 81241 81260 81260B 81260C 81260C 81265C 81266D 81360B 81365A 81365A 81365B 81365B 81870D 8202 8401 9326915012 9356055012 9356055012
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-0C020

UCK31,41

 4
81230B - BULB(FOR COURTESY LAMP)
90981-11020

UCK31,41

12V 3.8W

 4
81231 - LENS, COURTESY LAMP
81231-0C010

UCK31,41

 4
81231C - CLIP, COURTESY LAMP
48141-AC010

UCK31,41

 4
81240 - LAMP ASSY, ROOM, NO.1
81240-0C040B1

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.GRAY,TRIM12

 1
81240-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
81240-0C040E0

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.OAK,TRIM4#

 1
81240-0C040B0

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.CHARCOAL,TRIM11

 1
81240-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
81240-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-0C040B1

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.GRAY,TRIM12

 1
81240-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
81240-0C040E0

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.OAK,TRIM4#

 1
81240-0C040B0

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.CHARCOAL,TRIM11

 1
81240-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
81240-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12050

UCK31,41

12V 5W,NO.2

 2
90080-81103

UCK31,41

12V 8W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12050

UCK31,41

12V 5W,NO.2

 2
90080-81103

UCK31,41

12V 8W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12050

UCK31,41

12V 5W,NO.2

 2
90080-81103

UCK31,41

12V 8W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12050

UCK31,41

12V 5W,NO.2

 2
90080-81103

UCK31,41

12V 8W,NO.1

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12050

UCK31,41

12V 5W,NO.2

 2
90080-81103

UCK31,41

12V 8W,NO.1

 1
81241 - LENS, ROOM LAMP, NO.1
81241-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
81241-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
81241-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
81241-0C040

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),RH

 1
81241-0C041

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),LH

 1
81241 - LENS, ROOM LAMP, NO.1
81241-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
81241-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
81241-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
81241-0C040

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),RH

 1
81241-0C041

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),LH

 1
81241 - LENS, ROOM LAMP, NO.1
81241-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
81241-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
81241-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
81241-0C040

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),RH

 1
81241-0C041

UCK31,41

W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),LH

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

UCK31,41

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

UCK31,41

12V 5W

 2
81265C - LENS, MAP LAMP, NO.1
81265-0C010

UCK31,41

 1
81266D - LENS, MAP LAMP, NO.2
81266-0C010

UCK31,41

 1
81365A - KNOB, ROOM LAMP SWITCH
81365-0C010B0

UCK31,41

MD.CHARCOAL,TRIM11,RH

 1
81365-0C020B0

UCK31,41

MD.CHARCOAL,TRIM11,LH

 1
81365-0C020B1

UCK31,41

MD.GRAY,TRIM12,LH

 1
81365-0C010B1

UCK31,41

MD.GRAY,TRIM12,RH

 1
81365-0C020E0

UCK31,41

MD.OAK,TRIM4#,LH

 1
81365-0C010E0

UCK31,41

MD.OAK,TRIM4#,RH

 1
81365A - KNOB, ROOM LAMP SWITCH
81365-0C010B0

UCK31,41

MD.CHARCOAL,TRIM11,RH

 1
81365-0C020B0

UCK31,41

MD.CHARCOAL,TRIM11,LH

 1
81365-0C020B1

UCK31,41

MD.GRAY,TRIM12,LH

 1
81365-0C010B1

UCK31,41

MD.GRAY,TRIM12,RH

 1
81365-0C020E0

UCK31,41

MD.OAK,TRIM4#,LH

 1
81365-0C010E0

UCK31,41

MD.OAK,TRIM4#,RH

 1
81365B - KNOB, MAP LAMP SWITCH
81365-0C020B0

UCK31,41

MD.CHARCOAL,TRIM11,LH

 1
81365-0C020B1

UCK31,41

MD.GRAY,TRIM12,LH

 1
81365-0C010E0

UCK31,41

MD.OAK,TRIM4#,RH

 1
81365-0C020E0

UCK31,41

MD.OAK,TRIM4#,LH

 1
81365-0C010B0

UCK31,41

MD.CHARCOAL,TRIM11,RH

 1
81365-0C010B1

UCK31,41

MD.GRAY,TRIM12,RH

 1
81365B - KNOB, MAP LAMP SWITCH
81365-0C020B0

UCK31,41

MD.CHARCOAL,TRIM11,LH

 1
81365-0C020B1

UCK31,41

MD.GRAY,TRIM12,LH

 1
81365-0C010E0

UCK31,41

MD.OAK,TRIM4#,RH

 1
81365-0C020E0

UCK31,41

MD.OAK,TRIM4#,LH

 1
81365-0C010B0

UCK31,41

MD.CHARCOAL,TRIM11,RH

 1
81365-0C010B1

UCK31,41

MD.GRAY,TRIM12,RH

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-34030

UCK31,41

 1
Common parts
93269-15012
93560-55012
Linked diagrams
6452
8202
8401
