UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

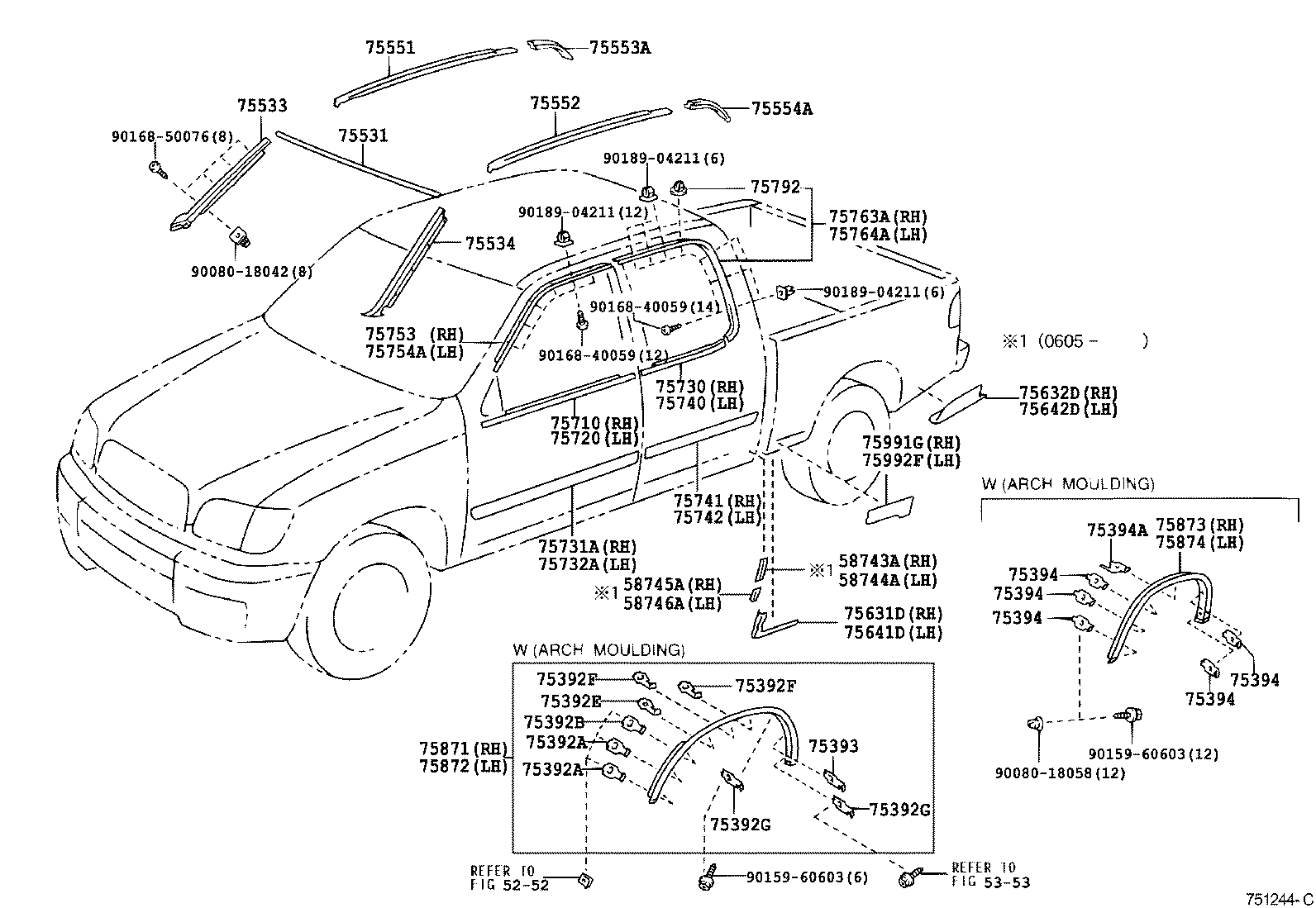

Click highlighted areas on diagram

diagram 5252 5353 58743A 58744A 58745A 58746A 75392A 75392A 75392B 75392E 75392F 75392F 75392G 75392G 75393 75394 75394 75394 75394 75394 75394A 75531 75533 75534 75551 75552 75553A 75554A 75631D 75632D 75641D 75642D 75710 75720 75730 75731A 75732A 75740 75741 75742 75753 75754A 75763A 75764A 75792 75871 75872 75873 75874 75991G 75992F 9008018042 9008018058 9015960603 9015960603 9016840059 9016840059 9016850076 9018904211 9018904211 9018904211
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-0C020

UCK31,41

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-0C030

UCK31,41

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-0C030

UCK31,41

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-0C040

UCK31,41

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-0C040

UCK31,41

 1
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-0C010

UCK31,41

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-0C010

UCK31,41

 1
75631D - MOULDING, SIDE PANEL, LOWER NO.1 RH
75631-0C030

UCK31,41

 1
75632D - MOULDING, SIDE PANEL, LOWER NO.2 RH
75632-0C020

UCK31,41..CND

 1
75641D - MOULDING, SIDE PANEL, LOWER NO.1 LH
75641-0C030

UCK31,41

 1
75642D - MOULDING, SIDE PANEL, LOWER NO.2 LH
75642-0C030

UCK31,41..CND

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0C010

UCK31,41

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0C010

UCK31,41

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0C020

UCK31,41

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-0C040D1

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75731-0C040C0

UCK31,41..LIMD

BLACK,202

 1
75731-0C040B2

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75731-0C040A0

UCK31,41..LIMD

WHITE,056

 1
75731-0C040G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-0C040C0

UCK31,41..LIMD

BLACK,202

 1
75732-0C040B2

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75732-0C040A0

UCK31,41..LIMD

WHITE,056

 1
75732-0C040G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75732-0C040D1

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0C020

UCK31,41

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-0C070D0

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75741-0C070A0

UCK31,41..LIMD

WHITE,056

 1
75741-0C070C0

UCK31,41..LIMD

BLACK,202

 1
75741-0C070B0

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75741-0C070G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-0C070A0

UCK31,41..LIMD

WHITE,056

 1
75742-0C070C0

UCK31,41..LIMD

BLACK,202

 1
75742-0C070B0

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75742-0C070G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75742-0C070D0

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75753-0C020

UCK31,41

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75754-0C020

UCK31,41

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-0C020

UCK31,41

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-0C020

UCK31,41

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-0C901

UCK31,41

UNPAINTED

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-0C901

UCK31,41

UNPAINTED

 1
75991G - STRIPE, QUARTER, FRONT RH
76925-0C050

UCK31,41..CND

W(FENDER WHEEL OPENING MOULDING)

 1
75992F - STRIPE, QUARTER, FRONT LH
76926-0C050

UCK31,41..CND

W(FENDER WHEEL OPENING MOULDING)

 1
Common parts
90080-18042
90080-18058
90159-60603
90168-40059
90168-50076
90189-04211
Linked diagrams
5252
5353

(0310- )UCK31,41

Click highlighted areas on diagram

W(FENDER WHEEL OPENING MOULDING)

diagram 58741G 58742G 58743A 58744A 58745A 58746A 61783F 75395C 75395C 75395G 75395G 75531 75533 75534 75551 75552 75553A 75554A 75601A 75602A 75625C 75631D 75632D 75641D 75642D 75710 75720 75730 75731A 75732A 75740 75741 75742 75753 75754A 75763A 75764A 75792 75873 75874 75991G 75992F 9008018042 9015960603 9015960603 9016840059 9016840059 9016850076 9018904211 9018904211 9018904211 9018906214
Part # Description Qty Price
58741G - PROTECTOR, REAR WHEEL EXTENSION, RH
58741-0C040

UCK31,41

 1
58742G - PROTECTOR, REAR WHEEL EXTENSION, LH
58742-0C050

UCK31,41

 1
61783F - PAD, REAR WHEEL OPENING EXTENSION NO.1
61783-0C030B0

UCK31,41..LIMD

GRAY,056

 2
61783-0C030C0

UCK31,41..LIMD

BLACK,1E3 ,202 ,3Q3 ,6Q7

 2
75395C - CLIP, OUTSIDE MOULDING, NO.1
90904-67036

UCK31,41

 6
75395C - CLIP, OUTSIDE MOULDING, NO.1
90904-67036

UCK31,41

 6
75395G - CLIP, OUTSIDE MOULDING, NO.1
90904-67037

UCK31,41

 24
75395G - CLIP, OUTSIDE MOULDING, NO.1
90904-67037

UCK31,41

 24
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-0C020

UCK31,41

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-0C030

UCK31,41

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-0C030

UCK31,41

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-0C040

UCK31,41

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-0C040

UCK31,41

 1
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-0C010

UCK31,41

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-0C010

UCK31,41

 1
75601A - MOULDING SUB-ASSY, FRONT FENDER, RH
75611-0C900

UCK31,41

 1
75602A - MOULDING SUB-ASSY, FRONT FENDER, LH
75612-0C900

UCK31,41

 1
75625C - PAD, FRONT FENDER OUTSIDE MOULDING, UPPER
75625-34010B0

UCK31,41..LIMD

GRAY,056

 2
75625-0C010C0

UCK31,41

BLACK,1E3 ,202 ,3Q3 ,4Q2 ,6Q7 ,8P9 ,8Q0

 2
75625-0C010B0

UCK31,41

GRAY,056 ,1D6

 2
75625-34010C0

UCK31,41..LIMD

BLACK,1E3 ,202 ,3Q3 ,6Q7

 2
75631D - MOULDING, SIDE PANEL, LOWER NO.1 RH
75631-0C030

UCK31,41

 1
75632D - MOULDING, SIDE PANEL, LOWER NO.2 RH
75632-0C020

UCK31,41..CND

 1
75641D - MOULDING, SIDE PANEL, LOWER NO.1 LH
75641-0C030

UCK31,41

 1
75642D - MOULDING, SIDE PANEL, LOWER NO.2 LH
75642-0C030

UCK31,41..CND

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0C010

UCK31,41

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0C010

UCK31,41

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0C020

UCK31,41

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-0C040D1

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75731-0C040C0

UCK31,41..LIMD

BLACK,202

 1
75731-0C040B2

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75731-0C040A0

UCK31,41..LIMD

WHITE,056

 1
75731-0C040G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-0C040C0

UCK31,41..LIMD

BLACK,202

 1
75732-0C040B2

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75732-0C040A0

UCK31,41..LIMD

WHITE,056

 1
75732-0C040G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75732-0C040D1

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0C020

UCK31,41

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-0C070D0

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75741-0C070A0

UCK31,41..LIMD

WHITE,056

 1
75741-0C070C0

UCK31,41..LIMD

BLACK,202

 1
75741-0C070B0

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75741-0C070G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-0C070A0

UCK31,41..LIMD

WHITE,056

 1
75742-0C070C0

UCK31,41..LIMD

BLACK,202

 1
75742-0C070B0

UCK31,41..LIMD

GRAY M.M.,1E3

 1
75742-0C070G0

UCK31,41..LIMD

DK.GREEN MC.,6Q7

 1
75742-0C070D0

UCK31,41..LIMD

DK. RED M.M.,3Q3

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75753-0C020

UCK31,41

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75754-0C020

UCK31,41

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-0C020

UCK31,41

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-0C020

UCK31,41

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-0C901

UCK31,41

UNPAINTED

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-0C901

UCK31,41

UNPAINTED

 1
75991G - STRIPE, QUARTER, FRONT RH
76925-0C050

UCK31,41..CND

W(FENDER WHEEL OPENING MOULDING)

 1
75992F - STRIPE, QUARTER, FRONT LH
76926-0C050

UCK31,41..CND

W(FENDER WHEEL OPENING MOULDING)

 1
Common parts
90080-18042
90159-60603
90168-40059
90168-50076
90189-04211
90189-06214
