UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

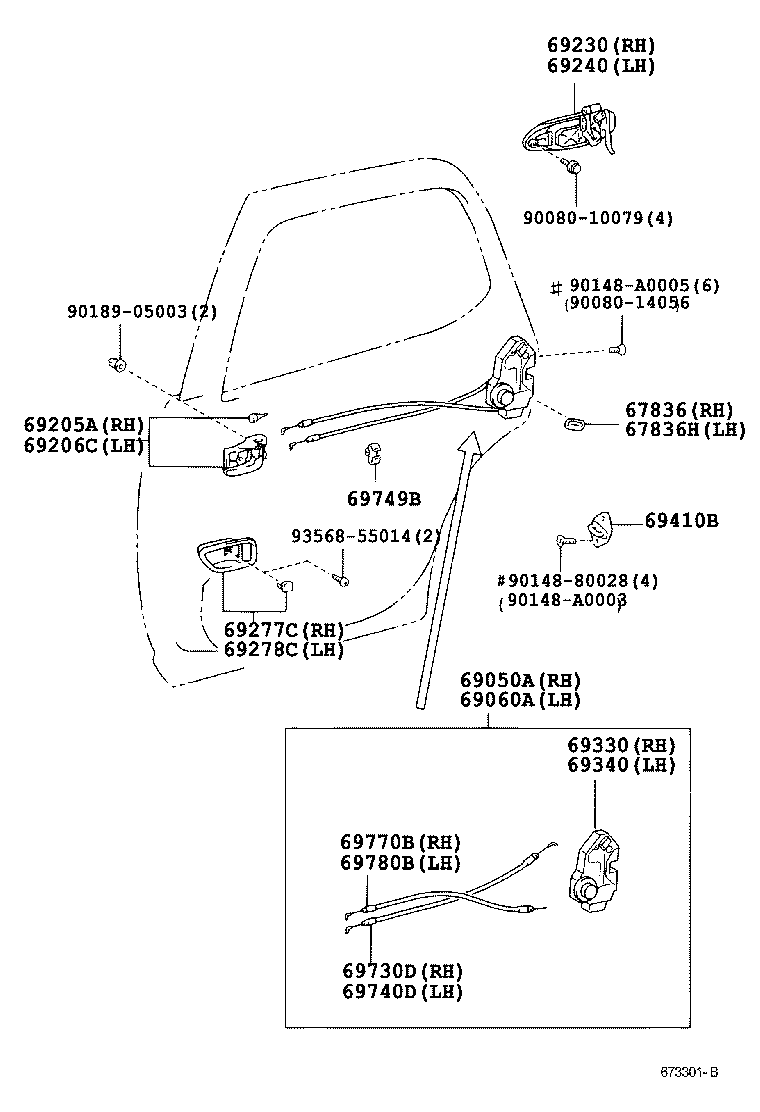

Click highlighted areas on diagram

diagram 67836 67836H 69050A 69060A 69205A 69206C 69230 69240 69277C 69278C 69330 69340 69410B 69730D 69740D 69749B 69770B 69780B 9008010079 9008014056 9014880028 90148A0003 90148A0005 9018905003 9356855014
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

UCK31,41

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

UCK31,41

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-0C020

UCK31,41

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-0C020

UCK31,41

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
69205-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
69205-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
69206-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
69206-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-34020A0

UCK31,41

WHITE,056

 1
69230-34020B2

UCK31,41

GRAY M.M.,1E3

 1
69230-34020G0

UCK31,41

DK.GREEN MC.,6Q7

 1
69230-34020C0

UCK31,41

BLACK,202

 1
69230-34020D1

UCK31,41

DK. RED M.M.,3Q3

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-34020A0

UCK31,41

WHITE,056

 1
69240-34020C0

UCK31,41

BLACK,202

 1
69240-34020B2

UCK31,41

GRAY M.M.,1E3

 1
69240-34020D1

UCK31,41

DK. RED M.M.,3Q3

 1
69240-34020G0

UCK31,41

DK.GREEN MC.,6Q7

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-AC010B1

UCK31,41

MD.CHARCOAL,TRIM11

 1
69277-AC010B2

UCK31,41

MD.GRAY,TRIM12

 1
69277-AC010E1

UCK31,41

MD.OAK,TRIM4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-AC010B1

UCK31,41

MD.CHARCOAL,TRIM11

 1
69278-AC010E1

UCK31,41

MD.OAK,TRIM4#

 1
69278-AC010B2

UCK31,41

MD.GRAY,TRIM12

 1
69330 - LOCK ASSY, REAR DOOR, RH
69305-0C020

UCK31,41

 1
69340 - LOCK ASSY, REAR DOOR, LH
69306-0C020

UCK31,41

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0C020

UCK31,41

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0C020

UCK31,41

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0C020

UCK31,41

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

UCK31,41

 2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0C030

UCK31,41

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-0C030

UCK31,41

 1
Common parts
90080-10079
90080-14056
90148-80028
90148-A0003
90148-A0005
90189-05003
93568-55014
