UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

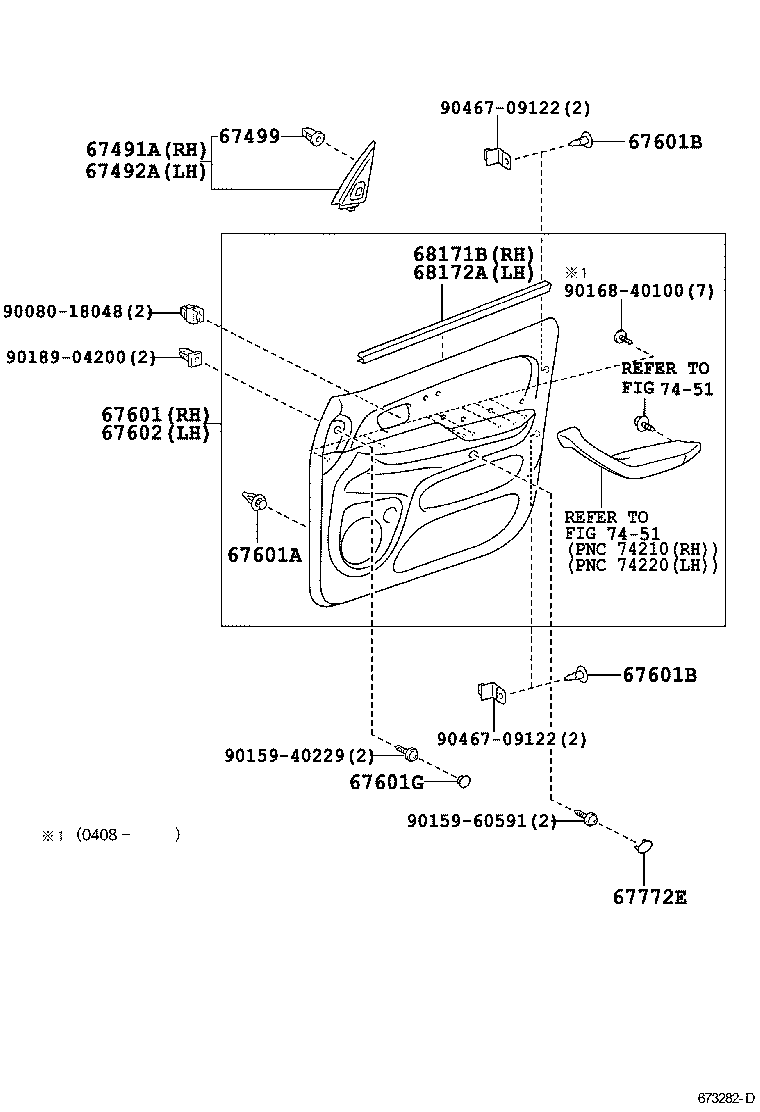

ILLUST NO. 2 OF 2(0310- )UCK31,41

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67492A 67499 67601 67601A 67601B 67601B 67601G 67602 67772E 68171B 68172A 7451 7451 9008018048 9015940229 9015960591 9016840100 9018904200 9046709122 9046709122
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-0C010

UCK31,41

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-0C010

UCK31,41

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-06010

UCK31,41

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-0C140E3

UCK31,41..LIMD

LEATHER,MED. OAK,TRIM4#

 1
67610-0C160E2

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. OAK,TRIM4#

 1
67610-0C160B4

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. CHARCOAL,TRIM11

 1
67610-0C160B5

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),MEDIUM GRAY,TRIM12

 1
67610-0C141E2

UCK31,41..LIMD

LEATHER,MED.OAK,TRIM4#

 1
67610-0C161B0

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),DK. CHARCOAL,TRIM11

 1
67610-0C161E0

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),OAK,TRIM4#

 1
67610-0C161B1

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),GRAY,TRIM12

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-09203

UCK31,41

 16
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066B8

UCK31,41

MD.CHARCOAL,TRIM11,UPPER

 4
90467-07066P1

UCK31,41

DK.CHARCOAL,TRIM11,LOWER

 4
90467-07066E0

UCK31,41

OAK,TRIM4#

 4
90467-07066P6

UCK31,41

DK.GRAY,TRIM12

 4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066B8

UCK31,41

MD.CHARCOAL,TRIM11,UPPER

 4
90467-07066P1

UCK31,41

DK.CHARCOAL,TRIM11,LOWER

 4
90467-07066E0

UCK31,41

OAK,TRIM4#

 4
90467-07066P6

UCK31,41

DK.GRAY,TRIM12

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01746B6

UCK31,41

DK.CHARCOAL,TRIM11

 2
90950-01746B7

UCK31,41

DK.GRAY,TRIM12

 2
90950-01746E0

UCK31,41

OAK,TRIM4#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-0C160B5

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),MEDIUM GRAY,TRIM12

 1
67620-0C140E3

UCK31,41..LIMD

LEATHER,MED. OAK,TRIM4#

 1
67620-0C160E2

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. OAK,TRIM4#

 1
67620-0C160B4

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. CHARCOAL,TRIM11

 1
67620-0C141E2

UCK31,41..LIMD

LEATHER,MED. OAK,TRIM4#

 1
67620-0C161B0

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),DK. CHARCOAL,TRIM11

 1
67620-0C161E0

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),OAK,TRIM4#

 1
67620-0C161B1

UCK31,41

W(AM/FM CASSETTE CD 8SPEAKER JBL),GRAY,TRIM12

 1
67772E - CAP, FRONT DOOR TRIM RETAINER
67772-0C130B2

UCK31,41

MD.GRAY,TRIM12,LH

 1
67772-0C130B0

UCK31,41

MD.CHARCOAL,TRIM11,LH

 1
67772-0C120E0

UCK31,41

MD.OAK,TRIM4#,RH

 1
67772-0C120B2

UCK31,41

MD.GRAY,TRIM12,RH

 1
67772-0C130E0

UCK31,41

MD.OAK,TRIM4#,LH

 1
67772-0C120B0

UCK31,41

MD.CHARCOAL,TRIM11,RH

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-0C020

UCK31,41

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-0C020

UCK31,41

 1
Common parts
90080-18048
90159-40229
90159-60591
90168-40100
90189-04200
90467-09122
Linked diagrams
7451

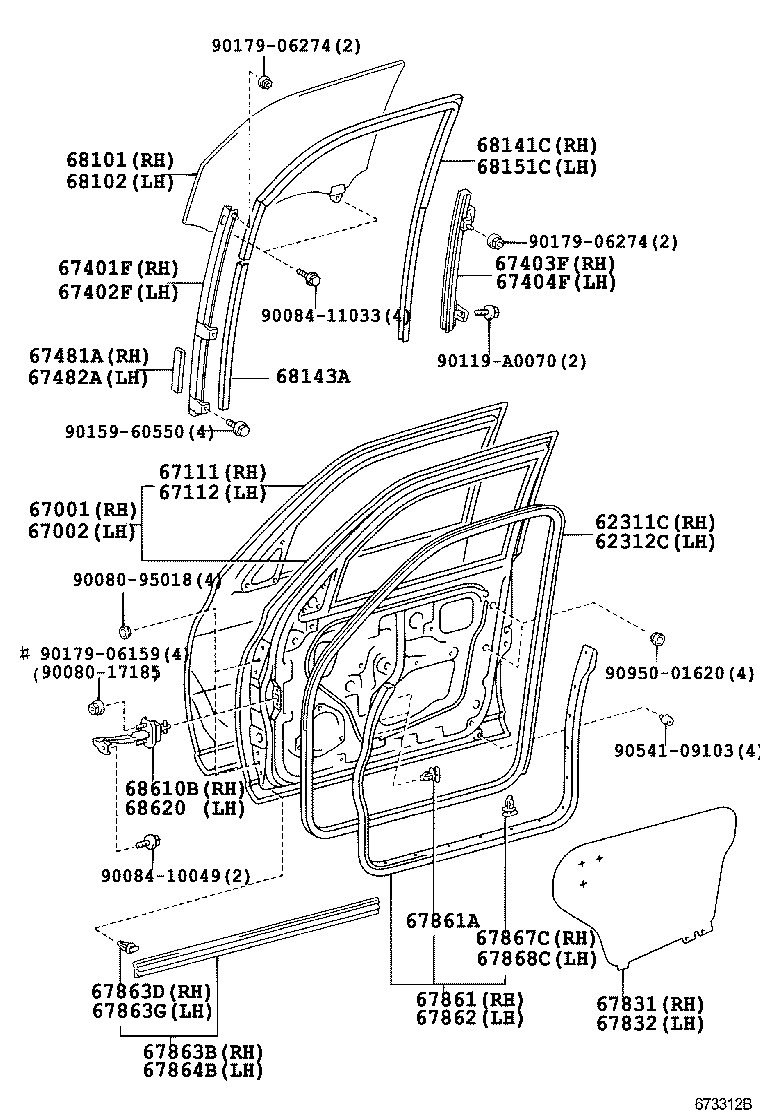

ILLUST NO. 1 OF 2(0310- )UCK31,41

Click highlighted areas on diagram

DOOR PANEL

diagram 62311C 62312C 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67481A 67482A 67831 67832 67861 67861A 67862 67863B 67863D 67863G 67864B 67867C 67868C 68101 68102 68141C 68143A 68151C 68610B 68620 9008017185 9008095018 9008410049 9008411033 90119A0070 9015960550 9017906159 9017906274 9017906274 9054109103 9095001620
Part # Description Qty Price
62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
62311-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
62311-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
62312-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
62312-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0C061

UCK31,41

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0C061

UCK31,41

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-0C030

UCK31,41

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-0C030

UCK31,41

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-0C020

UCK31,41

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-0C020

UCK31,41

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0C020

UCK31,41

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0C020

UCK31,41

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67801-0C010

UCK31,41

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67802-0C010

UCK31,41

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0C020

UCK31,41

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-0C010

UCK31,41

 6
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0C020

UCK31,41

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-0C020

UCK31,41

 1
67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-0C010

UCK31,41

 9
67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-0C010

UCK31,41

 9
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67863-0C020

UCK31,41

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

UCK31,41

 22
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

UCK31,41

 22
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-0C020

UCK31,41

*TT,T=5.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-0C020

UCK31,41

*TT,T=5.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-0C020

UCK31,41

 1
68143A - RUN, FRONT DOOR GLASS, NO.2
68143-0C020

UCK31,41

 2
68151C - RUN, FRONT DOOR GLASS, LH
68151-0C020

UCK31,41

 1
Common parts
90080-17185
90080-95018
90084-10049
90084-11033
90119-A0070
90159-60550
90179-06159
90179-06274
90541-09103
90950-01620
